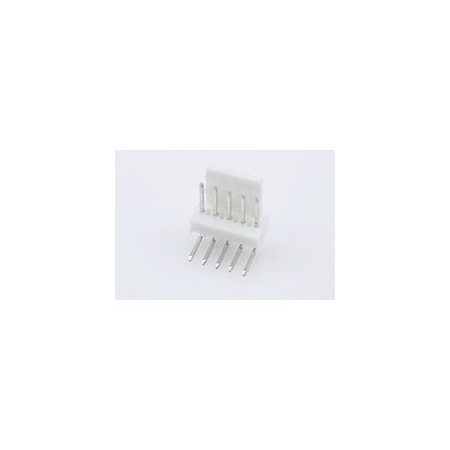

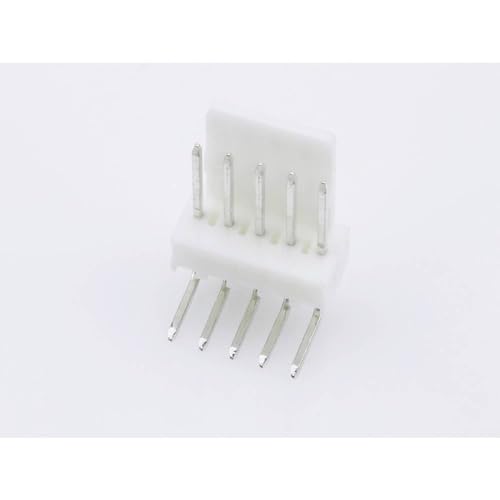

Molex / Waldom 22-05-7058 Connector Headers and PCB Receptacles

Brand: Molex / Waldom
PartNumber: 22057058
PackageQuantity: 1
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Alternate Mfr Part Numb.	1732950
Alternate Part No.	538-22-05-7058
Applications	Automotive, General Pur.
Base Product Number	002205
Brand	Molex
Category	Connectors, Interconnec.
Circuits (Loaded)	5
Circuits (maximum)	5
Color	White
Color - Resin	Natural (White)
Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	60.0?in (1.52?m)
Contact Finish Thicknes.	60.0?in (1.52?m)
Contact Length - Mating	0.264" (6.70mm)
Contact Length - Post	0.150" (3.81mm)
Contact Material	Brass
Contact Plating	Tin
Contact Shape	Square
Contact Type	Male Pin
CSA	LR19980
Current - Maximum per C.	4.0A
Current Rating	4 A
Current Rating (Amps)	-
Description	CONN HEADER R/A 5POS 2..
Detailed Description	Connector Header Throug.
Digi-Key Part Number	WM2787-ND
Durability (mating cycl.	25
Family Name	KK 254
Fastening Type	Friction Lock
Features	-
Flammability	94V-0
Housing Material	Nylon
Ingress Protection	-
Insulation Color	Natural
Insulation Height	0.228" (5.80mm)
Insulation Material	Polyamide (PA66), Nylon.
Lock to Mating Part	Yes
Manufacturer	Molex
Manufacturer Part No.	22-05-7058
Manufacturer Product Nu.	0022057058
Manufacturer Standard L.	19 Weeks
Mated Stacking Heights	-
Material - Metal	Brass
Material - Plating Mati.	Tin
Material - Plating Term.	Tin
Material - Resin	Nylon
Material Flammability R.	UL94 V-0
Max. Cycles at Max. Pro.	1
Mfr	Molex
Mounting Angle	Right
Mounting Type	Through Hole, Right Ang.
Number of Circuits	5
Number of Contacts	5
Number of Positions	5
Number of Positions Loa.	All
Number of Rows	1
Operating Temperature	-
Orientation	Right Angle
Overall Contact Length	-
Package	Bulk
Packaging	Bulk
Part # Aliases	0022057058 A-7395-5B
PC Tail Length	3.80mm
PCB Thickness - Recomme.	1.60mm
Pitch	2.54 mm, 2.54 mm (0.100.
Pitch - Mating	0.100" (2.54mm)
Pitch - Mating Interface	2.54mm
Pitch - Termination Int.	2.54mm
Plating Material	Tin
Plating min - Mating	5.080?m
Polarized to Mating Part	Yes
Primary Type	Board Mount
Process Temperature max.	235
Product Category	Headers & Wire Housings
Product Status	Active
Product Type	Headers
Row Spacing - Mating	-
Series	KK254, 7395, 7395 Serie.
Shrouding	Shrouded - 1 Wall
Special Features	Low-Halogen
Style	Board to Board or Cable
Termination	Solder
Termination Interface: .	Through Hole
Termination Style	Through Hole
Tradename	KK
Type	Right Angle Header, Pin.
Voltage - Maximum	500V
Voltage Rating	250 V, -
