FirstPower 4FRL1

mpn4FRL1
brandname: Power First
manufacturername: Power First

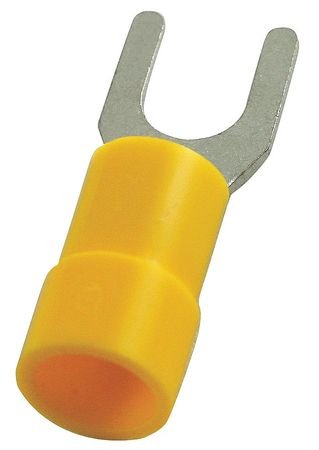

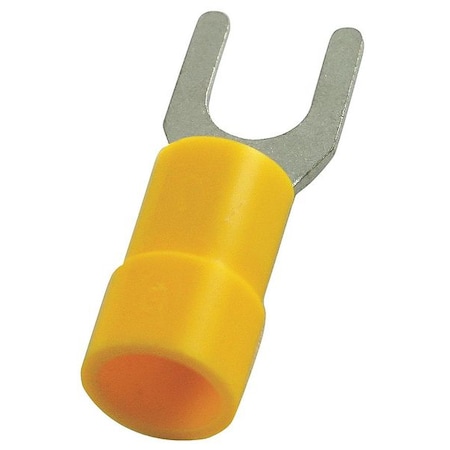

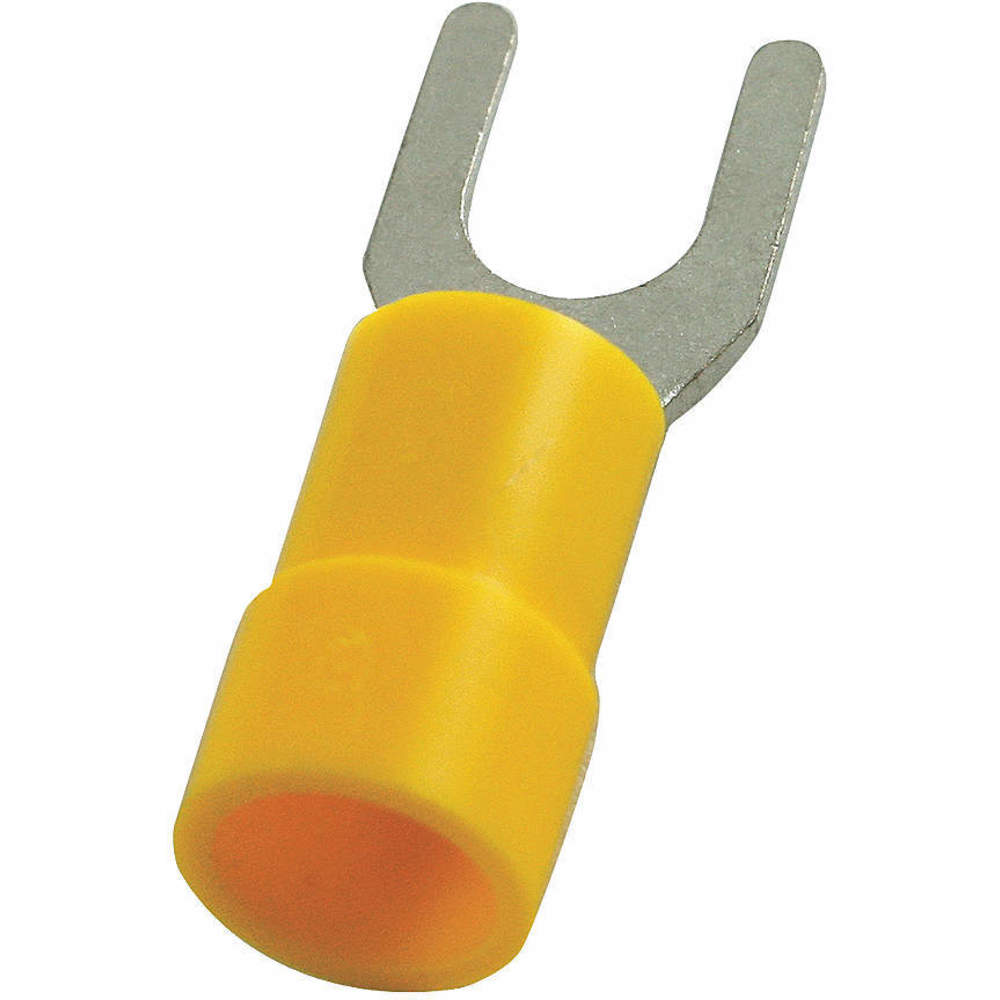

Fork Terminal,Std,#10 Stud,Yellow,PK50

Fork Terminal,Std,#10 Stud,Yellow,PK50

zoom

Brand: FirstPower
PartNumber: 4FRL1
Model: Fork Terminal
PackageQuantity: 1
Binding: Misc.
Manufacturer: Power First
Label: Power First

Attributes

Key	Value
Barrel Length	0.512 in
Barrel Style	Easy Entry
Compatible with Product.	Insulated Stranded Copp.
Connection Material	Copper
Connection Type	Crimp
Contact Finish	Tin
Contact Material	Copper
For Wire Size	10 AWG, 12 AWG
Insulation Color	Yellow
Insulation Colour	Yellow
Insulation Coverage	Partial Coverage
Insulation Material	Vinyl
Insulation Type	Vinyl
Item	Fork Terminal
Max. Temp.	221 Degrees F
Max. Voltage	600 V
Maximum Operating Tempe.	221 Degrees F
Maximum Voltage	600V
Maximum Wire Size	10 AWG
Minimum Wire Size	12 AWG
Overall Length	1.004 in
RoHS Compliant	Yes
Seam	Butted
Seam Style	Butted
Special Features	Easy Entry
Standards	UL/cUL Listed E96029, U.
Strip Length	3/8 in
Stud Size	#10
Terminal Connection	Crimp
Terminal Shape	Standard
Terminal Type	Standard
Termination Style	Crimp
Tongue Length	0.492 in, 0.00 - 0.50 i.
Tongue Thickness	0.039 in
Tongue Width	0.354 in
Tongue Width - Wire Con.	0.35 in
UL 94 Flammability Rati.	V-0
Wire Range	12 to 10 AWG
Wire Size Range	12 AWG - 10 AWG

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	grainger.ca	GGE4FRL1	7.24354388	1	50		POWER FIRST	0.19	7.24354388 @ 50
	Zoro	G2269346	15.65	1	818		Power First	1.98	15.65 @ 50
	sustainablesupply.com	C1199554	29.35	1	50		Power First	0.19	29.35 @ 50
	Raptor Supplies	AD7PBA	44.336448	1	50		POWER FIRST		44.336448 @ 50
