FirstPower 4FRL2

mpn4FRL2
brandname: POWER FIRST
manufacturername: POWER FIRST

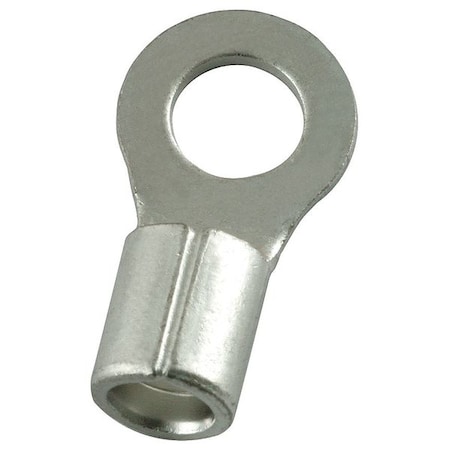

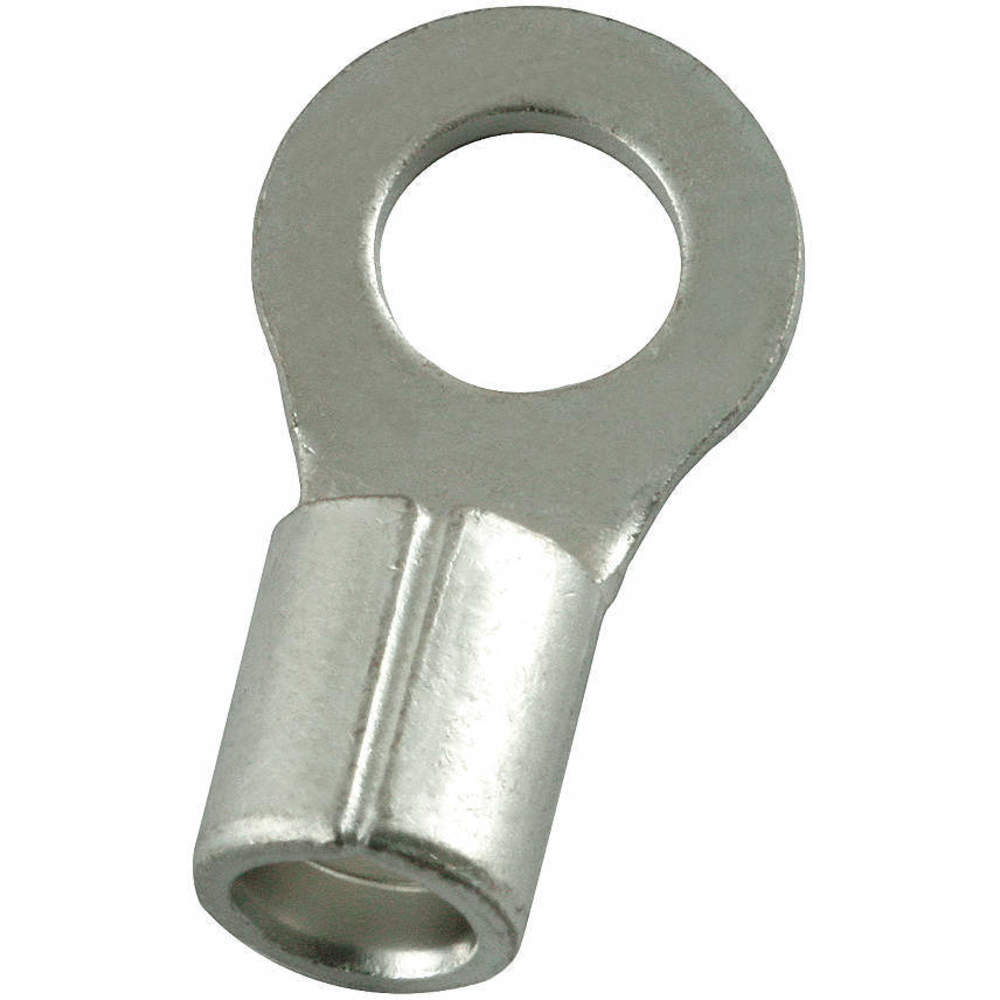

Ring Term,Bare,1/4 in,0.92 in,PK25

Ring Term,Bare,1/4 in,0.92 in,PK25

zoom

Brand: FirstPower
PartNumber: 4FRL2
PackageQuantity: 1
Binding: Misc.
Manufacturer: Power First
Label: Power First

Attributes

Key	Value
Barrel Inside Diameter	0.18 in
Barrel Length	0.34 in
Barrel Outside Diameter	0.28 in
Barrel Size	Standard
Barrel Style	Crimp
Compatible with Product.	Insulated Stranded Copp.
Connection Orientation	Straight
Connection Type	Crimp
Contact Finish	Tin
Contact Material	Copper
For Wire Size	8 AWG
For Wire Sizes	8 AWG to 8 AWG
Hole Diameter	0.25 in
Insulation Color	Bare
Insulation Colour	Bare
Insulation Coverage	None
Insulation Material	None
Insulation Type	Non-Insulated
Item	Ring Terminal
Max. Temp.	257 Degrees F
Maximum Operating Tempe.	302 Degrees F
Maximum Voltage	600V
Maximum Wire Size	8 AWG
Minimum Operating Tempe.	257 Degrees F
Minimum Wire Size	8 AWG
Overall Length	0.94 in
Ring Width Ranges	0.26 - 0.50 inches
RoHS Compliant	Yes
Seam Style	Brazed
Standards	UL/cUL/RoHS
Strip Length	1/2 in
Stud Size	1/4 in
Terminal Connection	Crimp
Terminal Shape	Ring Terminal
Terminal Type	Standard
Termination Style	Crimp
Tongue Length	0.6 in
Tongue Thickness	0.47 in
Tongue Width	0.47 in
Tongue Width - Wire Con.	0.47 in
Wire Range	8 AWG

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	grainger.ca	GGE4FRL2	8.19434974	1	25		POWER FIRST	0.15	8.19434974 @ 25
	Zoro	G2312922	12.65	1	422		Power First	3.26	12.65 @ 25
	sustainablesupply.com	C1199555	17.09	1	25		Power First	0.15	17.09 @ 25
	Raptor Supplies	AD7PBB	29.565081	1	25		POWER FIRST		29.565081 @ 25
