Schneider Electric DPE25BL

B09B2S8PKM

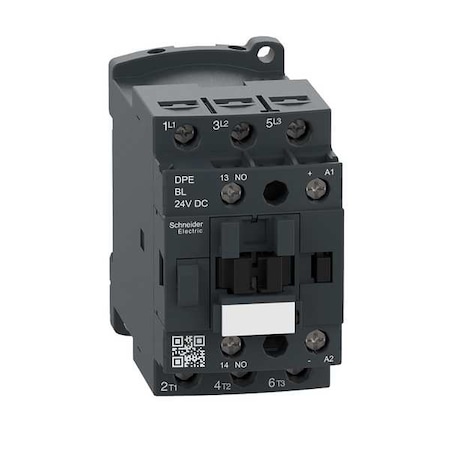

Schneider Electric - DPE25BL Easy TeSys IEC Contactor, 10HP, 480V, 24VDC Coil, Screw Clamp Terminals

Schneider Electric - DPE25BL Easy TeSys IEC Contactor, 10HP, 480V, 24VDC Coil, Screw Clamp Terminalszoom

Attributes

Key Value
ApplicationMotor Control, Resistiv.
Aux. Contact Configurat.1NO
Auxiliary Contact1 NO
BrandSchneider Electric
Catalog NumberDPE25BL
CategoryRelays
Coil Power-
Coil Power Rating10 hp at 480 VAC
Coil Resistance-
Coil Voltage24 VDC, 690 VAC, 300 VD.
Coil Volts24 V DC
ConnectionPower circuit screw cla.
Connection typeScrew Clamp
Contact Configuration3NO, 1 NO;3 NO;Mechanic.
Contact Form3PST-NO (3 Form A)
Contact Material-
Contact Rating (Current)25 A
Contact typeNon-Reversing
Continuous Current32 A
Continuous Current (A)25
Country of OriginIndonesia
Depth3.39 in
DescriptionIEC CONTACTOR, 10HP 480.
Digi-Key Part Number4008-DPE25BL-ND
Dimensions77 mm H x 45 mm W x 86 .
Enclosure NEMA Rating3R; 4
Enclosure TypeIP20
FeaturesAuxiliary Contacts, Wit.
Frame / Series / Class .TeSys
Frequency Rating25, 400 Hz
Full Load Amps-Inductive25 A
Full Load Amps-Resistive25 A
Height92 mm, 3.03 in
Horsepower, Max, 1 Phas.3
Horsepower, Max, 3 Phas.5
Horsepower, Max, 3 Phas.5
Horsepower, Max, 3 Phas.10
Horsepower, Max, 3 Phas.15
HP @ 1 Phase - 120V1 hp
HP @ 1 Phase - 240V3 hp
HP @ 3 Phase - 208V5 hp
HP @ 3 Phase - 240V5 hp
HP @ 3 Phase - 480V10 hp
HP @ 3 Phase - 575V15 hp
Hz50/60 Hz
ItemEasy TeSys
Item TypeContactor
Length85 mm
Made in USANo
ManufacturerSchneider Electric
Manufacturer Product Nu.DPE25BL
Manufacturer Standard L.3 Weeks
MfrSchneider Electric
MountingRail Plate
Mounting typePlate/Rail
Mounting TypeChassis Mount, DIN Rail
Must Operate Voltage19.2 VDC
Must Release Voltage2.4 VDC
Number of Auxiliary Con.1NO
Number of Poles3
Operate Time88.55 ms
Operating Cycles3600 Cycles/hr
Operating Temperature-40 to 60 deg C, -40?C .
PackageBox
PhaseSingle, Three
Product StatusActive
Release Time30 ms
ReversingNo
SeriesDPE, -
Single Phase Horsepower115V - 1, 230V-240V - 3
Special FeaturesOvervoltage Category II.
StandardUL;CSA
StandardsCSA, CSA C22.2 No 14, E.
Sub BrandEasy TeSys DPE;DPE
Switching Voltage690VAC, 300VDC - Max
Terminal TypeScrew Clamp
Termination StyleScrew Terminal
Three Phase Horsepower200V-208V - 5, 230V-240.
TypeEasy TeSys
Wattage2.5, 0.8 W
Weight1.08 lbs
Width1.77 in, 0 mm
Working HeightUp to 6561.68 ft

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
gordonelectricsupply.comDPE25BL40.51In Stock10SQUARE D40.5 @ 1
thumbzoomstandardelectricsupply.com239225042.751In StockSchneider Electric42.75 @ 1
us.rs-online.com7229938549.961In StockSchneider Electric1.0849.96 @ 1
thumbzoomDigi-Key1585849351.171217Schneider Electric51.17 @ 1
thumbzoomZoroG90348109558.191In Stock10Schneider Electric1.2958.19 @ 1
thumbzoomcrescentelectric.com129662260.81In StockSchneider Electric60.8 @ 1
thumbzoomNewark43AJ710579.4914SCHNEIDER ELECTRIC79.49 @ 1
