- mpnFD1CM2PCR
- brandname: US Motors (Nidec)
- manufacturername: US Motors (Nidec)

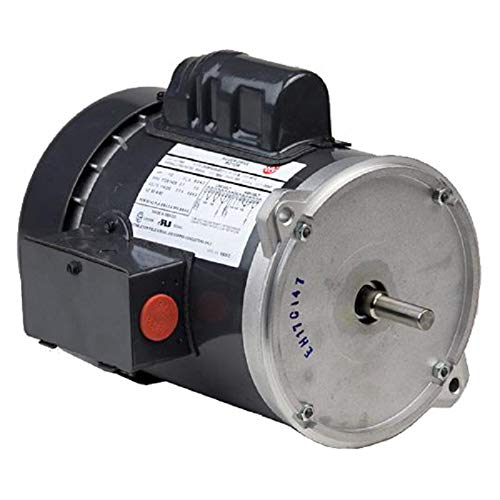

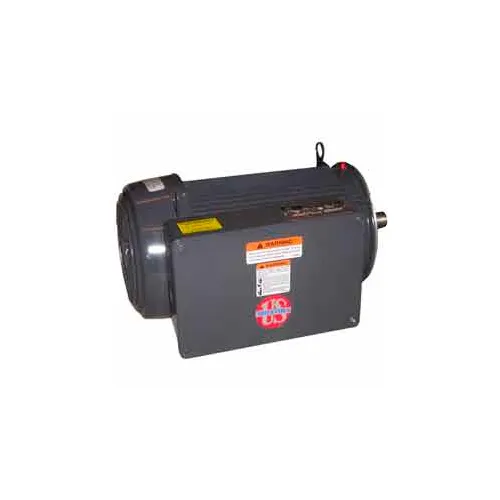

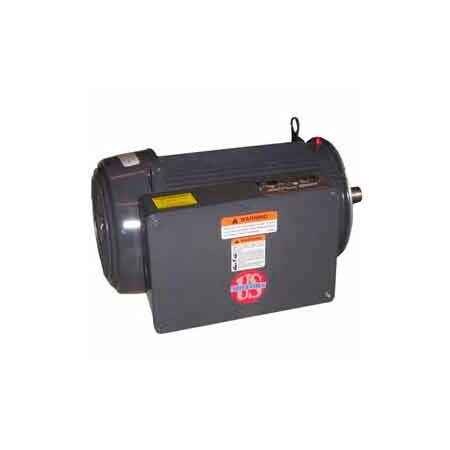

US Motors (Nidec) FD1CM2PCR - Farm Duty - Auger Drive Motor - 1 ph, 1 hp, 1800 rpm, 115/230 V, 56C Frame, TEFC Enclosure, 60 Hz
- Binding: Misc.
- Manufacturer: US Motors (Nidec)
- Label: US Motors (Nidec)
Attributes
| Key | Value |
|---|
| Amps | 14.0/7.0 |
| Bearing Type | Ball |
| Bearings | Ball |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | C-Face |
| Efficiency | 71.4% |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 48.40 |
| Family Series | US Motors Motors |
| FL Amps | 14.0/7.0 |
| FL Efficiency | 71.4 |
| Frame | 56C |
| Frequency | 60 Hz |
| Gross Weight | 37.8 lbs |
| Hertz | 60 |
| Horsepower | 1 hp |
| HP | 1 |
| Hz | 60 |
| Insulation Class | F |
| Item Number | FD1CM2PCR |
| Kilowatts | 0.8 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | C063HDS5528015B |
| Manufacturer Part Number | FD1CM2PCR |
| Maximum Ambient Tempera. | 40? C |
| Model Number | C063HDS5528015B |
| Mounting | Face, Footless |
| Mounting Type | C-Face Footless |
| NEMA Frame | 56C |
| Net Weight | 0 lbs |
| Nominal Voltage | 120 VAC, 240 VAC |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Overload Protection | Manual |
| Part Number | FD1CM2PCR |
| Phase | 1 |
| Product Type | General Purpose, Capaci. |
| Rotation | Reversible |
| RPM | 1725, 1,725 RPM |
| Service Factor | 1.15 |
| Ship Weight | 44 lbs. |
| Speed (RPM) | 1725 |
| Thermal Protection | Manual |
| Voltage | 110-120V, 230V |
| Voltage (AC) | 115 VAC, 230 VAC |
| Volts | 115, 230 |
