- mpnC21172
- brandname: Cle-Line
- manufacturername: Cle-Line

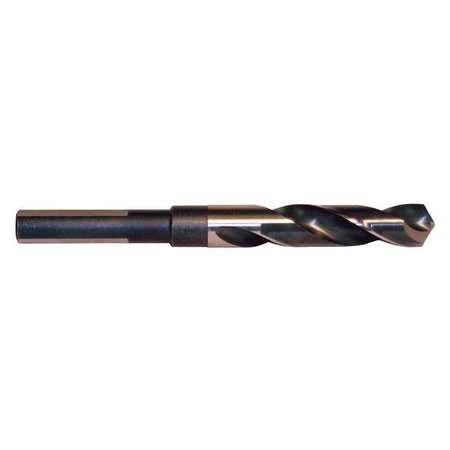

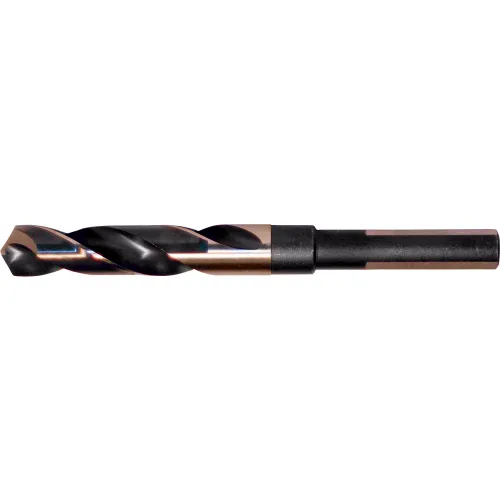

Cle-Line C21172 Silver and Deming Reduced Shank Drill, High Speed Steel, Steam Oxide Finish, Reduced Flatted Shank, 118-Degree Split Point, 14.00 mm Drill Diameter
- Brand: Cle-line
- PartNumber: C21172
- Model: C21172
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Cast Iron and Steel |
| Application | For Alloy And Carbon St. |
| Catalog Page | N/A |
| Coolant Fed | Non-Coolant Through |
| Country of Origin | USA |
| Cutting Depth | 79.38 mm |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.5512 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.5512" |
| Diameter (Metric) | 14.00mm |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | Black/Gold |
| Drill Bit Point Angle | 118 ?, 118 Degrees |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 14.00 mm |
| Drill Construction | General Purpose |
| Drill Diameter Tolerance | +0.0000 in /-0.0012 in |
| Drill Size - Decimal In. | 0.5512 in |
| Drill Size - Metric | 14 mm |
| Drill Size System | Metric |
| Drill Style | Silver & Deming Drill |
| Finish | Black/Steam Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 3 1/8 in, 3.1250", 79.3. |
| Flute Length (Metric) | 79.38mm |
| Flute Type | Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 28? |
| Item | Reduced Shank Drill Bit |
| Item? | 50AX97 |
| Material | HSS |
| Material - Machining | High Speed Steel |
| Maximum Drilling Depth | 2-3/16 in, 2 3/16 in |
| Measurement System | Metric |
| Mfr. Model? | C21172 |
| Number of Flutes | 2 |
| Overall Length | 152.40 mm, 152.4 mm, 6.. |
| Overall Length (Metric) | 152.40mm |
| Point Angle | 118 deg, 118? |
| Point Style | Split |
| Point Type | Split |
| Primary Material Applic. | Cast Iron; Steel |
| Primary Material Applic. | K, P, K; P |
| Series | 1877M |
| Shank Configuration | Reduced w/ 3 Flats |
| Shank Dia. | 12.70 mm |
| Shank End Feature | 3 Flats |
| Shank End Feature Length | 0.8750" |
| Shank Length | 2.2500", 57.15 mm |
| Shank Length (Metric) | 57.15mm |
| Shank Neck Diameter | 0.5072" |
| Shank Neck Length | 0.5000" |
| Shank Size | 0.5000", 12.7 mm |
| Shank Size (Metric) | 12.70mm |
| Shank Type | Flat/Reduced |
| Shank Type - Machining | Straight |
| Silver & Deming Drill | Yes |
| SKU | C21172 |
| Spiral Direction | Right Hand |
| Standards | Not Rated |
| Style | 1877M |
| Surface Condition | Black & Gold |
| Tool Size | 14mm, 14.00mm |
| UNSPSC | 27112801 |
| UPC | 6.97E+11 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | heavydutydepot.com | C21172 | 15.9 | 7 | In Stock | | Cle-Line | | 15.9 @ 7 |
 | Megadepot | C21172 | 18.09 | 1 | In Stock | | Cle-Line | | 18.09 @ 1 |
 | Global Industrial | WBB2544020 | 18.25 | 1 | In Stock | | Cle-Line | | 18.25 @ 1 |
 | Zoro | G4954330 | 18.25 | 1 | In Stock | | Cle-Line | 0.63 | 18.25 @ 1 |
 | usmegastore.com | C21172 | 18.82 | 1 | In Stock | | Cle-Line | | 18.82 @ 1 |
 | MRO Supply | 6124136 | 21.45 | 3 | In Stock | | Cle-Line | | 21.45 @ 3 |
 | imsbolt.com | C21172 | 35.35 | 1 | In Stock | | CLE-LINE | | 35.35 @ 1 |
| Grainger | 50AX97 | 38.05 | 1 | In Stock | | CLE-LINE | | 38.05 @ 1 |
 | National Supply Network | 57645566 | 40.3 | 1 | In Stock | | Cle-Line | | 40.3 @ 1 |
