- mpnC22872
- brandname: Cle-Line
- manufacturername: Cle-Line

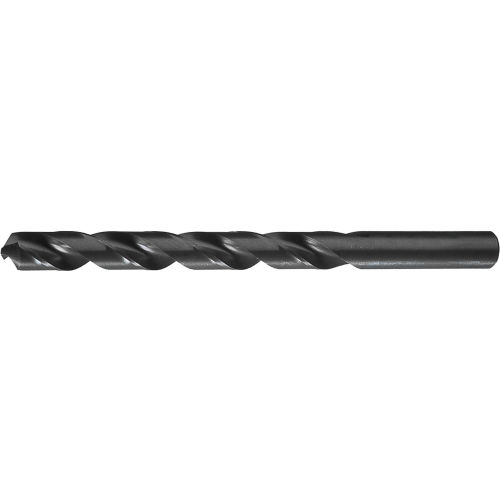

Cle-Line C22872 General Purpose Jobber Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Radial Point, 7.40 mm Drill Diameter (Pack of 6)
- Brand: Cle-line
- PartNumber: C22872
- Model: C22872
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Catalog Page | N/A |
| Coolant Fed | Non-Coolant Through |
| Country of Origin | USA |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.2913 |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.2913" |
| Diameter (Metric) | 7.40mm |
| Drill Bit Grouping | Individual |
| Drill Bit Point Angle | 118 ?, 118 Degrees |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 7.40 mm |
| Drill Construction | General Purpose |
| Drill Diameter Measurem. | Metric/Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0010 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0875mm |
| Drill Size - Decimal In. | 0.2913 in |
| Drill Size - Metric | 7.4 mm |
| Drill Size System | Metric |
| Drill Style | Jobber Drill |
| Finish | Black Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 69 mm, 69.00 mm, 2.7165" |
| Flute Length (Metric) | 69.00mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 21 Degrees to 34 Degre. |
| Item | Jobber Length Drill Bit |
| Item? | 50CR25 |
| Material | HSS |
| Material - Machining | High Speed Steel |
| Maximum Drilling Depth | 1 5/32 in, 1-5/32 in |
| Measurement System | Metric |
| Mfr. Model? | C22872 |
| Number of Flutes | 2 |
| Overall Length | 109 mm, 109.00 mm, 4.29. |
| Overall Length (Metric) | 109.00mm |
| Point Angle | 118 deg, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Primary Material Applic. | Aluminum; Brass; Bronze. |
| Primary Material Applic. | K; N; P, K, N, P |
| Series | 1899 |
| Shank Configuration | Straight |
| Shank Dia. | 7.4 mm |
| Shank Length | 1.5748", 40 mm |
| Shank Length (Metric) | 40.00mm |
| Shank Size | 7.4 mm Dia x 40 mm L, 0. |
| Shank Size (Metric) | 7.40mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
| Standards | ASME B94.11M, DIN 340, . |
| Style | 1899 |
| Surface Condition | Steam Oxide |
| Through Coolant (Yes/No) | No |
| Tool Size | 7.40mm, 7.4mm |
| UNSPSC | 27112801 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Megadepot | C22872 | 2.37 | 1 | 6 | | Cle-Line | | 2.37 @ 6 |
 | heavydutydepot.com | C22872 | 2.37 | 43 | 6 | | Cle-Line | | 2.37 @ 43 |
 | MRO Supply | 6124441 | 3.18 | 16 | 6 | | Cle-Line | | 3.18 @ 16 |
 | usmegastore.com | C22872 | 3.25 | 1 | 6 | | Cle-Line | | 3.25 @ 6 |
 | Zoro | G4939210 | 3.34 | 6 | 6 | 10 | Cle-Line | 0.06 | 3.34 @ 6 |
| Grainger | 50CR25 | 4.22 | 1 | 6 | | CLE-LINE | | 4.22 @ 6 |
| grainger.ca | GNFC22872 | 4.38386824 | 1 | 6 | | CLE-LINE | 0.056 | 4.38386824 @ 6 |
 | Global Industrial | WBB2545289 | 15.06 | 1 | 6 | | Cle-Line | | 15.06 @ 6 |
