- mpnC22910
- brandname: Cle-Line
- manufacturername: Cle-Line

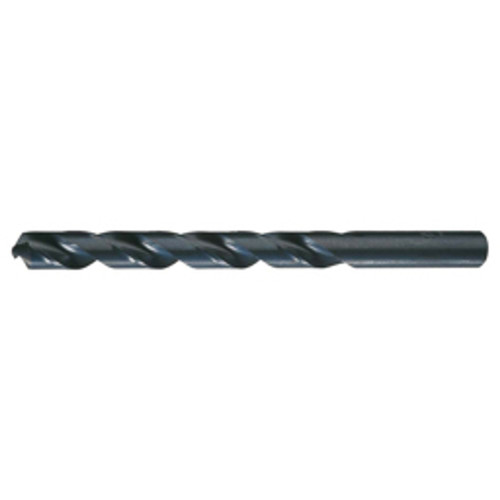

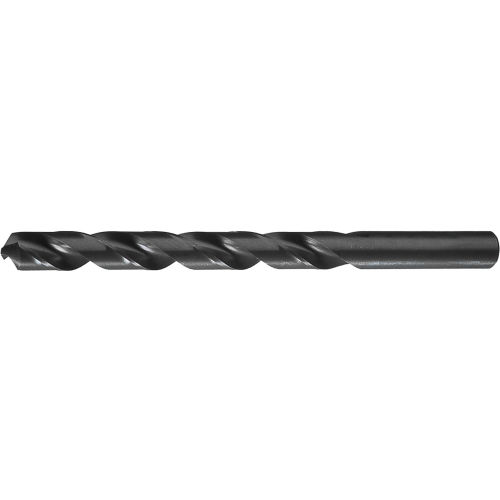

Cle-Line C22910 General Purpose Jobber Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Radial Point, 13.00 mm Drill Diameter
- Brand: Cle-line
- PartNumber: C22910
- Model: C22910
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Coolant Fed | Non-Coolant Through |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.5118 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.5118" |
| Diameter (Metric) | 13.00mm |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Size | 13.00 mm |
| Drill Construction | General Purpose |
| Drill Diameter Measurem. | Metric/Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0012 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.1538mm |
| Drill Size - Decimal In. | 0.5118 in |
| Drill Size - Metric | 13 mm |
| Drill Size System | Metric |
| Drill Style | Jobber Drill |
| Finish | Black Oxide |
| Flute Length | 101 mm, 101.00 mm, 3.97. |
| Flute Length (Metric) | 101.00mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 21 Degrees to 34 Degre. |
| Item | Jobber Length Drill Bit |
| Material | HSS |
| Maximum Drilling Depth | 2 3/64 in |
| Measurement System | Metric |
| Number of Flutes | 2 |
| Overall Length | 5.9449", 151 mm, 151.00. |
| Overall Length (Metric) | 151.00mm |
| Point Angle | 118 deg, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Series | 1899 |
| Shank Configuration | Straight |
| Shank Dia. | 13 mm |
| Shank Length | 1.9685", 50 mm |
| Shank Length (Metric) | 50.00mm |
| Shank Size | 0.5118", 13 mm Dia x 50. |
| Shank Size (Metric) | 13.00mm |
| Shank Type | Straight |
| SKU | C22910 |
| Standards | ASME B94.11M |
| Style | 1899 |
| Surface Condition | Steam Oxide |
| Through Coolant (Yes/No) | No |
| Tool Size | 13mm, 13.00mm |
| UPC | 6.97E+11 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Megadepot | C22910 | 10.63 | 1 | In Stock | | Cle-Line | | 10.63 @ 1 |
 | heavydutydepot.com | C22910 | 10.63 | 10 | In Stock | | Cle-Line | | 10.63 @ 10 |
 | Zoro | G4952468 | 11.63 | 1 | In Stock | 8 | Cle-Line | 0.25 | 11.63 @ 1 |
 | Global Industrial | WBB2545026 | 12.5 | 1 | In Stock | | Cle-Line | | 12.5 @ 1 |
 | usmegastore.com | C22910 | 12.83 | 1 | In Stock | | Cle-Line | | 12.83 @ 1 |
 | MRO Supply | 6124479 | 14.3 | 4 | In Stock | | Cle-Line | | 14.3 @ 4 |
| AmazonSC | B00J9H6Z18 | 19.16 | 1 | In Stock | | Cle-line | | 19.16 @ 1 |
 | imsbolt.com | C22910 | 23.57 | 1 | In Stock | | CLE-LINE | | 23.57 @ 1 |
