- mpnC23429
- brandname: Cle-Line
- manufacturername: Cle-Line

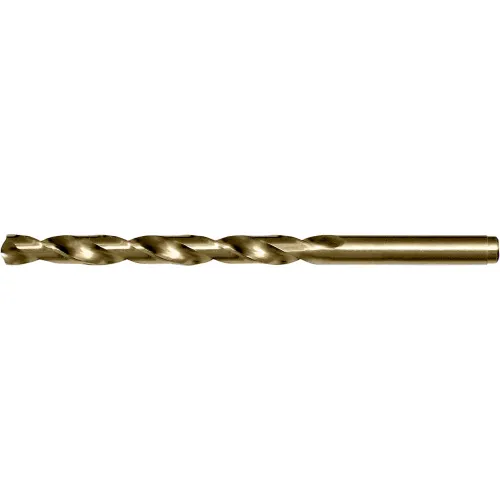

Cle-Line C23429 Cobalt Heavy Duty Jobber Length Drill, Cobalt, Gold Oxide Finish, Straight Shank, 135-Degree Split Point, Wire Size 5 (Pack of 12)
- Brand: Cle-line
- PartNumber: C23429
- Model: C23429
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Application | For Alloy, Stainless St. |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Country of Origin (subj. | United States |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | M42 HSS-Co 8% |
| Decimal Equivalent | 0.2055 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.2055" |
| Diameter (Wire/Let) | 5 |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Straw/Bronze |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Cobalt |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | #5 |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0007 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0426 in |
| Drill Size - Decimal In. | 0.2055 in |
| Drill Size - Wire | #5 |
| Drill Size System | Wire |
| Drill Style | Jobber Drill |
| Finish | Straw Oxide |
| Finish - Machining | Straw/Bronze |
| Flute Length | 2.5000", 2-1/2 in, 2 1/. |
| Flute Length (Metric) | 63.50mm |
| Flute Type | Right Spiral, Spiral |
| Grade | Heavy Duty |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 21 Degrees to 34 Degre. |
| Item | Jobber Length Drill Bit |
| List Number | 1802 |
| Material | M42 HSS-Co 8%, HSS-CO, . |
| Material - Machining | Cobalt |
| Material Grade - Machin. | High Performance |
| Maximum Drilling Depth | 13/16 in |
| Measurement System | Wire |
| Number of Flutes | 2 |
| Overall Length | 3.7500", 3 3/4 in, 3-3/. |
| Overall Length (Metric) | 95.25mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split Point, Split |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Primary Material Applic. | H, K, N, P, S |
| Series | 1802 |
| Shank Configuration | Straight |
| Shank Dia. | 13/64 in |
| Shank Length | 1.2500", 1 1/4 in |
| Shank Length (Metric) | 31.75mm |
| Shank Size | 0.2055", 0.2055 in Dia . |
| Shank Size (Metric) | 5.22mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
| Standards | ASME |
| Style | 1802 |
| Surface Condition | Straw |
| Through Coolant (Yes/No) | No |
| Tool Size | #5 |
| Type | Heavy Duty |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2543411 | 3.1611 | 12 | 12 | | Cle-Line | | 3.1611 @ 12 |
 | Megadepot | C23429 | 3.3 | 1 | 12 | | Cle-Line | | 3.3 @ 12 |
 | heavydutydepot.com | C23429 | 3.3 | 31 | 12 | | Cle-Line | | 3.3 @ 31 |
 | usmegastore.com | C23429 | 3.36 | 1 | 12 | | Cle-Line | | 3.36 @ 12 |
 | Zoro | G7681497 | 3.63 | 1 | 44 | | Cle-Line | 0.04 | 3.63 @ 12 |
 | MRO Supply | 6124854 | 3.83 | 14 | 12 | | Cle-Line | | 3.83 @ 14 |
 | sustainablesupply.com | C2765431 | 5.19 | 1 | 12 | | Cle-Line | 0.03 | 5.19 @ 12 |
| Grainger | 53PP37 | 5.2 | 12 | 12 | 15 | CLE-LINE | | 5.2 @ 12 |
