- mpnC23462
- brandname: CLE-LINE
- manufacturername: CLE-LINE

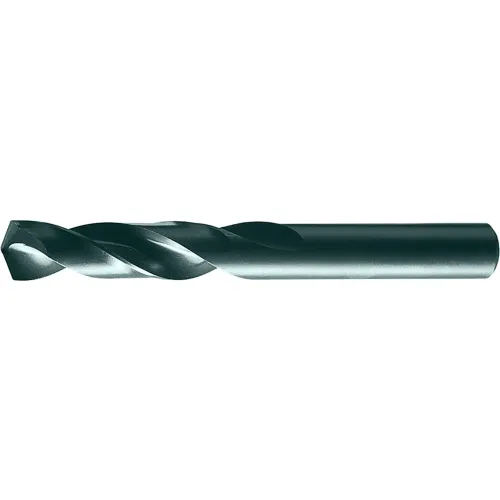

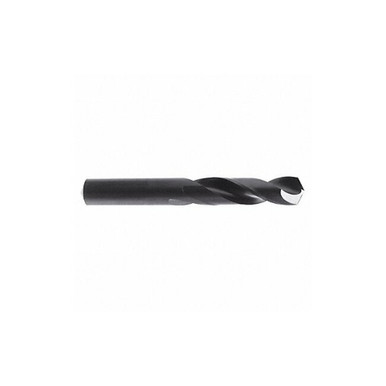

Screw Mach Drill, HSS, Blk Oxide, 3/32 in
- Brand: Cle-line
- PartNumber: C23462
- PackageQuantity: 1
- Manufacturer: CLE-LINE
- Label: CLE-LINE
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Application | For Alloy, Carbon And T. |
| Brand | Cle-Line |
| Color | Black Oxide |
| Current Stock | 397 |
| Cutting Depth | 3XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.0938 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.0938" |
| Diameter (Fraction) | 3/32" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Size | 3/32 in |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0005 in |
| Drill Length Class | Screw Machine Length |
| Drill Point Length | 0.0194 in |
| Drill Size - Decimal In. | 0.0938 in |
| Drill Size - Fraction | 3/32 in |
| Drill Size System | Fractional |
| Drill Style | Screw Machine Drill |
| Finish | Black Oxide |
| Flute Length | 0.7500", 3/4 in |
| Flute Length (Metric) | 19.05mm |
| Flute Type | Right Spiral, Spiral |
| Grade | Heavy Duty |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| International Shipping | No |
| Item | Screw Machine Drill Bit |
| Lead Time | Expected to ship in 1-2. |
| List Number | 1896 |
| Material | HSS, High Speed Steel |
| Maximum Drilling Depth | 3/4 in |
| Measurement System | Imperial |
| Mpn | C23462 |
| Number of Flutes | 2 |
| Overall Length | 1.7500", 1 3/4 in, 1-3/. |
| Overall Length (Metric) | 44.45mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split point, Split |
| Series | 1896 |
| Shank Configuration | Straight |
| Shank Dia. | 3/32 in |
| Shank Length | 1.0000", 1 in |
| Shank Length (Metric) | 25.40mm |
| Shank Size | 3/32 in Dia x 1 in L, 0. |
| Shank Size (Metric) | 2.38mm |
| Shank Type | Straight |
| Sizes Included | 3/32" |
| SKU | ZO-G1073021 |
| Style | 1896 |
| SubCategory | Machining |
| Surface Condition | Steam Oxide |
| Tool Size | 3/32" |
| Type | General Purpose Heavy D. |
| UPC | 697334234623 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2544444 | 0.8883 | 12 | 12 | | Cle-Line | | 0.8883 @ 12 |
 | Megadepot | C23462 | 1.04 | 1 | 12 | | Cle-Line | | 1.04 @ 12 |
 | usmegastore.com | C23462 | 1.04 | 1 | 12 | | Cle-Line | | 1.04 @ 12 |
 | heavydutydepot.com | C23462 | 1.07 | 94 | 12 | | Cle-Line | | 1.07 @ 94 |
 | MRO Supply | 6124861 | 1.08 | 47 | 12 | | Cle-Line | | 1.08 @ 47 |
 | Zoro | G1073021 | 1.15 | 1 | 495 | | Cle-Line | 0.01 | 1.15 @ 12 |
 | Raptor Supplies | AD6UBT | 1.519596 | 1 | 12 | | CLE-LINE | | 1.519596 @ 12 |
 | sustainablesupply.com | C1465263 | 1.72 | 1 | 12 | | Cle-Line | 0.01 | 1.72 @ 12 |
 | simsupply.com | ZO-G1073021 | 7.38 | 1 | 397 | | Cle-Line | | 7.38 @ 12 |
| AmazonSC | B00J9F2YBU | 8.95 | 1 | 12 | | Cle-line | | 8.95 @ 12 |
