- mpnC23477
- brandname: Cle-Line
- manufacturername: Cle-Line

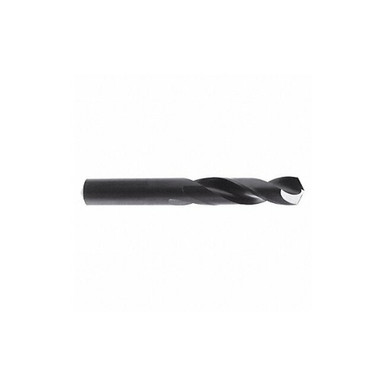

Screw Mach Drill, HSS, Blk Oxide, 21/64 In
- Brand: Cle-line
- PartNumber: C23477
- Color: Black Oxide
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: CLE-LINE
- Label: CLE-LINE
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Application | For Alloy, Carbon And T. |
| Brand | Cle-Line |
| Color | Black Oxide |
| Current Stock | 97 |
| Cutting Depth | 3XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.3281 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.3281" |
| Diameter (Fraction) | 21/64" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Size | 21/64 in |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0010 in |
| Drill Length Class | Screw Machine Length |
| Drill Point Length | 0.068 in |
| Drill Size - Decimal In. | 0.3281 in |
| Drill Size - Fraction | 21/64 in |
| Drill Size System | Fractional |
| Drill Style | Screw Machine Drill |
| Finish | Black Oxide |
| Flute Length | 1.6875", 1 11/16 in, 1-. |
| Flute Length (Metric) | 42.86mm |
| Flute Type | Right Spiral, Spiral |
| Grade | Heavy Duty |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| International Shipping | No |
| Item | Screw Machine Drill Bit |
| Lead Time | Expected to ship in 1-2. |
| List Number | 1896 |
| Material | HSS, High Speed Steel |
| Maximum Drilling Depth | 1 11/16 in |
| Measurement System | Imperial |
| Mpn | C23477 |
| Number of Flutes | 2 |
| Overall Length | 2-15/16 in, 2 15/16 in,. |
| Overall Length (Metric) | 74.61mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split point, Split |
| Series | 1896 |
| Shank Configuration | Straight |
| Shank Dia. | 21/64 in |
| Shank Length | 1.2500", 1 1/4 in |
| Shank Length (Metric) | 31.75mm |
| Shank Size | 21/64 in Dia x 1.25 in . |
| Shank Size (Metric) | 8.33mm |
| Shank Type | Straight |
| Sizes Included | 21/64" |
| SKU | ZO-G0673775 |
| Style | 1896 |
| SubCategory | Machining |
| Surface Condition | Steam Oxide |
| Tool Size | 21/64" |
| Type | General Purpose Heavy D. |
| UPC | 697334234777 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2544670 | 2.7527 | 6 | 6 | | Cle-Line | | 2.7527 @ 6 |
 | Megadepot | C23477 | 3.07 | 1 | 6 | | Cle-Line | | 3.07 @ 6 |
 | usmegastore.com | C23477 | 3.16 | 1 | 6 | | Cle-Line | | 3.16 @ 6 |
 | heavydutydepot.com | C23477 | 3.19 | 32 | 6 | | Cle-Line | | 3.19 @ 32 |
 | MRO Supply | 6124876 | 3.35 | 15 | 6 | | Cle-Line | | 3.35 @ 15 |
 | Zoro | G0673775 | 3.59 | 1 | 175 | | Cle-Line | 0.2 | 3.59 @ 6 |
 | Raptor Supplies | AE7YFG | 4.670523 | 1 | 6 | | CLE-LINE | | 4.670523 @ 6 |
 | sustainablesupply.com | C1465278 | 5.24 | 1 | 6 | | Cle-Line | 0.2 | 5.24 @ 6 |
 | simsupply.com | ZO-G0673775 | 10.17 | 1 | 97 | | Cle-Line | | 10.17 @ 6 |
