- mpnC23707
- brandname: Cle-Line
- manufacturername: Cle-Line

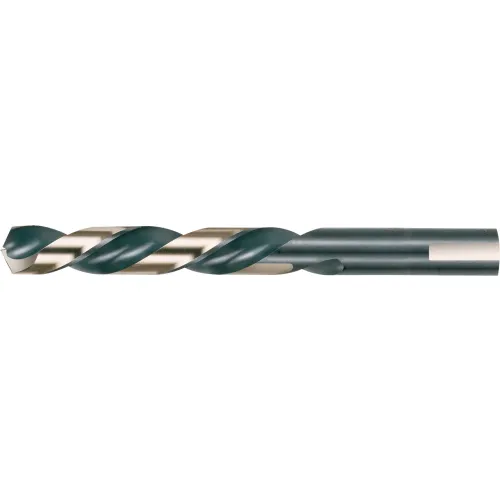

Cle-line C23707 Heavy Duty Mechanics Length Drill, High Speed Steel, Black and Gold Finish, Straight Flatted Shank, 135-Degree Split Point, 3/8"" Drill Diameter (Pack of 6)"
- Brand: Cle-line
- PartNumber: C23707
- Model: C23707
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Steel/Cast Iron |
| Application | For Use On Alloy, Stain. |
| Coolant Fed | Non-Coolant Through |
| Cutting Depth | 2-11/16 in |
| Cutting Direction | Left Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.3750 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.3750" |
| Diameter (Fraction) | 3/8" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black/Gold |
| Drill Bit Grouping | Individual |
| Drill Bit Point Angle | 135 Degrees, 135 Degre. |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 3/8 in |
| Drill Construction | Heavy-Duty |
| Drill Diameter Tolerance | +0.0000 in /-0.0010 in |
| Drill Length Class | Mechanics Length |
| Drill Point Length | 0.0777 in |
| Drill Size - Decimal In. | 0.375 in |
| Drill Size - Fraction | 3/8 in |
| Drill Size System | Fractional |
| Drill Style | Mechanics Length Drill |
| Finish | Black/Gold |
| Finish - Machining | Black Oxide |
| Flute Length | 2-11/16 in, 2 11/16 in,. |
| Flute Length (Metric) | 68.26mm |
| Flute Type | Spiral |
| Hand of Cut | Left |
| Hand of Spiral | Left |
| Helix Angle | 28 Degrees |
| Item | Mechanics Length Drill . |
| Material | HSS |
| Material - Machining | High Speed Steel |
| Maximum Drilling Depth | 1 1/2 in |
| Measurement System | Fractional Inch, Imperi. |
| Number of Flutes | 2 |
| Overall Length | 4 1/4 in, 4-1/4 in, 4.2. |
| Overall Length (Metric) | 107.95mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split |
| Primary Material Applic. | Cast Iron, Steel |
| Primary Material Applic. | K, P |
| Series | 1875L |
| Shank Configuration | Straight w/ 3 Flats |
| Shank Dia. | 3/8 in |
| Shank End Feature | 3 Flats |
| Shank End Feature Length | 0.8750" |
| Shank Length | 1.5625", 1 9/16 in |
| Shank Length (Metric) | 39.69mm |
| Shank Size | 3/8 in, 0.3750" |
| Shank Size (Metric) | 9.52mm |
| Shank Type | Straight Flatted |
| Shank Type - Machining | Straight with Three Fla. |
| Spiral Direction | Left Hand |
| Standards | ASME B94.11M |
| Style | 1875L |
| Surface Condition | Black & Gold |
| Tool Size | 3/8" |
| Type | Heavy Duty |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2545493 | 8.1 | 6 | 6 | | Cle-Line | | 8.1 @ 6 |
 | usmegastore.com | C23707 | 8.81 | 1 | 6 | | Cle-Line | | 8.81 @ 6 |
 | heavydutydepot.com | C23707 | 8.81 | 12 | 6 | | Cle-Line | | 8.81 @ 12 |
 | MRO Supply | 6125022 | 9.53 | 4 | 6 | | Cle-Line | | 9.53 @ 6 |
| grainger.ca | GNFC23707 | 11.76531526 | 1 | 6 | | CLE-LINE | 0.22 | 11.76531526 @ 6 |
 | Zoro | G4940875 | 53.94 | 1 | 6 | | Cle-Line | 0.65 | 53.94 @ 6 |
| AmazonSC | B00J9FMU78 | 55.53 | 1 | 6 | | Cle-line | | 55.53 @ 6 |
