- mpn26Q40R56
- brandname: Dodge
- manufacturername: Dodge

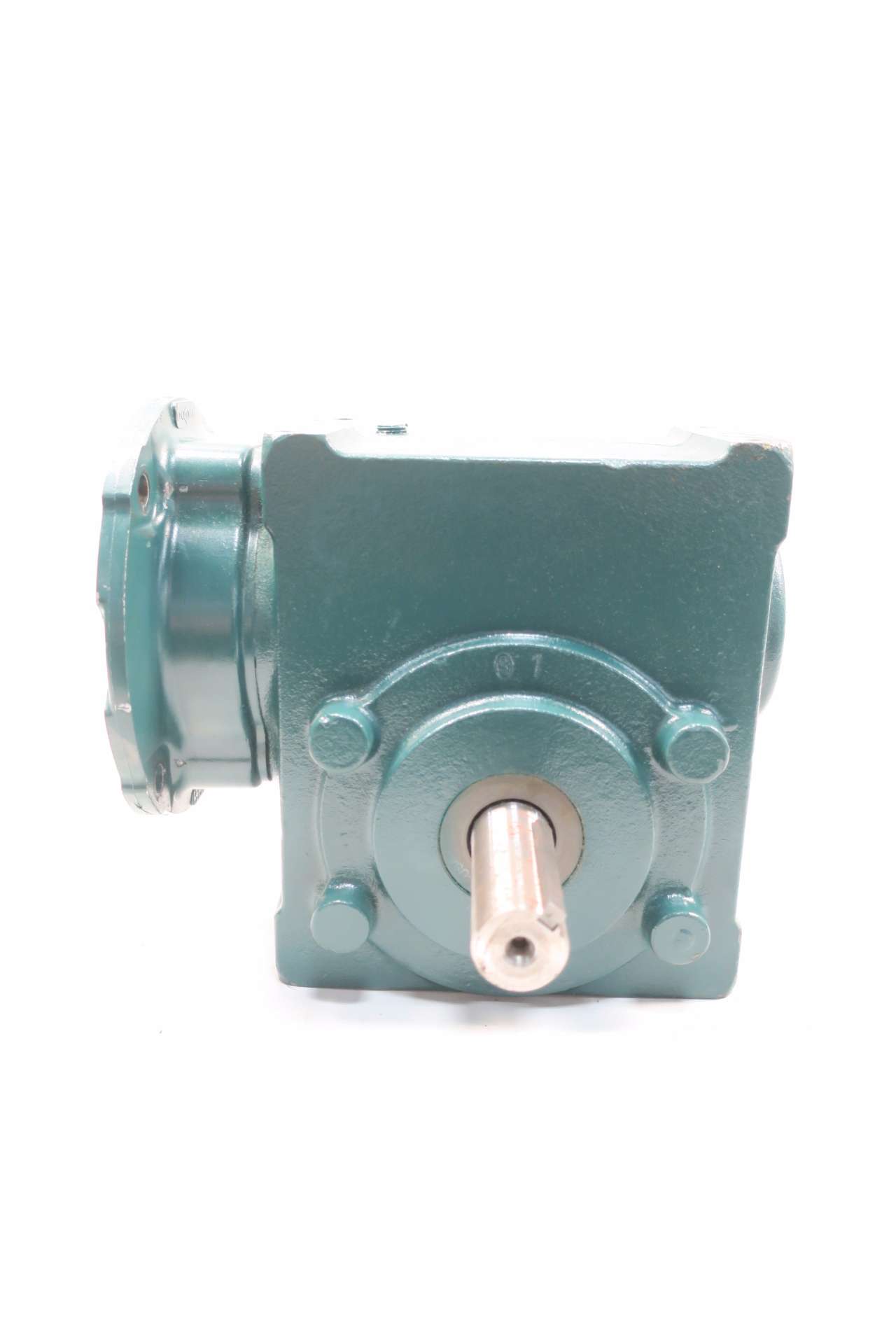

26Q40R56 Worm Gear Speed Reducer ; Right Angle 56C 40:1 Ratio
- Brand: Dodge
- PartNumber: 26Q40R56
- Model: 26Q40R56
- PackageQuantity: 1
- Manufacturer: Dodge
- Label: Dodge
Attributes
| Key | Value |
|---|
| Base to output center h. | 2.8700 in, 72.898 mm |
| Case size | 26 |
| Center distance (in) | 2.6 in, Center distance. |
| center distance: | 2.63 in |
| Center to end of shaft . | 5.6300 in, 143.002 mm |
| Finish | Green |
| Gearbox component type | Gearbox |
| Horsepower rating input | 1.5500 hp, 1.156 kW |
| Horsepower rating output | 1.1700 hp, 0.872 kW |
| housing dimensions: | 10.6 x 5.77 x 10 in |
| housing height: | 10.00 in |
| housing length: | 10.60 in |
| Housing material | Cast iron |
| housing material: | Cast iron |
| housing width: | 5.77 in |
| Input | 56C flange |
| Input flange | 56C |
| Input HP | 1.55 |
| Input style | Quill |
| input type: | C-Face Quill |
| Lubrication type | PAG, standard temperatu. |
| manufacturer reducer si. | 26 |
| Material | Class 30 grey iron |
| Max RPM | 44 rpm |
| maximum input horsepowe. | 1.550 hp @ 1750 rpm |
| maximum output rpm: | 44.000 @ 1750 rpm input |
| maximum output torque: | 1685 in-lbs @ 1750 rpm |
| Motor compatibility | NEMA motor, 56C frame |
| Mounting bolt pattern l. | 6.3800 in, 162.052 mm |
| Mounting bolt pattern w. | 3.3800 in, 85.852 mm |
| mounting type: | No Base |
| nema / iec frame size: | 56C |
| Nominal ratio | 40 |
| Output | Right side solid output. |
| Output bore/shaft diame. | 1.25 in |
| output direction: | Right Hand |
| Output horse power | 1.17 |
| Output shaft | Right (solid B) |
| Output shaft center to . | 5.4900 in, 139.446 mm |
| output size: | 1.1250 in |
| Output style | Right |
| output type: | Solid Shaft |
| Overhung load | 1610 lbf, 7161.637 N |
| overhung load capacity: | 1610 lb |
| Paint type | Standard |
| Paint/coating | Green |
| Rated torque output | 1685 in/lb, 1685.0 in/lb |
| Ratio | 40 to 1 |
| ratio: | 40:1 |
| reduction: | Single |
| Seal type | Single-lip contact |
| Shaft diameter output | 1.1250 in, 28.575 mm |
| Shaft length output | 2.6700 in, 67.818 mm |
| Suitable for washdown | No |
| Thermal horsepower rati. | 2.1400 hp, 1.596 kW |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | NRI Industrial | D570926 | 386.56 | 1 | In Stock | | DODGE | | 386.56 @ 1 |
 | Walker Industrial | 26Q40R56 | 1093.12 | 1 | In Stock | | Dodge | | 1093.12 @ 1 |
 | MRO Supply | 149484 | 1093.12 | 1 | In Stock | | Dodge | | 1093.12 @ 1 |
 | motionindustries.com | 02455294 | 1143.86 | 1 | In Stock | | Dodge | | 1143.86 @ 1 |
 | Purvis | 26Q40R56 | 1183.32 | 1 | In Stock | | Dodge | | 1183.32 @ 1 |
| AmazonTP | B081B55TJH | 1285.2 | 1 | In Stock | 3 | Dodge | | 1285.2 @ 1 |
| kirbyrisk.com | 2168835 | 1303.07 | 1 | In Stock | | Dodge | | 1303.07 @ 1 |
| factorysupplyoutlet.com | JN99QB | 1377.24 | 1 | In Stock | 25 | DODGE | | 1377.24 @ 1 |
| cbtcompany.com | 26Q40R56 | 1377.88 | 1 | In Stock | | Dodge | | 1377.88 @ 1 |
