- mpnDH363UGK
- brandname: Eaton / Cutler Hammer
- manufacturername: Eaton / Cutler Hammer

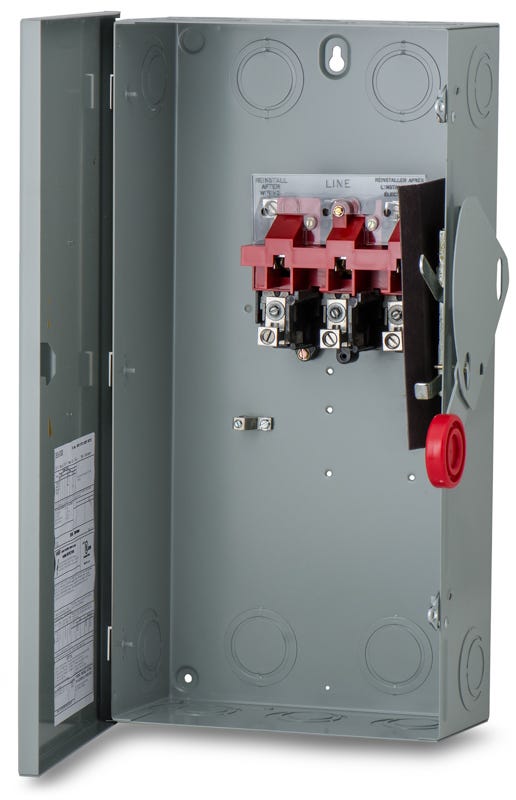

Eaton DH363UGK 100A, 3P, 600V/250VDC, HD Safety Switch, NEMA 1


- Brand: Eaton
- PartNumber: DH363UGK
- PackageQuantity: 1
- Manufacturer: Eaton Electrical
- Label: Eaton Electrical
Attributes
Key | Value |
---|
Alternate Mfr Part Numb. | DH363UGK |
amperage rating | 100 |
Amperage Rating | 100 |
Amps | 100 |
Amps AC | 100 A |
Application | Commercial / Institutio. |
Approvals | UL Listed |
Brand | Eaton, EATON CUTLER-HAM. |
Carton | 1 |
Catalog Number | DH363UGK |
Category Description | Disconnects |
Classification | Disconnects |
Contact Form | 3PST |
Country of Origin | United States |
Current Rating | 100 A |
Current Type | AC |
Depth | 10 in |
Description | 100A/3P HD NF Safety Sw. |
Dimensions | 11.13 x 21.689 x 10 ; 2. |
dimensions | 9.8900 IN X 11.8400 IN . |
Duty | Heavy |
Duty Rating | Heavy Duty |
Enclosure Height | 20 to 29 3/4 inches |
Enclosure Rating | Nema 1 |
Enclosure Type | Nema 1 |
Enclosure Width | 10 to 19 3/4 inches |
Environment | Indoor |
extra long description | ETN DH363UGK 100A/3P HD. |
Features | Eaton?s Heavy Duty Non-. |
Fuse Type | Non-Fusible |
Fusibility | Non-Fusible |
Fusible / Nonfusible | Nonfusible |
Fusible/Non Fusible | Non Fusible |
GTIN | 00782113206455 |
Gtin | 782113206455 |
Height | 22.0 in, 8.5 Inch |
Horsepower @ 480V AC | 75 hp |
Horsepower @ 600V AC | 100 hp |
Horsepower, Max, 1 Phas. | 30 |
Horsepower, Max, 1 Phas. | 60 |
Horsepower, Max, 3 Phas. | 40 |
Horsepower, Max, 3 Phas. | 75 |
HP | 60 hp @ 480V AC |
IP Rating | 20 |
IP/NEMA Rating | Nema 1 |
Item Type | Single-throw non-fused . |
Length | 22.5 in |
Long Description | Safety Switch, 100 A, 6. |
Made in USA | yes |
Manufacturer | Eaton Cutler Hammer, Ea. |
Manufacturers Part Numb. | DH363UGK |
Material | Painted Steel (Enclosur. |
Material of Construction | Steel |
Maximum Current | 100 A |
media | yes |
Metallic / Non-Metallic | Metallic |
Mounting | Surface |
Mounting Type | Panel Mount |
Mpn | DH363UGK |
NEMA Enclosure Type | 1 |
nema rating | Nema 1 |
Number of Phases | 1;3 |
Number of Poles | 3 |
Number of Wires | 3, Three-wire |
Operation | Safety |
Overall Height | 21.69 in;550.9 mm |
Overall Length | 11.13 in;282.7 mm |
Overall Width | 10 in;254 mm |
Part Number | DH363UGK |
Phase | 3 |
Poles | 3 |
Primary Type | Safety Switch |
Product Type | Safety Switch |
Protection Method | Nonfusible |
Series | K Series, DH |
Short Description | Safety Switch, 100 A, 6. |
Special Features | Triple Padlocking Capab. |
Standard | UL Listed |
standard | UL Listed,NEC 230.62 (C. |
Standards | NEMA KS-1, UL Listed, U. |
Standards Met | UL98 Listed;UL 50 Listed |
Type | Single-Throw, Non-Fusib. |
UNSPSC | N/A |
Upc | 782113206455 |
UPC | 782113206455 |
UPC Code | 782113206455 |
Voltage | 600V AC/250V DC |
Voltage Rating | 600 V, 600 V ac;240 V |
Volts AC | 600 |
Volts DC | 250 |
Weight | 22 lb;9.988 kg, 20 Pound |
Weight per each | 20 |
Width | 12.5 in, 11.8 in |
All Prices
Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
---|
  | superbreakers.com | DH363UGK | 420.0 | 1 | 3 | | Eaton | | 420.0 @ 3 |
  | turtle.com | CUH DH363UGK | 440.05 | 1 | 3 | | Eaton | | 440.05 @ 3 |
  | motorsandcontrol.com | DH363UGK | 460.04 | 1 | 3 | | Eaton Cutler Hammer | | 460.04 @ 3 |
  | sustainablesupply.com | C1189677 | 463.91 | 1 | 3 | | Eaton | 19.2 | 463.91 @ 3 |
  | Elliott Electric | DH363UGK | 510.35 | 1 | 3 | | Eaton | 20.0 | 510.35 @ 3 |
  | Zoro | G8817751 | 536.99 | 1 | 3 | | Eaton | 19.2 | 536.99 @ 3 |
| AmazonTP | B00DJUID48 | 542.43 | 1 | 3 | 5 | Eaton Electrical | | 542.43 @ 3 |
  | Walker Industrial | DH363UGK | 576.77 | 1 | 3 | | Eaton Cutler-Hammer | | 576.77 @ 3 |
| kirbyrisk.com | 525221 | 637.0 | 1 | 3 | | Cutler Hammer | | 637.0 @ 3 |
  | Platt.com | 0010667 | 646.56 | 1 | In Stock | | Eaton | | 646.56 @ 3 |
  | kempstoncontrols.co.uk | DH363UGK | 723.931065 | 1 | 3 | | Eaton | | 723.931065 @ 3 |
  | bscsource.com | DH363UGK | 939.69 | 1 | 3 | | Eaton Cutler-Hammer | | 939.69 @ 3 |
| us.rs-online.com | 70056908 | 1157.05 | 1 | 3 | | Eaton - Cutler Hammer | 20.0 | 1157.05 @ 3 |
  | National Supply Network | 438580 | 1165.22 | 1 | 3 | | Eaton Cutler-Hammer | | 1165.22 @ 3 |
  | Newark | 50K0011 | 1194.54 | 1 | 46 | | EATON CUTLER HAMMER | | 1194.54 @ 3 |
  | crescentelectric.com | 104800 | 1318.35 | 1 | 4 | | Eaton | | 1318.35 @ 3 |
| Airline Hydraulics | EATON DH363UGK | 1982.03 | 1 | 71 | | Eaton | | 1982.03 @ 3 |
