- mpn326539
- brandname: GREENFIELD THREADING
- manufacturername: GREENFIELD THREADING

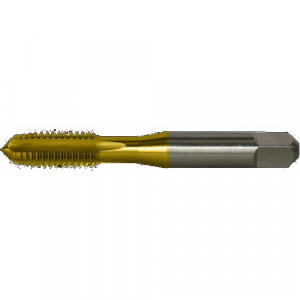

Straight Flute Hand Tap, 3/8
- Brand: Greenfield Threading
- PartNumber: 326539
- PackageQuantity: 1
- Manufacturer: GREENFIELD THREADING
- Label: GREENFIELD THREADING
Attributes
| Key | Value |
|---|
| 55% Thread Drill Size | 8.40 mm |
| 65% Thread Drill Size | P |
| 75% Thread Drill Size | 5/16 in |
| Application | Blind Hole |
| Brand | Greenfield Threading |
| Chamfer Type | Bottoming |
| Class of Fit | 2B |
| Cutting Direction | Right Hand |
| Diameter | 0.375" |
| Finish/Coating | TiN Coated |
| Flute Type | Straight |
| Hand of Cut | Right Hand Cut |
| Item | Straight Flute Hand Tap |
| Length of Cut | 2 in |
| List Number | HTGP-TN |
| Material | HSS, High-Speed Steel |
| Material Application | Cast Iron, Steel and St. |
| Measurement System | Imperial |
| Number of Flutes | 3 |
| Overall Length | 2 15/16 in, 2.9375 in, . |
| Overall Length (Metric) | 74.61mm |
| Package Quantity | 6 per case |
| Pitch Diameter Limit | H3 |
| Product Type | Straight Flute Hand Tap |
| Series | HTGP-TN |
| Shank Configuration | Straight with Square, S. |
| Shank Dia. | Shank Dia. 0.5900" |
| Shank Diameter | 0.381 in |
| Shank End | Square |
| Shank Length | 1 11/16 in |
| Shank Size | 0.381", 0.381 in |
| Shank Size (Metric) | 9.68mm |
| Shank Square Length | 0.4375" |
| Shank Square Length (Me. | 11.11mm |
| Shank Square Width | 0.286" |
| Shank Square Width (Met. | 7.26mm |
| Square Size | 0.2860 in |
| Standards | USCTI Table 302A |
| Style | HTGP-TN |
| Surface Condition | TiN |
| Surface Finish | TiN |
| Tap Chamfer | Bottoming |
| Tap Construction | Bottoming, Standard |
| Tap Dimension Type | Inch |
| Tap Finish | TiN |
| Tap Length Standard | USCTI |
| Tap Limit | H3 |
| Tap Material | High Speed Steel |
| Tap Size | 3/8" |
| Tap Style | Straight Flute (Hand) |
| Tap Thread Size | 3/8"-16 |
| Tap Thread Type | UNC |
| Thread | 3/8-16 |
| Thread Creation | Thread Cutting |
| Thread Direction | Right Hand |
| Thread Form | UNC |
| Thread Length | 1.25 in, 1.25", 1 1/4 i. |
| Thread Length (Metric) | 31.75mm |
| Thread Limit | H3 |
| Thread Pitch | 16 |
| Thread Size | 3/8", 3/8-16 UNC, 3/8"-. |
| Thread Standard | Ground/UNC |
| Thread Tolerance | 2B |
| Tool Size | 3/8-16 UNC |
| Type | General Purpose Standard |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Megadepot | 326539 | 10.53 | 1 | In Stock | | Greenfield Threading | | 10.53 @ 1 |
 | heavydutydepot.com | 326539 | 10.53 | 10 | In Stock | | Greenfield Threading | | 10.53 @ 10 |
 | usmegastore.com | 326539 | 10.57 | 1 | In Stock | | Greenfield Threading | | 10.57 @ 1 |
 | MRO Supply | 6108223 | 10.98 | 4 | In Stock | | Greenfield Threading | | 10.98 @ 4 |
 | Zoro | G1824048 | 10.99 | 1 | 24 | | Greenfield Threading | 0.08 | 10.99 @ 1 |
 | rshughes.com | 933672-65397 | 12.11 | 6 | In Stock | | Greenfield Industries | | 12.11 @ 6 |
| motionindustries.com | 05619991 | 15.73 | 1 | In Stock | | Greenfield Industries | | 15.73 @ 1 |
 | sustainablesupply.com | C2782708 | 17.55 | 1 | In Stock | | Greenfield Threading | 0.08 | 17.55 @ 1 |
