Marathon GT3006

mpnGT3006
brandname: MARATHON
manufacturername: MARATHON

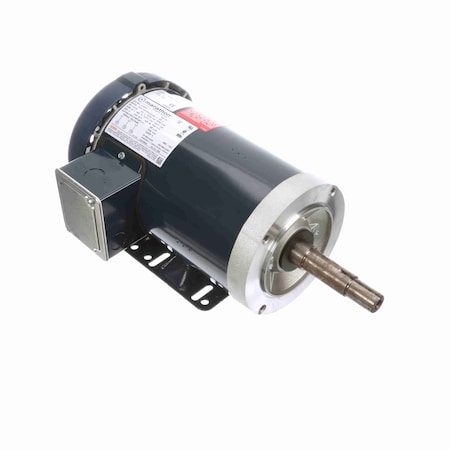

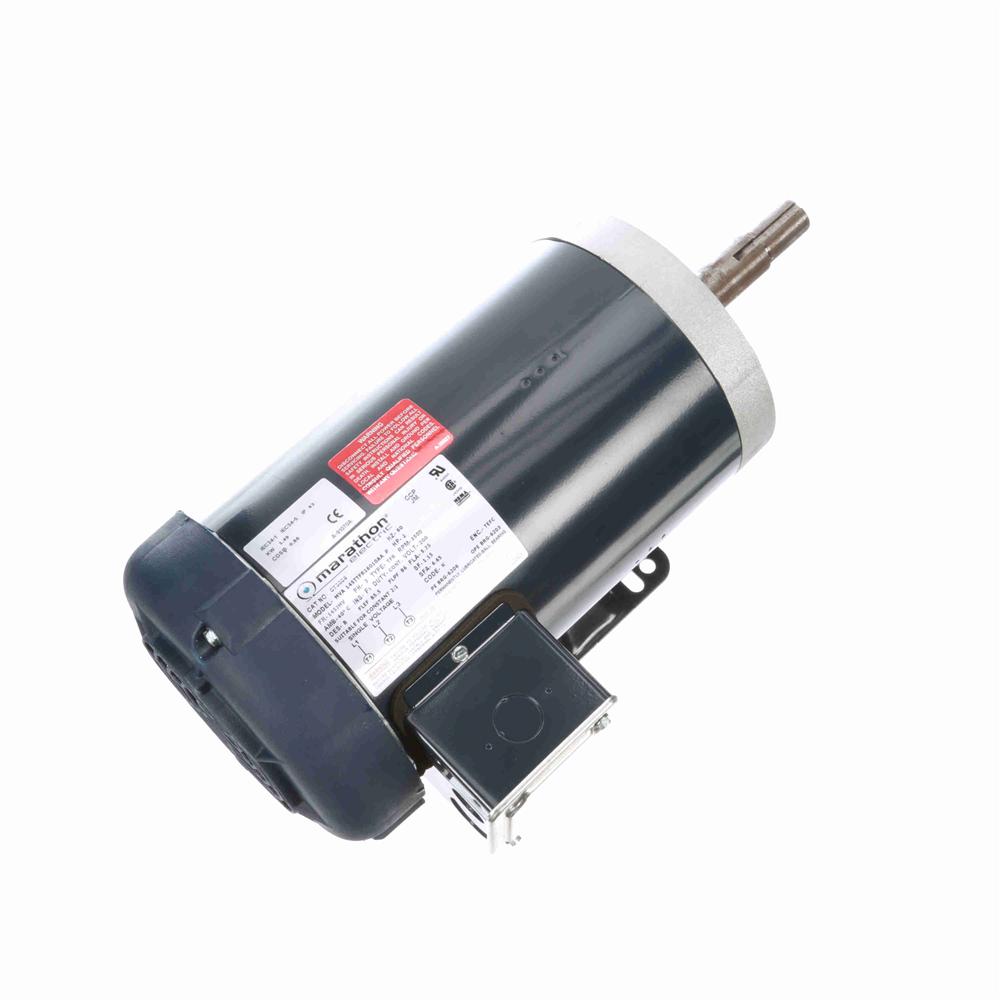

2 hp 3600 RPM 145JM Frame 200V TEFC Marathon Close Coupled Pump Motor # GT3006

2 hp 3600 RPM 145JM Frame 200V TEFC Marathon Close Coupled Pump Motor # GT3006

zoom

Brand: Marathon
PartNumber: GT3006
PackageQuantity: 1
Manufacturer: Marathon
Label: Marathon

Attributes

Key	Value
Amps	5.75
Approvals	CE, CSA, UR
Bearing Type	Ball
Bearings	Ball
Composition	Rolled Steel
Country of Origin (subj.	United States
Duty Cycle	Continuous
Efficiency	0.855
Efficiency %	85.5 %
Enclosure	Totally Enclosed Fan Co.
Enclosure Material	Steel
Enclosure Type	TEFC (Totally Enclosed .
Family Series	Marathon Electric Motors
Frame	145JMV
Frequency	60 Hz
Gross Weight	0 lbs
Horsepower	2 hp
HP	2
Hz	60
Insulation Class	F
Item Number	GT3006
Kilowatts	1.5 kW
Manufacturer	Marathon Electric
Manufacturer Model #	145TTFR16010
Manufacturer Part Number	145TTFR16010
Maximum Ambient Tempera.	40? C
Motor Shell Length	9.06"
Mounting	Base
Mounting Orientation	Horizontal/Vertical Sha.
Mounting Type	Rigid
NEMA Frame	145JMV
Net Weight	0 lbs
Number of Poles	2
Number of Speeds	1
Overall Length	16.5 ", 16.5"
Phase	3
Product Type	Three Phase
Rotation	Reversible
RPM	3500, 3,500 RPM
Service Factor	1.15
Shaft Diameter	0.88 ", 7/8"
Shaft Length	4.25"
Ship Weight	50 lbs.
Voltage (AC)	200 VAC
Volts	200

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Galco	GT3006-MARA	175.26	1	2		Marathon Electric		175.26 @ 2
	Zoro	G7034987	262.72	1	2	10	Marathon		262.72 @ 2
	electricmotorwholesale.com	GT3006	517.0	1	2		MARATHON		517.0 @ 2
	emotorpro.com	GT3006	594.35	1	2		Marathon	50.0	594.35 @ 2
