Woodhead / Molex 43045-0606

B09BZYSB5H

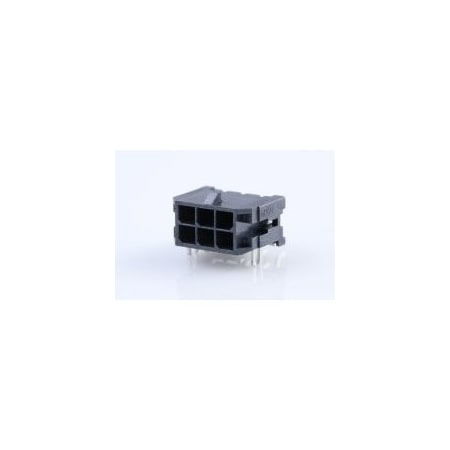

43045-0606,Conn Power HDR 6 POS 3mm Solder RA SMD 6 Terminal 1 Port Micro-Fit 3.0 T/R (1800 Items)

43045-0606,Conn Power HDR 6 POS 3mm Solder RA SMD 6 Terminal 1 Port Micro-Fit 3.0 T/R (1800 Items)zoom

Attributes

Key Value
Alternate Part No.538-43045-0606
ApplicationsAutomotive, General Pur.
Base Product Number043045
BrandMolex
CategoryConnectors, Interconnec.
ColorBlack
Connector TypeHeader
Contact FinishTin Plated
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.60.0?in (1.52?m)
Contact Finish Thicknes.-
Contact Length - Mating-
Contact Length - Post-
Contact MaterialBrass
Contact PlatingTin
Contact Plating Thickne.0.254 ?m
Contact ShapeSquare
Contact TypeMale Pin
Current Rating8.5 A, 5 A
Current Rating (Amps)8A
DescriptionCONN HEADER SMD R/A 6PO.
Detailed DescriptionConnector Header Surfac.
Digi-Key Part NumberWM10702TR-ND - Tape & R.
Fastening TypeLocking Ramp
FeaturesGlow-Wire Capable, Boar.
Flammability RatingUL 94V-0
Hole Center to Center3 mm
Housing MaterialThermoplastic
Ingress Protection-
Insulation ColorBlack
Insulation Height0.290" (7.37mm)
Insulation MaterialLiquid Crystal Polymer .
ManufacturerMolex
Manufacturer Part No.43045-0606
Manufacturer Product Nu.0430450606
Manufacturer Standard L.11 Weeks
Mated Stacking Heights-
MaterialHigh Temperature Thermo.
Material Flammability R.UL94 V-0
Max. Temp.260?C
Max. Voltage600V
MfrMolex
Mounting AngleRight
Mounting TypeSurface Mount, Right An.
Number of Contacts6
Number of Positions6
Number of Positions Loa.All
Number of Rows2
Operating Temperature-40?C ~ 105?C
Overall Contact Length-
PackageTape & Reel (TR)
Package Quantity1
PackagingReel
Part # Aliases0430450606
Pitch3 mm
Pitch - Mating0.118" (3.00mm)
Product CategoryHeaders & Wire Housings
Product StatusActive
Product TypeHeader Assemblies
Row Spacing3 mm
Row Spacing - Mating0.118" (3.00mm)
SeriesMicro-Fit 3.0 43045, 43.
ShroudingShrouded - 4 Wall
StandardsCSA Certified; UL E29179
StyleBoard to Cable/Wire
Terminal FinishTin Plated
Terminal TypeSurface Mount
TerminationSolder
Termination StyleSMD
TradenameMicro-Fit 3.0
TypePin Header
Voltage Rating600V, 600 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Avnet04304506061.25218003600Molex1.252 @ 1800
thumbzoomDigi-Key33101931.2574122708Molex1.21549 @ 2000
Onlinecomponents.com43045-06061.282001800Molex1.28 @ 1800
WaldomMOLEX 43045-06061.35180014170MOLEX1.35 @ 1800
TMEMX-43045-06061.4121800MOLEX1.41 @ 1800
thumbzoomNewark37AC11811.992001800MOLEX1.99 @ 1800
thumbzoomRadwell43045-06062.2536001800MOLEX2.25 @ 3600
RS Delivers688-2754P3.135611800Molex3.1356 @ 1800
thumbzoomswatee.com43045-06065.4811800Molex5.48 @ 1800
thumbzoomZoroG77667934302.011800Molex4302.0 @ 1800
