Ingersoll Rand 666053-344

mpn666053-344
brandname: Aro
manufacturername: Aro

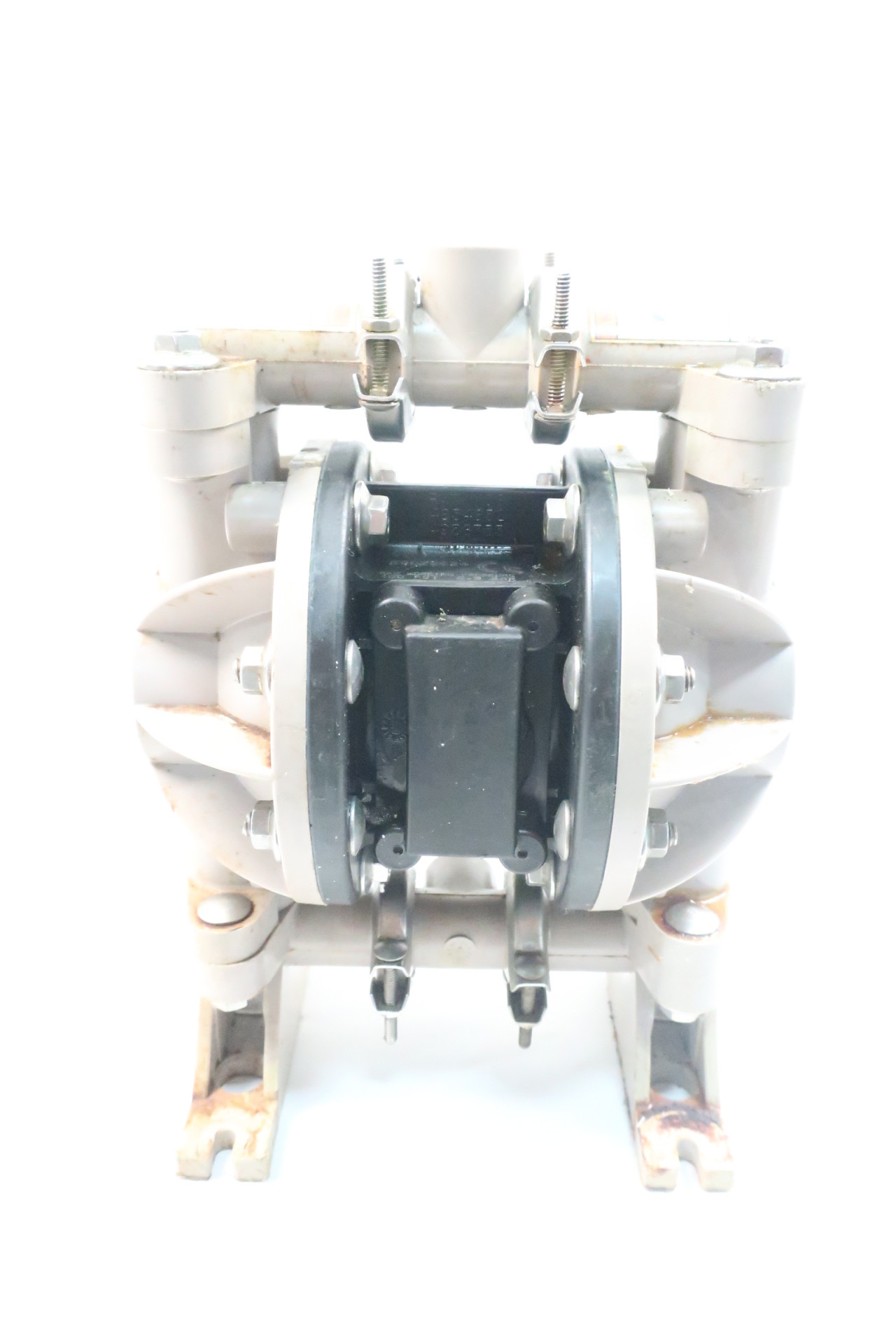

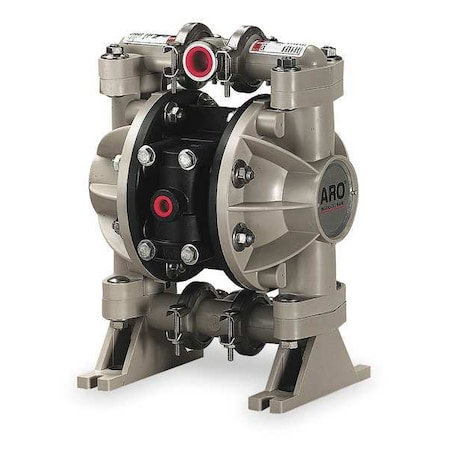

ARO 666053-344 Polypropylene PTFE Single Double Diaphragm Pump, 13 gpm, 100 psi

ARO 666053-344 Polypropylene PTFE Single Double Diaphragm Pump, 13 gpm, 100 psi

zoom

Brand: Ingersoll Rand
PartNumber: 666053-344
Model: 666053-344
PackageQuantity: 1
Binding: Misc.
Manufacturer: Ingersoll Rand
Label: Ingersoll Rand

Attributes

Key	Value
Agency Compliance	CE, RoHS, REACH
Air Inlet Size	1/4 in FNPT, 1/4" FNPT
Air inlet size	1/4" - 18 PTF
Air Intake Connection S.	1/4 in
Backing	Santoprene
Ball check	PTFE
Ball Material	PTFE
Brand	ARO
Category	Industrial-Duty Air-Ope.
Check Seat Material	Polypropylene
Connection Style	NPT
Connections	FPT
Current Stock	36
Diaphragm	PTFE
Diaphragm Material - Pu.	PTFE
Family	Pumps
Fluid Connection Size	1/2 in
Height	7 1/2 in, 7-1/2"
Housing Material - Pumps	Polypropylene
Inlet/Outlet Size	1/2", 1/2 in
International Shipping	No
Item	Double Diaphragm Pump
Item - Air Operated Pum.	Double Diaphragm Pump
Length	13 3/4 in, 13-3/4"
Length (Straight Wirewa.	13 3/4 in
Manifold Connection	Single
Manufacturers Warranty .	5 yr., 5 yr
Max pressure	100
Max solids size	0.09375
Max. Dia. Solids	3/32 in, 3/32"
Max. Flow	13 gpm
Max. Flow GPM	13
Max. Operating Pressure	100 PSI
Max. Temp - Pumps	150 Degrees F
Maximum flow gpm	13
Media Discharge Connect.	1/2 in
Media Discharge Size	1/2 in
Media Intake Connection.	1/2 in
Media Intake Size	1/2 in
Mpn	666053-344
Nominal size str	1/2' - 14"
Overall Height	11.3 in
Overall Length	8.4 in
Overall Size	8.4 in x 6.5 in x 11.3 .
Overall Width	6.5 in
Port Size Combined	1/2 in x 1/2 in
Pump Operation Type	Air Operated
Seats	Polypro
Self-Priming Dry	10 ft.
Self-Priming Wet	15 ft.
SKU	666053-344, ZO-G3006787
Solid Diameter (Maximum)	0.09 in
SubCategory	Pumps
Type	AODD
UPC	6.63023E+11, 0663023104.
Valve Type	Ball
Wet end	Polypro
Width	11-3/4", 11 3/4 in

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	NRI Industrial	D632035	228.57	1	In Stock		ARO		228.57 @ 1
	sustainablesupply.com	C1740079	882.28	1	In Stock		ARO	9.15	882.28 @ 1
	imsbolt.com	666053-344	929.0	1	In Stock		INGERSOLL RAND ARO		929.0 @ 1
	burtprocess.com	666053-344	1003.5	1	63		ARO		1003.5 @ 1
	Zoro	G3006787	1003.5	1	41		Aro	9.15	1003.5 @ 1
	sun-source.com	666053-344	1115.0	1	In Stock		Ingersoll-Rand (ARO Division)		1115.0 @ 1
	simsupply.com	ZO-G3006787	1164.09	1	36		Aro		1164.09 @ 1
	motionindustries.com	01335185	1241.54	1	In Stock		ARO		1241.54 @ 1
	grainger.ca	ARO666053-344	1418.47169804	1	In Stock		INGERSOLL RAND	9.15	1418.47169804 @ 1
	Raptor Supplies	AB9DGY	1908.076248	1	In Stock		ARO		1908.076248 @ 1
