- mpnC21175
- brandname: Cle-Line
- manufacturername: Cle-Line

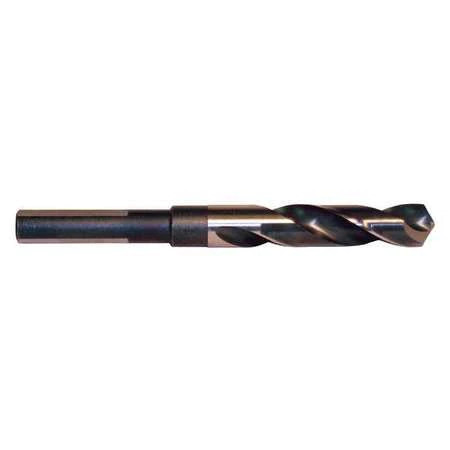

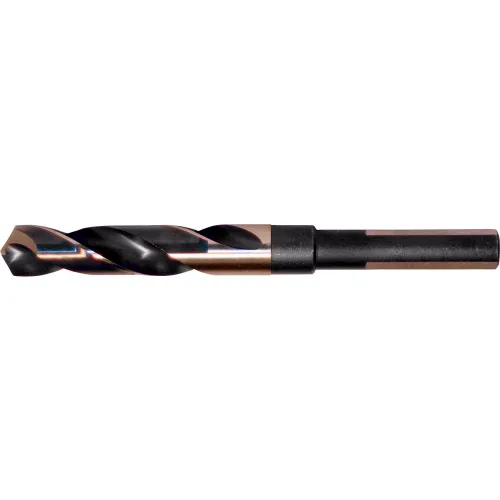

Cle-Line C21175 Silver and Deming Reduced Shank Drill, High Speed Steel, Steam Oxide Finish, Reduced Flatted Shank, 118-Degree Split Point, 15.50 mm Drill Diameter
- Brand: Cle-line
- PartNumber: C21175
- Model: C21175
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Cast Iron and Steel |
| Application | For Alloy And Carbon St. |
| Brand | Cle-Line |
| Coolant Fed | Non-Coolant Through |
| Current Stock | 3 |
| Cutting Depth | 79.38 mm |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.6102 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.6102" |
| Diameter (Metric) | 15.50mm |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | Black/Gold |
| Drill Bit Grouping | Individual |
| Drill Bit Point Angle | 118 Degrees, 118 Degre. |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 15.50 mm |
| Drill Construction | General Purpose |
| Drill Diameter Tolerance | +0.0000 in /-0.0012 in |
| Drill Size - Decimal In. | 0.6102 in |
| Drill Size - Metric | 15.5 mm |
| Drill Size System | Metric |
| Drill Style | Silver & Deming Drill |
| Finish | Black/Steam Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 3 1/8 in, 3.1250", 79.3. |
| Flute Length (Metric) | 79.38mm |
| Flute Type | Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 28 Degrees |
| International Shipping | No |
| Item | Reduced Shank Drill Bit |
| Lead Time | Expected to ship in 1-2. |
| Material | HSS |
| Material - Machining | High Speed Steel |
| Maximum Drilling Depth | 2 7/16 in |
| Measurement System | Metric |
| Mpn | C21175 |
| Number of Flutes | 2 |
| Overall Length | 152.40 mm, 152.4 mm, 6.. |
| Overall Length (Metric) | 152.40mm |
| Point Angle | 118 deg, 118? |
| Point Style | Split |
| Point Type | Split |
| Primary Material Applic. | Cast Iron, Steel |
| Primary Material Applic. | K, P |
| Series | 1877M |
| Shank Configuration | Reduced w/ 3 Flats |
| Shank Dia. | 12.70 mm |
| Shank End Feature | 3 Flats |
| Shank End Feature Length | 0.8750" |
| Shank Length | 2.2500", 57.15 mm |
| Shank Length (Metric) | 57.15mm |
| Shank Neck Diameter | 0.5662" |
| Shank Neck Length | 0.5000" |
| Shank Size | 0.5000", 12.7 mm |
| Shank Size (Metric) | 12.70mm |
| Shank Type | Flat/Reduced |
| Shank Type - Machining | Straight |
| Silver & Deming Drill | Yes |
| SKU | C21175, ZO-G4954306 |
| Spiral Direction | Right Hand |
| Standards | Not Rated |
| Style | 1877M |
| SubCategory | Machining |
| Surface Condition | Black & Gold |
| Tool Size | 15.5mm, 15.50mm |
| UPC | 697334211754, 6.97E+11 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Megadepot | C21175 | 22.53 | 1 | In Stock | | Cle-Line | | 22.53 @ 1 |
 | heavydutydepot.com | C21175 | 22.53 | 5 | In Stock | | Cle-Line | | 22.53 @ 5 |
 | Global Industrial | WBB2544080 | 22.75 | 1 | In Stock | | Cle-Line | | 22.75 @ 1 |
 | Zoro | G4954306 | 22.75 | 1 | 1 | | Cle-Line | 0.34 | 22.75 @ 1 |
 | usmegastore.com | C21175 | 23.29 | 1 | In Stock | | Cle-Line | | 23.29 @ 1 |
 | MRO Supply | 6124139 | 26.88 | 2 | In Stock | | Cle-Line | | 26.88 @ 2 |
 | simsupply.com | ZO-G4954306 | 32.9 | 1 | 3 | | Cle-Line | | 32.9 @ 1 |
| AmazonSC | B00J9MNUAC | 39.93 | 1 | In Stock | | Cle-line | | 39.93 @ 1 |
 | imsbolt.com | C21175 | 44.32 | 1 | In Stock | | CLE-LINE | | 44.32 @ 1 |
| Grainger | 50AY01 | 45.39 | 1 | In Stock | | CLE-LINE | | 45.39 @ 1 |
