- mpnC22828
- brandname: Cle-Line
- manufacturername: Cle-Line

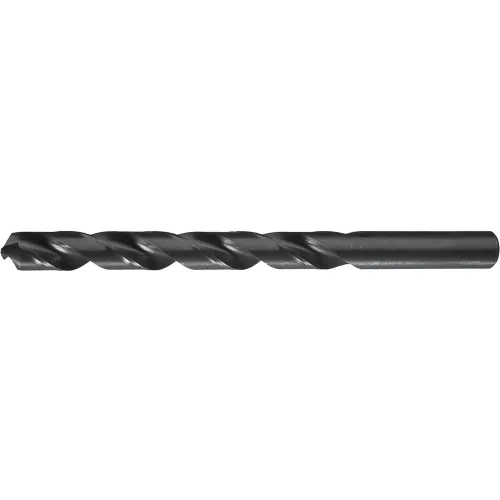

Cle-Line C22828 General Purpose Jobber Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Radial Point, 3.00 mm Drill Diameter (Pack of 12)
- Brand: Cle-line
- PartNumber: C22828
- Model: C22828
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Coolant Fed | Non-Coolant Through |
| Country of Origin (subj. | United States |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.1181 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.1181" |
| Diameter (Metric) | 3.00mm |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 3.00 mm |
| Drill Construction | General Purpose |
| Drill Diameter Measurem. | Metric/Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0007 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0355mm |
| Drill Size - Decimal In. | 0.1181 in |
| Drill Size - Metric | 3 mm |
| Drill Size System | Metric |
| Drill Style | Jobber Drill |
| Finish | Black Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 33.00 mm, 1.2992", 33 mm |
| Flute Length (Metric) | 33.00mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 21 Degrees to 34 Degre. |
| Item | Jobber Length Drill Bit |
| Material | HSS |
| Material - Machining | High Speed Steel |
| Maximum Drilling Depth | 15/32 in |
| Measurement System | Metric |
| Number of Flutes | 2 |
| Overall Length | 61 mm, 61.00 mm, 2.4016" |
| Overall Length (Metric) | 61.00mm |
| Point Angle | 118 deg, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Primary Material Applic. | Aluminum, Cast Iron, St. |
| Primary Material Applic. | K, N, P |
| Series | 1899 |
| Shank Configuration | Straight |
| Shank Dia. | 3 mm |
| Shank Length | 28 mm, 1.1024" |
| Shank Length (Metric) | 28.00mm |
| Shank Size | 0.1181", 3 mm Dia x 28 . |
| Shank Size (Metric) | 3.00mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
| Standards | ASME B94.11M, DIN 338 |
| Style | 1899 |
| Surface Condition | Steam Oxide |
| Through Coolant (Yes/No) | No |
| Tool Size | 3mm, 3.00mm |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2544964 | 0.8718 | 12 | 12 | | Cle-Line | | 0.8718 @ 12 |
 | Zoro | G4942500 | 1.02 | 12 | 12 | | Cle-Line | 0.01 | 1.02 @ 12 |
 | MRO Supply | 6124397 | 1.07 | 47 | 12 | | Cle-Line | | 1.07 @ 47 |
 | Megadepot | C22828 | 1.32 | 1 | 12 | | Cle-Line | | 1.32 @ 12 |
 | heavydutydepot.com | C22828 | 1.32 | 76 | 12 | | Cle-Line | | 1.32 @ 76 |
 | usmegastore.com | C22828 | 1.35 | 1 | 12 | | Cle-Line | | 1.35 @ 12 |
 | National Supply Network | 57606493 | 2.5225 | 1 | 12 | | Cle-Line | | 2.5225 @ 12 |
