Cle-line C22909

mpnC22909
brandname: Cle-Line
manufacturername: Cle-Line

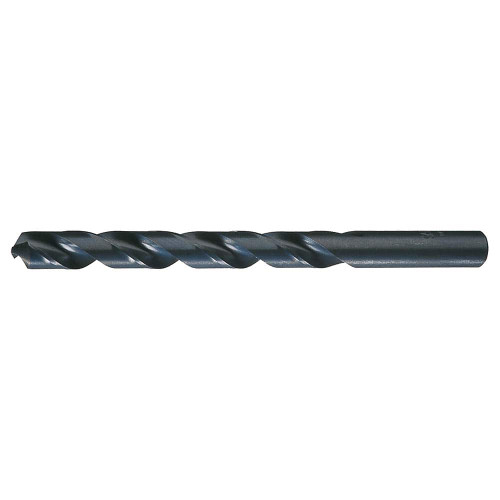

Cle-Line C22909 General Purpose Jobber Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Radial Point, 12.80 mm Drill Diameter

Cle-Line C22909 General Purpose Jobber Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Radial Point, 12.80 mm Drill Diameter

zoom

Brand: Cle-line
PartNumber: C22909
Model: C22909
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries (TEG)
Label: Greenfield Industries (TEG)

Attributes

Key	Value
Applicable Materials	Alloy Steel, Carbon Ste.
Coolant Fed	Non-Coolant Through
Cutting Depth	5XD
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	0.5039
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter	0.5039"
Diameter (Metric)	12.80mm
Drill Bit Dimension Type	Metric
Drill Bit Finish	Black Oxide
Drill Bit Grouping	Drill Bit
Drill Bit Point Type	Conventional Point
Drill Bit Size	12.80 mm
Drill Construction	General Purpose
Drill Diameter Measurem.	Metric/Imperial
Drill Diameter Tolerance	+0.0000 in/-0.0012 in
Drill Length Class	Jobber Length
Drill Size - Decimal In.	0.5039 in
Drill Size - Metric	12.8 mm
Drill Size System	Metric
Drill Style	Jobber Drill
Finish	Black Oxide
Finish - Machining	Black Oxide
Flute Length	101.00mm, 101 mm, 3.976.
Flute Length (Metric)	101.00mm
Flute Type	Right Spiral, Spiral
Hand of Cut	Right
Hand of Spiral	Right
Helix Angle	21 Degrees to 34 Degre.
Item	Black Jobber Drill,118 .
List Number	1899
Material	HSS
Material - Machining	High Speed Steel
Maximum Drilling Depth	2 31/32 in
Measurement System	Metric
Number of Flutes	2
Overall Length	5.9449", 151 mm
Overall Length (Metric)	151.00mm
Point Angle	118 deg, 118?
Point Style	Radial
Point Type	Radial
Series	1899
Shank Configuration	Straight
Shank Length	1.9685"
Shank Length (Metric)	50.00mm
Shank Size	0.5039", 12.8 mm Dia x .
Shank Size (Metric)	12.80mm
Shank Type	Straight
Shank Type - Machining	Straight
SKU	C22909
Standards	DIN 338
Style	1899
Surface Condition	Steam Oxide
Through Coolant (Yes/No)	No
Tool Size	12.8mm, 12.80mm
UPC	6.97E+11

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G4952501	12.49	1	In Stock		Cle-Line	0.25	12.49 @ 1
	Global Industrial	WBB2545025	12.5	1	In Stock		Cle-Line		12.5 @ 1
	usmegastore.com	C22909	12.83	1	In Stock		Cle-Line		12.83 @ 1
	Megadepot	C22909	12.93	1	In Stock		Cle-Line		12.93 @ 1
	heavydutydepot.com	C22909	12.93	8	In Stock		Cle-Line		12.93 @ 8
	MRO Supply	6124478	14.3	4	In Stock		Cle-Line		14.3 @ 4
	imsbolt.com	C22909	23.57	1	In Stock		CLE-LINE		23.57 @ 1
