- mpnC22930
- brandname: Cle-Line
- manufacturername: Cle-Line

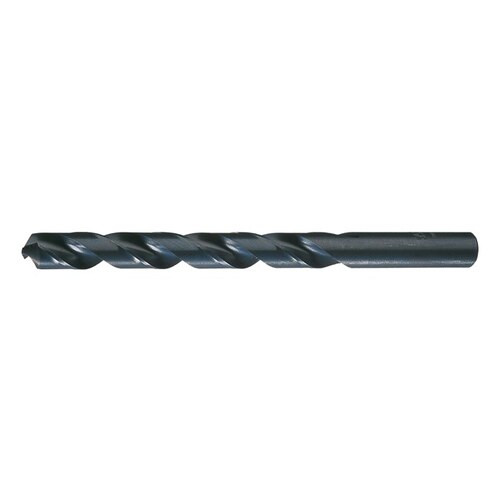

Cle-Line C22930 General Purpose Jobber Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Radial Point, 18.50 mm Drill Diameter
- Brand: Cle-line
- PartNumber: C22930
- Model: C22930
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Brand | Cle-Line |
| Catalog Page | N/A |
| Coolant Fed | Non-Coolant Through |
| Country of Origin | USA |
| Current Stock | 3 |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.7283 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.7283" |
| Diameter (Metric) | 18.50mm |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 118 ?, 118 Degrees |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 18.50 mm |
| Drill Construction | General Purpose |
| Drill Diameter Measurem. | Metric/Imperial |
| Drill Diameter Tolerance | +0.0000 in/-0.0012 in, . |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.2188mm |
| Drill Size - Decimal In. | 0.7283 in |
| Drill Size - Metric | 18.5 mm |
| Drill Size System | Metric |
| Drill Style | Jobber Drill |
| Finish | Black Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 135.00 mm, 5.3150", 135. |
| Flute Length (Metric) | 135.00mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 21 Degrees to 34 Degre. |
| International Shipping | No |
| Item | Jobber Length Drill Bit |
| Item? | 50CA03 |
| Lead Time | Expected to ship in 1-2. |
| List Number | 1899 |
| Material | HSS |
| Material - Machining | High Speed Steel |
| Maximum Drilling Depth | 3 63/64 in, 2-29/32 in |
| Measurement System | Metric |
| Mfr. Model? | C22930 |
| Mpn | C22930 |
| Number of Flutes | 2 |
| Overall Length | 7.7953", 198 mm, 198.00. |
| Overall Length (Metric) | 198.00mm |
| Point Angle | 118 deg, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Primary Material Applic. | Aluminum; Brass; Bronze. |
| Primary Material Applic. | K; N; P |
| Series | 1899 |
| Shank Configuration | Straight |
| Shank Dia. | 18.5 mm |
| Shank Length | 2.4803", 63 mm |
| Shank Length (Metric) | 63.00mm |
| Shank Size | 18.5 mm Dia x 63 mm L, . |
| Shank Size (Metric) | 18.50mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| SKU | C22930, ZO-G4952300 |
| Spiral Direction | Right Hand |
| Standards | DIN 338, ASME B94.11M |
| Style | 1899 |
| SubCategory | Machining |
| Surface Condition | Steam Oxide |
| Through Coolant (Yes/No) | No |
| Tool Size | 18.5mm, 18.50mm |
| UNSPSC | 27112801 |
| UPC | 697334229308, 6.97E+11 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Megadepot | C22930 | 36.18 | 1 | In Stock | | Cle-Line | | 36.18 @ 1 |
 | heavydutydepot.com | C22930 | 36.18 | 3 | In Stock | | Cle-Line | | 36.18 @ 3 |
 | Global Industrial | WBB2545053 | 36.95 | 1 | In Stock | | Cle-Line | | 36.95 @ 1 |
 | Zoro | G4952300 | 36.95 | 1 | In Stock | | Cle-Line | 0.63 | 36.95 @ 1 |
 | usmegastore.com | C22930 | 37.64 | 1 | In Stock | | Cle-Line | | 37.64 @ 1 |
 | MRO Supply | 6124499 | 42.9 | 2 | In Stock | | Cle-Line | | 42.9 @ 2 |
| AmazonSC | B00J9HBZ90 | 43.84 | 1 | In Stock | | Cle-line | | 43.84 @ 1 |
 | simsupply.com | ZO-G4952300 | 49.7 | 1 | 3 | | Cle-Line | | 49.7 @ 1 |
| Grainger | 50CA03 | 63.09 | 1 | In Stock | | CLE-LINE | | 63.09 @ 1 |
 | imsbolt.com | C22930 | 70.7 | 1 | In Stock | | CLE-LINE | | 70.7 @ 1 |
