- mpnC22932
- brandname: Cle-Line
- manufacturername: Cle-Line

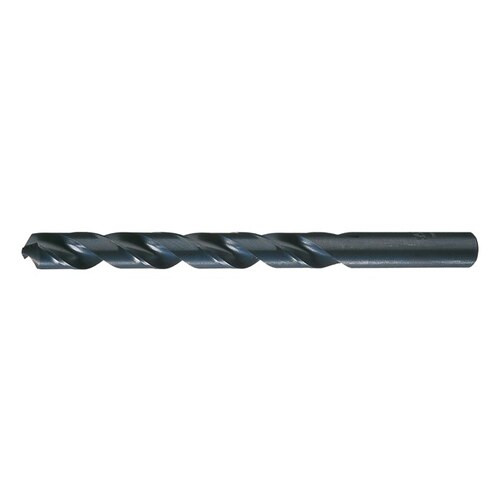

Cle-Line C22932 General Purpose Jobber Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Radial Point, 19.50 mm Drill Diameter
- Brand: Cle-line
- PartNumber: C22932
- Model: C22932
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Coolant Fed | Non-Coolant Through |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.7677 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.7677" |
| Diameter (Metric) | 19.50mm |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit, Individual |
| Drill Bit Point Angle | 118 Degrees, 118 Degre. |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 19.50 mm |
| Drill Construction | General Purpose |
| Drill Diameter Measurem. | Metric/Imperial |
| Drill Diameter Tolerance | +0.0000 in/-0.0012 in, . |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.2306mm |
| Drill Size - Decimal In. | 0.7677 in |
| Drill Size - Metric | 19.5 mm |
| Drill Size System | Metric |
| Drill Style | Jobber Drill |
| Finish | Black Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 140.00 mm, 140 mm, 5.51. |
| Flute Length (Metric) | 140.00mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 21 Degrees to 34 Degre. |
| Item | Jobber Length Drill Bit |
| List Number | 1899 |
| Material | HSS |
| Material - Machining | High Speed Steel |
| Maximum Drilling Depth | 3 1/16 in, 4 1/8 in |
| Measurement System | Metric |
| Number of Flutes | 2 |
| Overall Length | 205.00mm, 205 mm, 205.0. |
| Overall Length (Metric) | 205.00mm |
| Point Angle | 118 deg, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Primary Material Applic. | K, N, P |
| Series | 1899 |
| Shank Configuration | Straight |
| Shank Dia. | 19.5 mm |
| Shank Length | 2.5590", 65 mm |
| Shank Length (Metric) | 65.00mm |
| Shank Size | 0.7677", 19.5 mm Dia x . |
| Shank Size (Metric) | 19.50mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| SKU | C22932 |
| Spiral Direction | Right Hand |
| Standards | DIN 338, ASME B94.11M, . |
| Style | 1899 |
| Surface Condition | Steam Oxide |
| Through Coolant (Yes/No) | No |
| Tool Size | 19.50mm, 19.5mm |
| UPC | 6.97E+11 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Megadepot | C22932 | 41.0 | 1 | In Stock | | Cle-Line | | 41.0 @ 1 |
 | heavydutydepot.com | C22932 | 41.0 | 3 | In Stock | | Cle-Line | | 41.0 @ 3 |
 | Global Industrial | WBB2545070 | 41.95 | 1 | In Stock | | Cle-Line | | 41.95 @ 1 |
 | usmegastore.com | C22932 | 42.42 | 1 | In Stock | | Cle-Line | | 42.42 @ 1 |
 | Zoro | G4952276 | 43.19 | 1 | 1 | | Cle-Line | 0.63 | 43.19 @ 1 |
 | MRO Supply | 6124501 | 49.68 | 2 | In Stock | | Cle-Line | | 49.68 @ 2 |
| grainger.ca | GNFC22932 | 54.89270778 | 1 | In Stock | | CLE-LINE | 0.572 | 54.89270778 @ 1 |
 | imsbolt.com | C22932 | 81.9 | 1 | In Stock | | CLE-LINE | | 81.9 @ 1 |
