- mpnC22933
- brandname: Cle-Line
- manufacturername: Cle-Line

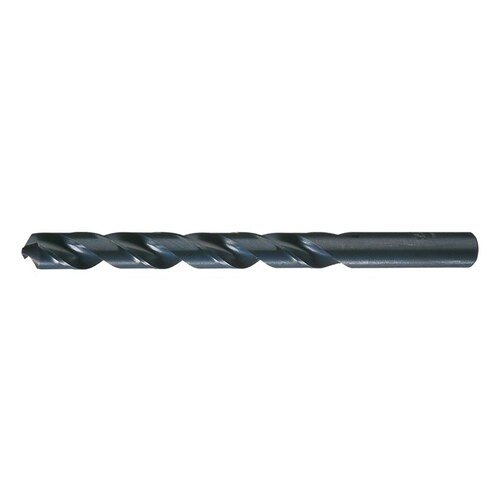

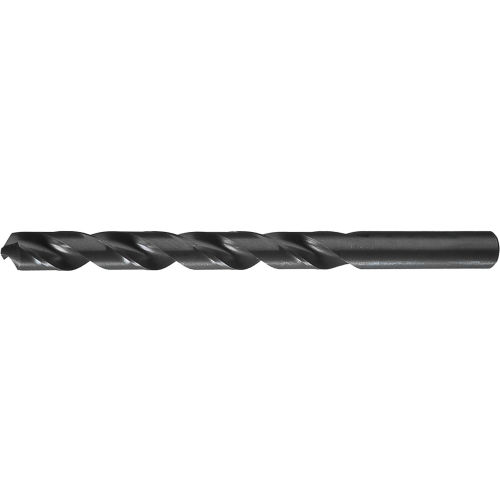

Cle-Line C22933 General Purpose Jobber Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Radial Point, 20.00 mm Drill Diameter
- Brand: Cle-line
- PartNumber: C22933
- Model: C22933
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Coolant Fed | Non-Coolant Through |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.7874 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.7874" |
| Diameter (Metric) | 20.00mm |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit, Individual |
| Drill Bit Point Angle | 118 Degrees, 118 Degre. |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 20.00 mm |
| Drill Construction | General Purpose |
| Drill Diameter Measurem. | Metric/Imperial |
| Drill Diameter Tolerance | +0.0000 in/-0.0012 in, . |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.2366mm |
| Drill Size - Decimal In. | 0.7874 in |
| Drill Size - Metric | 20 mm |
| Drill Size System | Metric |
| Drill Style | Jobber Drill |
| Finish | Black Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 140.00 mm, 140 mm, 5.51. |
| Flute Length (Metric) | 140.00mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 21 Degrees to 34 Degre. |
| Item | Jobber Length Drill Bit |
| List Number | 1899 |
| Material | HSS |
| Material - Machining | High Speed Steel |
| Maximum Drilling Depth | 3 9/64 in, 4 1/8 in |
| Measurement System | Metric |
| Number of Flutes | 2 |
| Overall Length | 205.00mm, 205 mm, 205.0. |
| Overall Length (Metric) | 205.00mm |
| Point Angle | 118 deg, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Primary Material Applic. | K, N, P |
| Series | 1899 |
| Shank Configuration | Straight |
| Shank Dia. | 20 mm |
| Shank Length | 2.5590", 65 mm |
| Shank Length (Metric) | 65.00mm |
| Shank Size | 0.7874", 20 mm Dia x 65. |
| Shank Size (Metric) | 20.00mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| SKU | C22933 |
| Spiral Direction | Right Hand |
| Standards | DIN 338, ASME B94.11M, . |
| Style | 1899 |
| Surface Condition | Steam Oxide |
| Through Coolant (Yes/No) | No |
| Tool Size | 20.00mm, 20mm |
| UPC | 6.97E+11 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Megadepot | C22933 | 39.15 | 1 | In Stock | | Cle-Line | | 39.15 @ 1 |
 | heavydutydepot.com | C22933 | 39.15 | 3 | In Stock | | Cle-Line | | 39.15 @ 3 |
 | Zoro | G4952267 | 41.19 | 1 | In Stock | 10 | Cle-Line | 0.64 | 41.19 @ 1 |
 | usmegastore.com | C22933 | 45.08 | 1 | In Stock | | Cle-Line | | 45.08 @ 1 |
 | Global Industrial | WBB2545130 | 45.95 | 1 | In Stock | | Cle-Line | | 45.95 @ 1 |
 | MRO Supply | 6124502 | 52.97 | 1 | In Stock | | Cle-Line | | 52.97 @ 1 |
| grainger.ca | GNFC22933 | 58.51447972 | 1 | In Stock | | CLE-LINE | 0.572 | 58.51447972 @ 1 |
 | imsbolt.com | C22933 | 87.3 | 1 | In Stock | | CLE-LINE | | 87.3 @ 1 |
