Cle-line C23632

mpnC23632
brandname: Cle-Line
manufacturername: Cle-Line

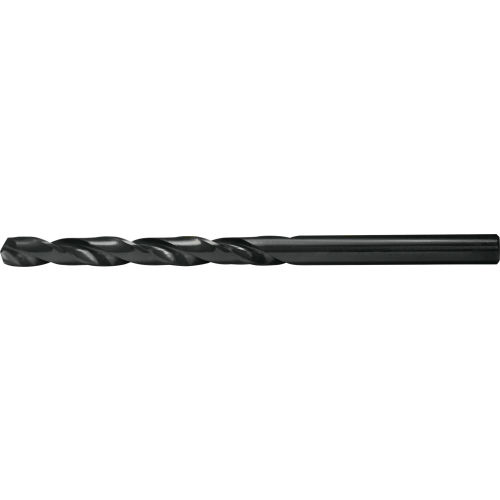

Cle-Line C23632 Aircraft Extension Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 135-Degree Split Point, 15/64" Drill Diameter (Pack of 12)

Cle-Line C23632 Aircraft Extension Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 135-Degree Split Point, 15/64" Drill Diameter (Pack of 12)

zoom

Brand: Cle-line
PartNumber: C23632
Model: C23632
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries (TEG)
Label: Greenfield Industries (TEG)

Attributes

Key	Value
Applicable Materials	Angle Iron, Cast Iron, .
Coolant Fed	Non-Coolant Through
Cutting Depth	2-5/8 in
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	0.2344
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter	0.2344"
Diameter (Fraction)	15/64"
Drill Bit Point Angle	135 Degrees
Drill Bit Size	15/64 in
Drill Construction	Heavy-Duty
Drill Diameter Tolerance	+0.0000 in /-0.0007 in
Drill Length Class	Extra Long
Drill Point Length	0.0485 in
Drill Size - Decimal In.	0.2344 in
Drill Size - Fraction	15/64 in
Drill Size System	Fractional
Drill Style	Aircraft Extension Drill
Finish	Black Oxide/Steam Oxide
Finish - Machining	Black Oxide
Flute Length	2.6250", 2 5/8 in, 2-5/.
Flute Length (Metric)	66.67mm
Flute Type	Spiral
Hand of Cut	Right
Hand of Spiral	Right
Item	Extra Long Drill Bit
Material	HSS
Material - Machining	High Speed Steel
Maximum Drilling Depth	15/16 in
Measurement System	Fractional Inch, Imperi.
Number of Flutes	2
Overall Length	6.0000", 6 in
Overall Length (Metric)	152.40mm
Point Angle	135 deg, 135?
Point Style	Split
Point Type	Split
Series	1803
Shank Configuration	Straight
Shank Dia.	15/64 in
Shank Length	3 3/8 in, 3.3750"
Shank Length (Metric)	85.72mm
Shank Size	15/64 in, 0.2344"
Shank Size (Metric)	5.95mm
Shank Type	Straight
Shank Type - Machining	Straight
Spiral Direction	Right Hand
Standards	ASME B94.11M
Style	1803
Surface Condition	Steam Oxide
Tool Size	15/64"
Type	Type B Extended Length

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Megadepot	C23632	3.24	1	12		Cle-Line		3.24 @ 12
	heavydutydepot.com	C23632	3.24	31	12		Cle-Line		3.24 @ 31
	usmegastore.com	C23632	4.04	1	12		Cle-Line		4.04 @ 12
	MRO Supply	6124959	4.37	9	12		Cle-Line		4.37 @ 12
	Zoro	G4949150	4.55	12	12	10	Cle-Line	0.01	4.55 @ 12
	Amazon	B00J9FGURE	9.5	1	12		Cle-Line		9.5 @ 12
	Global Industrial	WBB2543553	41.4	1	12		Cle-Line		41.4 @ 12
