- mpnC23701
- brandname: Cle-Line
- manufacturername: Cle-Line

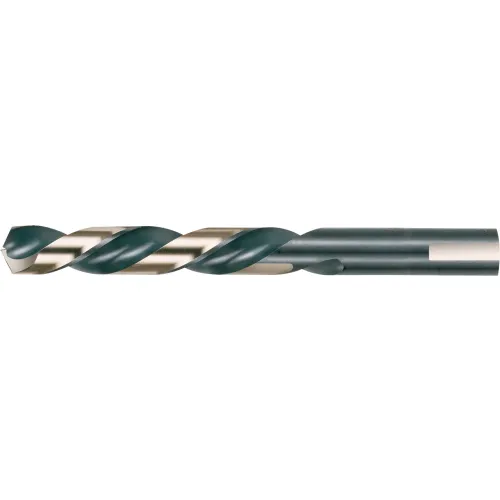

Cle-line C23701 Heavy Duty Mechanics Length Drill, High Speed Steel, Black and Gold Finish, Straight Shank, 135-Degree Split Point, 1/16" Drill Diameter (Pack of 12)
- Brand: Cle-line
- PartNumber: C23701
- Model: C23701
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Steel/Cast Iron |
| Application | For Use On Alloy, Stain. |
| Coolant Fed | Non-Coolant Through |
| Country of Origin (subj. | United States |
| Cutting Depth | 7/8 in |
| Cutting Direction | Left Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.875 in, 0.0625 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.0625" |
| Diameter (Fraction) | 1/16" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black/Gold |
| Drill Bit Grouping | Set |
| Drill Bit Point Angle | 135 Degrees, 135 Degre. |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 1/16 in |
| Drill Construction | Heavy-Duty |
| Drill Diameter Tolerance | +0.0000 in /-0.0005 in,. |
| Drill Length Class | Mechanics Length |
| Drill Point Length | 0.0129 in |
| Drill Size - Decimal In. | 0.0625 in |
| Drill Size - Fraction | 1/16 in |
| Drill Size System | Fractional |
| Drill Style | Mechanics Length Drill |
| Finish | Black/Gold |
| Finish - Machining | Black, Gold, Black Oxide |
| Flute Length | 0.8750", 7/8 in |
| Flute Length (Metric) | 22.22mm |
| Flute Type | Spiral |
| Hand of Cut | Left |
| Hand of Spiral | Left |
| Helix Angle | 28 Degrees, 28 Degrees |
| Item | Mechanics Length Drill . |
| List Number | 1875L |
| Material | HSS |
| Material - Machining | High Speed Steel |
| Maximum Drilling Depth | 1/4 in |
| Measurement System | Fractional Inch, Imperi. |
| Number of Flutes | 2 |
| Overall Length | 1 7/8 in, 1-7/8 in, 1.8. |
| Overall Length (Metric) | 47.63mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split |
| Primary Material Applic. | Cast Iron, Steel |
| Primary Material Applic. | K, P |
| Series | 1875L |
| Shank Configuration | Straight |
| Shank Dia. | 1/16 in |
| Shank Length | 1 in, 1.0000" |
| Shank Length (Metric) | 25.40mm |
| Shank Size | 1/16 in, 0.0625" |
| Shank Size (Metric) | 1.59mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Spiral Direction | Left Hand |
| Standards | ASME B94.11M |
| Surface Condition | Black & Gold |
| Tool Size | 1/16" |
| Type | Heavy Duty |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2545412 | 1.8687 | 12 | 12 | | Cle-Line | | 1.8687 @ 12 |
 | usmegastore.com | C23701 | 2.19 | 1 | 12 | | Cle-Line | | 2.19 @ 12 |
 | heavydutydepot.com | C23701 | 2.19 | 46 | 12 | | Cle-Line | | 2.19 @ 46 |
 | MRO Supply | 6125017 | 2.27 | 23 | 12 | | Cle-Line | | 2.27 @ 23 |
 | Zoro | G4947665 | 2.67 | 12 | 12 | 21 | Cle-Line | 0.17 | 2.67 @ 12 |
| grainger.ca | GNFC23701 | 3.0846755 | 1 | 12 | | CLE-LINE | 0.264 | 3.0846755 @ 12 |
