- mpnC23702
- brandname: Cle-Line
- manufacturername: Cle-Line

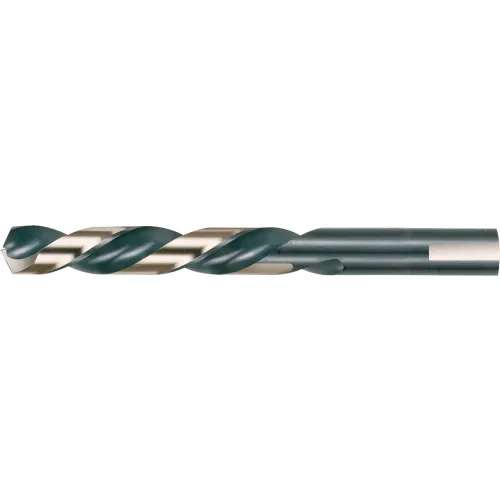

Cle-line C23702 Heavy Duty Mechanics Length Drill, High Speed Steel, Black and Gold Finish, Straight Shank, 135-Degree Split Point, 1/8 Drill Diameter (Pack of 12)
- Brand: Cle-line
- PartNumber: C23702
- Model: C23702
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Steel/Cast Iron |
| Application | For Use On Alloy, Stain. |
| Coolant Fed | Non-Coolant Through |
| Cutting Depth | 1-7/16 in |
| Cutting Direction | Left Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.1250 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.1250" |
| Diameter (Fraction) | 1/8" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black/Gold |
| Drill Bit Grouping | Individual |
| Drill Bit Point Angle | 135 Degrees, 135 Degre. |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 1/8 in |
| Drill Construction | Heavy-Duty |
| Drill Diameter Tolerance | +0.0000 in /-0.0007 in |
| Drill Length Class | Mechanics Length |
| Drill Point Length | 0.0259 in |
| Drill Size - Decimal In. | 0.125 in |
| Drill Size - Fraction | 1/8 in |
| Drill Size System | Fractional |
| Drill Style | Mechanics Length Drill |
| Finish | Black/Gold |
| Finish - Machining | Black Oxide |
| Flute Length | 1 7/16 in, 1-7/16 in, 1. |
| Flute Length (Metric) | 36.51mm |
| Flute Type | Spiral |
| Hand of Cut | Left |
| Hand of Spiral | Left |
| Helix Angle | 28 Degrees |
| Item | Mechanics Length Drill . |
| Material | HSS |
| Material - Machining | High Speed Steel |
| Maximum Drilling Depth | 1/2 in |
| Measurement System | Fractional Inch, Imperi. |
| Number of Flutes | 2 |
| Overall Length | 2.5000", 2-1/2 in, 2 1/. |
| Overall Length (Metric) | 63.50mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split |
| Primary Material Applic. | Cast Iron, Steel |
| Primary Material Applic. | K, P |
| Series | 1875L |
| Shank Configuration | Straight |
| Shank Dia. | 1/8 in |
| Shank Length | 1.0625", 1 1/16 in |
| Shank Length (Metric) | 26.99mm |
| Shank Size | 0.1250", 1/8 in |
| Shank Size (Metric) | 3.17mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Spiral Direction | Left Hand |
| Standards | ASME B94.11M |
| Style | 1875L |
| Surface Condition | Black & Gold |
| Tool Size | 1/8" |
| Type | Heavy Duty |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2545413 | 2.1824 | 12 | 12 | | Cle-Line | | 2.1824 @ 12 |
 | usmegastore.com | C23702 | 2.54 | 1 | 12 | | Cle-Line | | 2.54 @ 12 |
 | heavydutydepot.com | C23702 | 2.54 | 40 | 12 | | Cle-Line | | 2.54 @ 40 |
 | MRO Supply | 6125018 | 2.65 | 19 | 12 | | Cle-Line | | 2.65 @ 19 |
| grainger.ca | GNFC23702 | 3.63628806 | 1 | 12 | | CLE-LINE | 0.022 | 3.63628806 @ 12 |
 | Zoro | G4947647 | 35.4 | 1 | 120 | | Cle-Line | 0.1 | 35.4 @ 12 |
