- mpnC23703
- brandname: Cle-Line
- manufacturername: Cle-Line

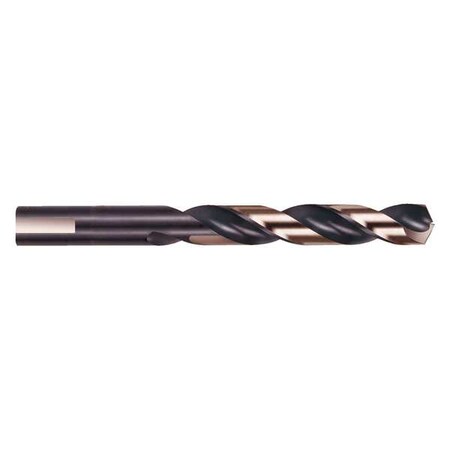

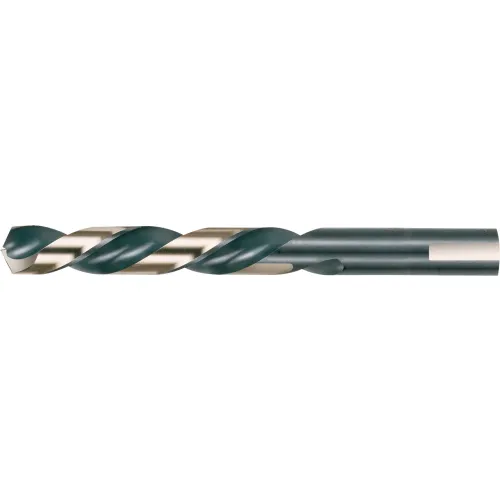

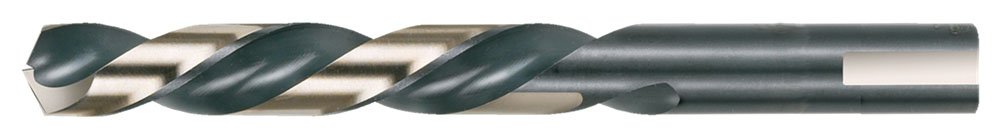

Cle-Line C23703 Heavy Duty Mechanics Length Drill, High Speed Steel, Black and Gold Finish, Straight Flatted Shank, 135-Degree Split Point, 3/16" Drill Diameter (Pack of 12)
- Brand: Cle-line
- PartNumber: C23703
- Model: C23703
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Steel/Cast Iron |
| Application | For Use On Alloy, Stain. |
| Catalog Page | N/A |
| Coolant Fed | Non-Coolant Through |
| Country of Origin | USA |
| Country of Origin (subj. | United States |
| Cutting Depth | 1-7/8 in |
| Cutting Direction | Left Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.1875 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.1875" |
| Diameter (Fraction) | 3/16" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black/Gold |
| Drill Bit Grouping | Individual |
| Drill Bit Point Angle | 135 Degrees, 135 Degre. |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 3/16 in |
| Drill Construction | Heavy-Duty |
| Drill Diameter Tolerance | +0.0000 in /-0.0007 in |
| Drill Length Class | Mechanics Length |
| Drill Point Length | 0.0388 in |
| Drill Size - Decimal In. | 0.1875 in |
| Drill Size - Fraction | 3/16 in |
| Drill Size System | Fractional |
| Drill Style | Mechanics Length Drill |
| Finish | Black/Gold |
| Finish - Machining | Black Oxide |
| Flute Length | 1 7/8 in, 1-7/8 in, 1.8. |
| Flute Length (Metric) | 47.63mm |
| Flute Type | Spiral |
| Hand of Cut | Left |
| Hand of Spiral | Left |
| Helix Angle | 28 Degrees, 28 ? |
| Item | Mechanics Length Drill . |
| Item? | 50CF74 |
| Material | HSS |
| Material - Machining | High Speed Steel |
| Maximum Drilling Depth | 3/4 in |
| Measurement System | Fractional Inch, Imperi. |
| Mfr. Model? | C23703 |
| Number of Flutes | 2 |
| Overall Length | 3.0000", 3 in |
| Overall Length (Metric) | 76.20mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split |
| Primary Material Applic. | Cast Iron, Steel, Cast . |
| Primary Material Applic. | K, P, K; P |
| Series | 1875L |
| Shank Configuration | Straight w/ 3 Flats |
| Shank Dia. | 3/16 in |
| Shank End Feature | 3 Flats |
| Shank End Feature Length | 0.7500" |
| Shank Length | 1.1250", 1 1/8 in, 1-1/. |
| Shank Length (Metric) | 28.57mm |
| Shank Size | 3/16 in, 0.1875" |
| Shank Size (Metric) | 4.76mm |
| Shank Type | Straight Flatted |
| Shank Type - Machining | Straight with Three Fla. |
| Spiral Direction | Left Hand |
| Standards | ASME B94.11M |
| Style | 1875L |
| Surface Condition | Black & Gold |
| Tool Size | 3/16" |
| Type | Heavy Duty |
| UNSPSC | 27112801 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2545414 | 2.94 | 12 | 12 | | Cle-Line | | 2.94 @ 12 |
 | usmegastore.com | C23703 | 3.43 | 1 | 12 | | Cle-Line | | 3.43 @ 12 |
 | heavydutydepot.com | C23703 | 3.43 | 30 | 12 | | Cle-Line | | 3.43 @ 30 |
 | Zoro | G4947638 | 3.58 | 12 | 156 | | Cle-Line | 0.24 | 3.58 @ 12 |
 | MRO Supply | 6125019 | 3.58 | 14 | 12 | | Cle-Line | | 3.58 @ 14 |
| grainger.ca | GNFC23703 | 4.3911263 | 1 | 12 | | CLE-LINE | 0.022 | 4.3911263 @ 12 |
| Grainger | 50CF74 | 5.65 | 1 | 12 | | CLE-LINE | | 5.65 @ 12 |
 | Amazon | B00J9FM7ZS | 57.84 | 1 | 12 | | Cle-line | | 57.84 @ 12 |
