- mpn328935
- brandname: GREENFIELD THREADING
- manufacturername: GREENFIELD THREADING

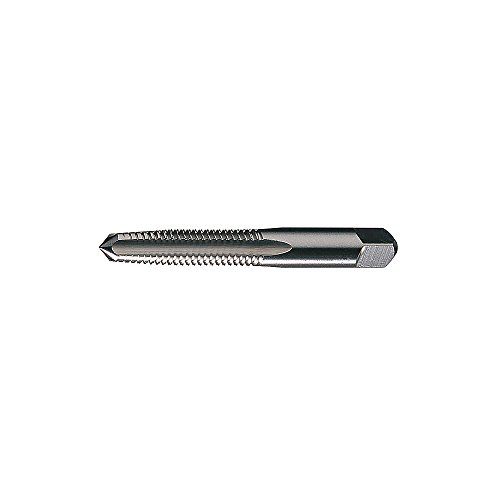

Hand Tap, Taper, M20x2.50, Bright, 4 Flt
- Brand: Greenfield Threading
- PartNumber: 328935
- PackageQuantity: 1
- Manufacturer: Greenfield Threading
- Label: Greenfield Threading
Attributes
| Key | Value |
|---|
| 55% Thread Drill Size | 18.20mm, 18.20 mm |
| 65% Thread Drill Size | 45/64", 45/64 in |
| 75% Thread Drill Size | 17.50mm, 17.50 mm |
| Application | Blind Hole |
| Brand | Greenfield Threading |
| Chamfer Type | Tapered |
| Class of Fit | 6H |
| Cutting Direction | Right Hand |
| Diameter | 0.7874" |
| Extended Neck | Yes |
| Finish/Coating | Bright |
| Flute Type | Straight |
| Hand of Cut | Right Hand Cut |
| Item | Hand Tap, Straight Flut. |
| Length of Cut | 2 in |
| List Number | HTGP |
| Material | HSS, High-Speed Steel |
| Material Application | Cast Iron, Steel, Stain. |
| Measurement System | Metric |
| Number of Flutes | 4 |
| Number of Pieces | 1 |
| Overall Length | 113.54mm, 4.47 in, 4.47. |
| Overall Length (Metric) | 113.54mm |
| Package Quantity | 1 per case |
| Pitch Diameter Limit | D7 |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Primary Material Applic. | K, M, N, P |
| Product Type | Straight Flute Hand Tap |
| Series | HTGP |
| Shank Configuration | Straight with Square, S. |
| Shank Dia. | 16.56mm |
| Shank Diameter | 16.56 mm |
| Shank End | Square |
| Shank Length | 2.4690", 2 15/32 in |
| Shank Size | 0.652 in, 0.652" |
| Shank Size (Metric) | 16.56mm |
| Shank Square Length | 0.6875" |
| Shank Square Length (Me. | 17.46mm |
| Shank Square Width | 0.489" |
| Shank Square Width (Met. | 12.42mm |
| Shank Type - Machining | Straight |
| Spiral Direction | Neutral |
| Square Size | 12.42mm, 12.42 mm |
| Standards | USCTI Table 302A |
| Style | HTGP |
| Surface Condition | Bright |
| Surface Finish | Bright |
| Tap Chamfer | Taper |
| Tap Construction | Taper, Standard |
| Tap Dimension Type | Metric |
| Tap Finish | Bright |
| Tap Grouping | Tap |
| Tap Length Standard | USCTI |
| Tap Limit | D7 |
| Tap Material | High Speed Steel |
| Tap Neck Length | 0.79 in, 0.79" |
| Tap Shank Standard | USCTI |
| Tap Size | M20 |
| Tap Style | Straight Flute (Hand) |
| Tap Thread Size | M20-2.50 |
| Tap Thread Type | Metric Coarse |
| Thread | M20x2.5 |
| Thread Creation | Thread Cutting |
| Thread Direction | Right Hand |
| Thread Form | Metric |
| Thread Length | 1.22", 1.22 in, 30.99mm. |
| Thread Length (Metric) | 30.99mm |
| Thread Limit | D7 |
| Thread Limit / Class of. | D7 / 6H |
| Thread Pitch | 2,50 mm, 2.5 |
| Thread Size | M20x2.5, M20 |
| Thread Standard | Ground/Coarse, Metric C. |
| Thread Tolerance | 6H |
| Tool Size | M20x2.5 |
| Type | General Purpose Standard |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Megadepot | 328935 | 55.92 | 1 | In Stock | | Greenfield Threading | | 55.92 @ 1 |
 | MRO Supply | 6108312 | 61.03 | 1 | In Stock | | Greenfield Threading | | 61.03 @ 1 |
 | usmegastore.com | 328935 | 61.04 | 1 | In Stock | | Greenfield Threading | | 61.04 @ 1 |
 | heavydutydepot.com | 328935 | 61.04 | 2 | In Stock | | Greenfield Threading | | 61.04 @ 2 |
 | Zoro | G4349414 | 63.99 | 1 | 44 | | Greenfield Threading | 0.3 | 63.99 @ 1 |
 | rshughes.com | 662355-14893 | 68.13 | 1 | In Stock | 35 | Greenfield Threading | | 68.13 @ 1 |
 | sustainablesupply.com | C2887476 | 97.51 | 1 | In Stock | | Greenfield Tap | 0.3 | 97.51 @ 1 |
| grainger.ca | GNF328935 | 101.89590434 | 1 | In Stock | | GREENFIELD THREADING | 0.374 | 101.89590434 @ 1 |
