Martin Tool C20132

mpnC20132
brandname: Martin Sprocket
manufacturername: Martin Sprocket

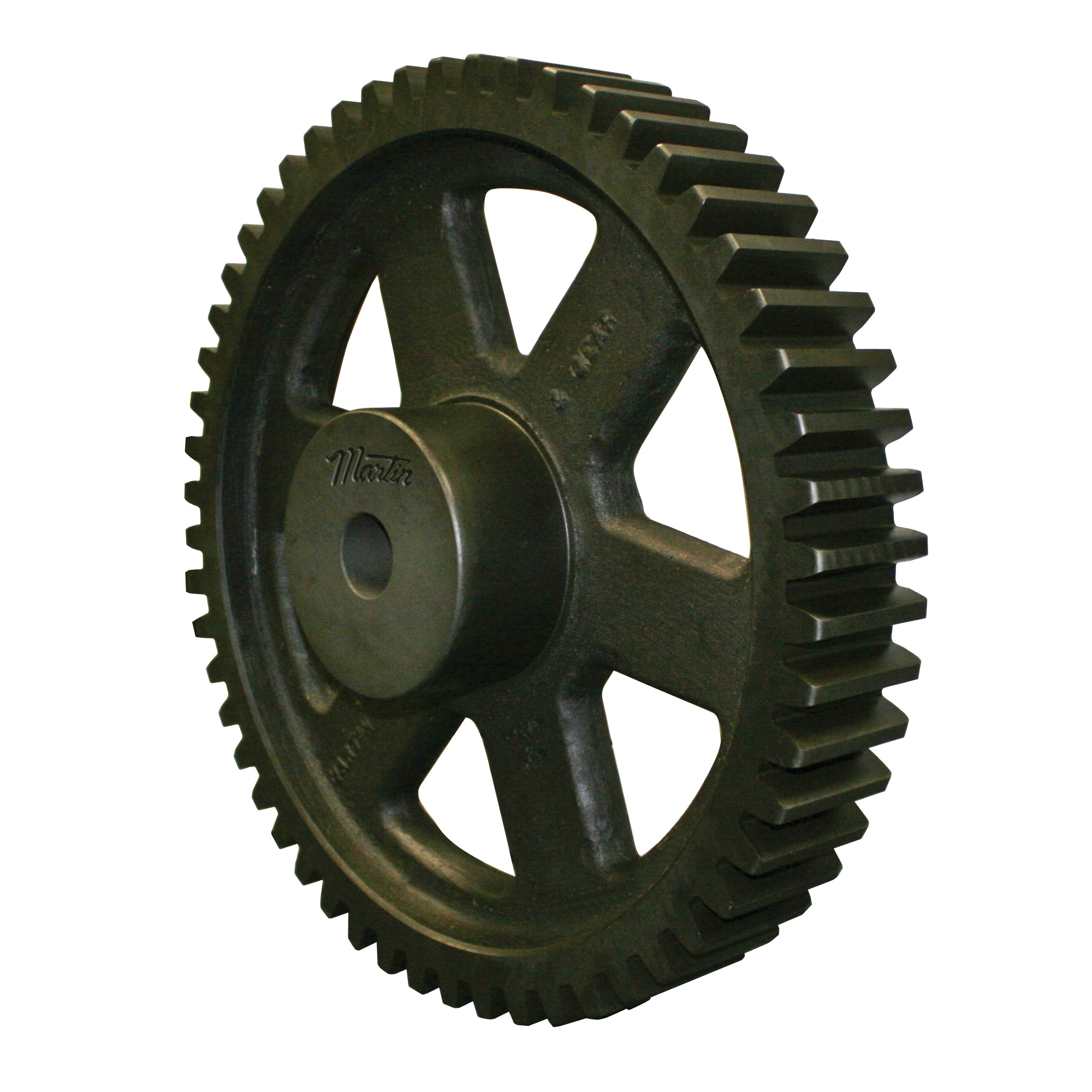

MARTIN - C20132 - Gear SPUR 14 1/2 DEG CAST - UPC: 697950058375 - Factory New

MARTIN - C20132 - Gear SPUR 14 1/2 DEG CAST - UPC: 697950058375 - Factory New

zoom

Brand: Martin Tool
PartNumber: C20132
Manufacturer: Martin Tool
Label: Martin Tool

Attributes

Key	Value
Bore Diameter	0.5 in ; 12.7 mm
Bore Type	Reboreable
Class	6
Diametral Pitch	20
External Length	0.5" (12.7mm)
Gear Type	B3
Hub Outside Diameter	1.7345" (44.1mm)
Length Through Bore	0.875" (22.2mm)
Material	Cast Iron
Maximum Bore Diameter	1" (25.4mm)
Number of Teeth	132
Number Of Teeth	132
Outer Diameter	6.7" (170.2mm)
Outside Dia	6.700"
Pitch Diameter	6.6" (167.6mm)
Pressure Angle	14.5 Degrees PA
Style	B
UPC Code	697950058375
Weight	1.12 lbs. (0.5 kg)
Width	0 in

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	us.rs-online.com	72332436	125.26	1	In Stock		Martin Sprocket & Gear	1.12	125.26 @ 1
	MRO Supply	250782	131.57	1	In Stock		Martin Sprocket		131.57 @ 1
	apexindustrialautomation.com	C20132	143.01	1	3		Martin Sprocket		143.01 @ 1
	Purvis	C20132	163.8	1	In Stock		Martin		163.8 @ 1
	motionindustries.com	00372901	179.35	1	In Stock		Martin		179.35 @ 1
