Molex 43045-0622

B00MEJFJCO

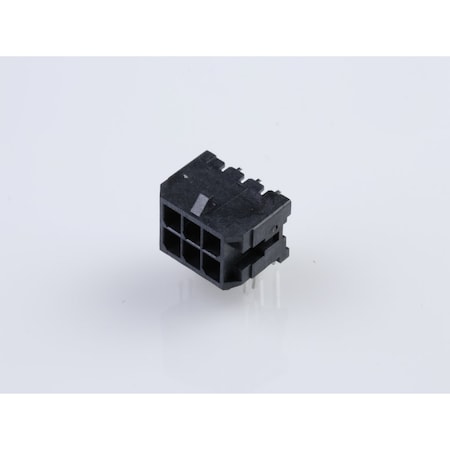

MOLEX 43045-0622 Plug & Socket Connector, Header, 6POS, 3MM

MOLEX 43045-0622 Plug & Socket Connector, Header, 6POS, 3MMzoom

Attributes

Key Value
Alternate Mfr Part Numb.43045-0622
ApplicationsGeneral Purpose, Medica.
ColorBlack
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.15.0?in (0.38?m)
Contact Finish Thicknes.100.0?in (2.54?m)
Contact Length - Mating-
Contact Length - Post0.125" (3.18mm)
Contact MaterialBrass
Contact ShapeSquare
Contact TypeMale Pin
Current Rating8.5 A
Current Rating (Amps)8A
Family NameMicro-Fit 3.0
Fastening TypeLocking Ramp
FeaturesBoard Lock
Ingress Protection-
Insulation ColorBlack
Insulation Height0.290" (7.37mm)
Insulation MaterialLiquid Crystal Polymer .
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrMolex
Mounting TypeThrough Hole, Right Ang.
Number of Circuits6
Number of Contacts6
Number of Positions6
Number of Positions Loa.All
Number of Rows2
Operating Temperature-
OrientationRight Angle
Overall Contact Length-
Package Quantity1
Part StatusActive
Pitch3.00 mm (0.118")
Pitch - Mating0.118" (3.00mm)
Plating MaterialGold
Primary TypeSoft Shell
Row Spacing - Mating0.118" (3.00mm)
Series43045 Series
ShroudingShrouded - 4 Wall
Special FeaturesLow-Halogen
StyleBoard to Cable/Wire
TerminationSolder, Surface Mount
TypeRight Angle Header
Voltage Rating600V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Avnet04304506221.33413303Molex1.334 @ 1
Power and Signal Group04304506221.4152172870Molex1.4152 @ 1728
thumbzoomNewark54AH80341.55164MOLEX1.55 @ 1
Onlinecomponents.com43045-06221.669201Molex1.669 @ 1
TMEMX-43045-06222.05164MOLEX2.05 @ 1
HotendaH13024492.44164Molex2.44 @ 1
thumbzoomDigi-KeyWM2680-ND2.56164Molex2.56 @ 1
us.rs-online.com703732422.91100Molex Incorporated2.9 @ 1
RS Delivers670-03833.524414280Molex3.5244 @ 1
thumbzoomRadwell43045-06225.0164MOLEX5.0 @ 1
thumbzoomZoroG403190095.64064Molex95.6 @ 40
