- mpn54132-3033
- brandname: Molex Incorporated
- manufacturername: Molex Incorporated

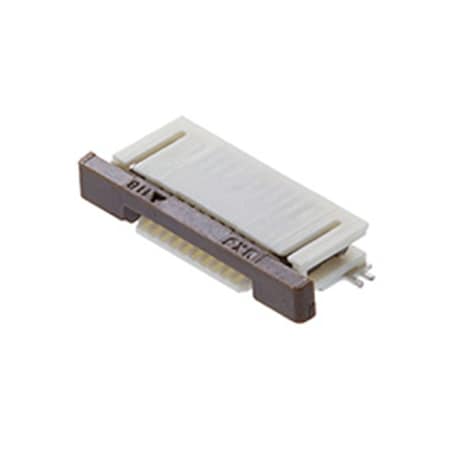

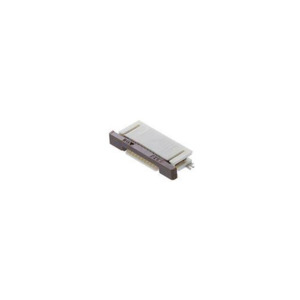

54132-3033,Conn FPC Connector SKT 30 POS 0.5mm Solder RA SMD Easy-On T/R (1500 Items)
- Brand: Woodhead / Molex
- PartNumber: 54132-3033
- Model: 54132-3033
- Manufacturer: Molex
- Label: Molex
Attributes
| Key | Value |
|---|
| Actuator Color | Black |
| Actuator Material | Polyphenylene Sulfide (. |
| Base Product Number | 054132 |
| Cable End Type | Straight, Tapered |
| Category | Connectors, Interconnec. |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish | Tin Bismuth |
| Contact Finish Thickness | 39.4?in (1.00?m) |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 0.5A |
| Description | CONN FFC BOTTOM 30POS 0. |
| Detailed Description | 30 Position FFC, FPC Co. |
| Digi-Key Part Number | WM11094TR-ND - Tape & R. |
| Features | Solder Retention, Zero . |
| FFC, FCB Thickness | 0.30mm |
| Flat Flex Type | FFC, FPC |
| Height Above Board | 0.079" (2.00mm) |
| Housing Color | Natural |
| Housing Material | Polyamide (PA), Nylon, . |
| Locking Feature | Slide Lock |
| Manufacturer | Molex |
| Manufacturer Product Nu. | 0541323033 |
| Material Flammability R. | UL94 V-0 |
| Mating Cycles | 20 |
| Mfr | Molex |
| Mounting Type | Surface Mount, Right An. |
| Number of Positions | 30 |
| Operating Temperature | -40?C ~ 85?C |
| Package | Tape & Reel (TR) |
| Package Quantity | 1 |
| Pitch | 0.020" (0.50mm) |
| Product Status | Last Time Buy |
| Series | Easy-On 54132 |
| Termination | Solder |
| Voltage Rating | 50V |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Newark | 26AH0905 | 0.594 | 1 | 393 | | MOLEX | | 0.594 @ 50 |
| Waldom | MOLEX 54132-3033 | 1.03 | 1500 | 58500 | | MOLEX | | 1.03 @ 1500 |
 | jensentools.com | 10194021 | 1.37 | 1 | 50 | | Molex | | 1.37 @ 50 |
| TME | MX-54132-3033 | 1.63 | 2 | 50 | | MOLEX | | 1.63 @ 50 |
 | Digi-Key | 4444680 | 2.18 | 1 | 21480 | | Molex | | 2.18 @ 50 |
| RS Delivers | 788-3600 | 2.1876 | 1 | 500 | | Molex | | 2.1876 @ 50 |
 | Zoro | G7784488 | 2985.0 | 1 | 50 | | Molex | | 2985.0 @ 50 |
