NTN UCFCX14D1

B007RHCKQQ

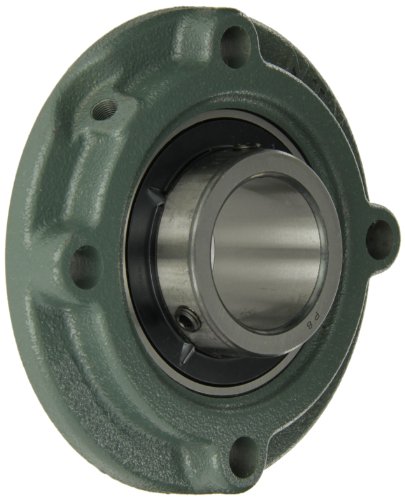

NTN UCFCX14D1 Medium Duty Piloted Flange Bearing, 4 Bolts, Setscrew Lock, Regreasable, Contact and Flinger Seals, Cast Iron, 700mm Bore, 7-31/64" Bolt Hole Spacing Width, 8-3/4" Height, 11129lbf Static Load Capacity, 14838lbf Dynamic Load Capacity

NTN UCFCX14D1 Medium Duty Piloted Flange Bearing, 4 Bolts, Setscrew Lock, Regreasable, Contact and Flinger Seals, Cast Iron, 700mm Bore, 7-31/64" Bolt Hole Spacing Width, 8-3/4" Height, 11129lbf Static Load Capacity, 14838lbf Dynamic Load Capacityzoom

Attributes

Key Value
Bearing TypeBall Bearing
Bolt Spacing5.291 Inch | 134.4 Mill.
Bore2.756 Inch | 70 Millime.
bore type:Round
Cartridge Pilot Depth0.787 Inch | 20 Millime.
Cartridge Pilot Diameter6.457 Inch | 164 Millim.
Category - BDIFlange Block
EAN4547359501223
Expansion / Non-expansi.Non-expansion
expansion type:Non-Expansion Bearing (.
finish/coating:Uncoated
Harmonized Tariff Code8483.20.40.40
Housing Configuration1 Piece Solid
Housing MaterialCast Iron
housing material:Cast Iron
Housing Style4 Bolt Round Flange Car.
Inch - MetricMetric
Insert Part NumberUCX14D1
Keyword StringFlanged
length through bore:3-3/32 in
Length Thru Bore3.063 Inch | 77.8 Milli.
locking device:Set Screw
Long Description4 Bolt Round Flange Car.
lubrication type:Lubrication Fitting
Manufacturer Item NumberUCFCX14D1
Manufacturer NameNTN
Minimum Buy QuantityN/A
Mounting Bolts16 Millimeter
Mounting MethodSet Screw
mounting type:Four-Bolt Piloted
Nominal Bolt Circle Dia.7.5 Inch | 190 Millimet.
NounBearing
Number of Mounting Holes4
Operating temperature r.-40 to 250 F
Other FeaturesSingle Row | Medium Dut.
Pilot ConfigurationWith Pilot
Product Group - BDIM06110
RelubricatableYes
replacement bearing:UCX14D1
Rolling ElementBall Bearing
Seal materialNitrile rubber
Seal typeContact
SealsSingle Lip Land Riding
series:UCFCX
standards met:JIS
UNSPSC31171501
Weight / Kilogram7.26
Weight / LBS16

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomBDI Express1232962328.56920731In StockNTN15.972328.5692073 @ 1
thumbzoommotionindustries.com03454779397.021In StockNTN397.02 @ 1
thumbzoomMRO Supply2698891201.311In StockNTN Bearing1201.31 @ 1
