1-770178-0-TE CONNECTIVITY / AMP

B00MEKLTNG

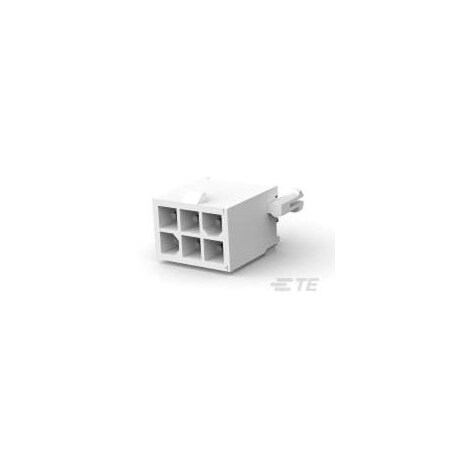

TE CONNECTIVITY / AMP 1-770178-0 HEADER, VERTICAL, DUAL ROW, 6WAY, 4.14MM (1 piece)

TE CONNECTIVITY / AMP 1-770178-0 HEADER, VERTICAL, DUAL ROW, 6WAY, 4.14MM (1 piece)zoom

Attributes

Key Value
ApplicationsGeneral Purpose
Base Product Number770178
CategoryConnectors, Interconnec.
ColorWhite
Connector TypeHeader
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.150.0?in (3.81?m)
Contact Finish Thicknes.150.0?in (3.81?m)
Contact Length - Mating-
Contact Length - Post0.175" (4.45mm)
Contact MaterialBrass
Contact ShapeCircular
Contact TypeMale Pin
Country of Origin (subj.United States
Current Rating (Amps)Varies by Wire Gauge
DescriptionCONN HEADER VERT 6POS 4.
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberA32456-ND
Family NameUniversal MATE-N-LOK Fa.
Fastening TypeLocking Ramp
FeaturesBoard Lock
Ingress Protection-
Insulation ColorWhite
Insulation Height0.531" (13.50mm)
Insulation MaterialPolyamide (PA), Nylon
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.1-770178-0
Manufacturer Standard L.6 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole
Number of Contacts6
Number of Positions6
Number of Positions Loa.All
Number of Rows2
Operating Temperature-20?C ~ 85?C
Overall Contact Length-
PackageBulk
Pitch - Mating0.163" (4.14mm)
Primary TypeSoft Shell
Product StatusActive
Row Spacing - Mating0.163" (4.14mm)
SeriesMini-Universal MATE-N-L.
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
TerminationPCB, Solder
TypeReceptacle
Voltage Rating600VAC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Freelance Electronics1-770178-00.57091175Tyco Electronics0.5709 @ 1
Onlinecomponents.com1-770178-01.0118976TE Connectivity / AMP Brand1.0 @ 1
WaldomTE CONNECTIVITY AMP BRAND 1-770178-01.02558062TE CONNECTIVITY/AMP BRAND1.02 @ 55
Future Electronics66488021.068111460TE Connectivity1.068 @ 1
us.rs-online.com700849161.371600175TE Connectivity1.37 @ 1600
thumbzoomZoroG4010406881.416175Te Connectivity1.41 @ 6
thumbzoomDigi-Key6970491.7112282TE Connectivity AMP Connectors1.7 @ 1
thumbzoomNewark93K19521.8913026AMP - TE CONNECTIVITY1.89 @ 1
RS Delivers500-632P2.329218265TE Connectivity2.3292 @ 1
AmazonTPB010IIG0OI5.9911752TE Connectivity5.99 @ 1
AmazonSCB010IIG0OI11.091175TE Connectivity11.09 @ 1
