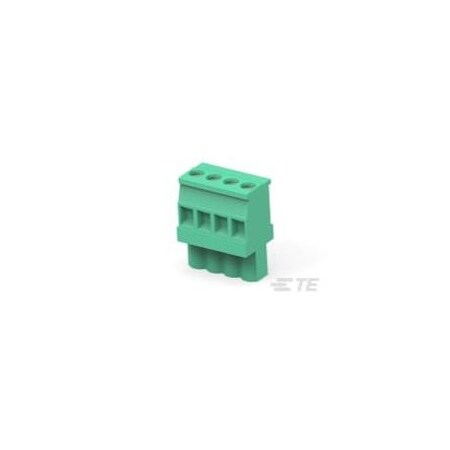

TE Connectivity 1-284041-0

mpn1-284041-0
brandname: TE Connectivity AMP Connectors
manufacturername: TE Connectivity AMP Connectors

TE Connectivity Part Number 1-284041-0

TE Connectivity Part Number 1-284041-0

zoom

Brand: TE Connectivity
PartNumber: 1-284041-0
Manufacturer: TE Connectivity
Label: TE Connectivity

Attributes

Key	Value
Applies To	Wire/Cable
Block Type	None
Case Material	Polyamide
Centerline	5.08 mm [ .2 in ]
Color	Green
Connector Style	Plug
Contact Base Material	Phosphor Bronze
Contact Current Rating	50 mA
Contact Material	Phosphor Bronze
Contact Mating Area Pla.	Tin
Contact Mating Finish	Tin
Contact Tail Length	-
Cover Material	Steel
Current - IEC	-
Current - UL	15 A
Current Rating (Max) (A)	15
Features	Retention Latches (Non-.
Header Orientation	-
Housing Color	Green
Housing Material	PA 6.6, Polyamide (PA66.
Ingress Protection	-
Insulation Height	0.984" (25.00mm)
Interlock	Without
Material Flammability R.	UL94 V-0
Mfr	TE Connectivity AMP Con.
Mounting Angle	Vertical
Mounting Type	Free Hanging (In-Line),.
Number of Levels	1
Number of Positions	10
Number of Rows	1
Operating Temperature	-40?C ~ 110?C
Package Quantity	1
Package Type	Tape & Reel
Part Status	Active
Pitch	0.200" (5.08mm)
Plug Wire Entry	270?
Positions Per Level	10
Primary Type	Wire to Board
Product Type	Switch
Screw Flange	Without
Screw Material	Brass
Screw Plating Material	Nickel
Screw Size	M3
Screwless Terminal Block	No
Side Stackable	Yes
Stacked Levels	Without
Temperature Rating	Standard ?C
Termination	Socket
Termination Style	Screw - Rising Cage Cla.
Torque - Screw	0.79 Nm (7.0 Lb-In)
Type	Plug, Female Sockets, E.
Voltage (VAC)	300
Voltage - UL	300 V
Wire Entry Angle	Side
Wire Gauge or Range - A.	12-30 AWG
Wire Gauge or Range - m.	0.05-3mm?
Wire Range	.05 to 3 mm? [ 30 to 12.
Wire Strip Length	6-7.5mm
Wire Termination Type	Screw

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Waldom	TE CONNECTIVITY AMP BRAND 1-284041-0	6.58	500	18		TE CONNECTIVITY/AMP BRAND		6.58 @ 500
	Onlinecomponents.com	1-284041-0	7.78	1	1203		TE Connectivity / AMP Brand		7.78 @ 1
	Hotenda	H1540364	9.79	1	In Stock		TE Connectivity AMP Connectors		9.79 @ 1
	us.rs-online.com	71211067	10.41	400	In Stock		TE Connectivity		10.41 @ 400
	Newark	41AJ0630	18.62	1	18		AMP - TE CONNECTIVITY		18.62 @ 1
	Zoro	G300926830	89.91	1	In Stock		Te Connectivity		89.91 @ 1
