- mpnS10P1A
- brandname: US Motors
- manufacturername: US Motors

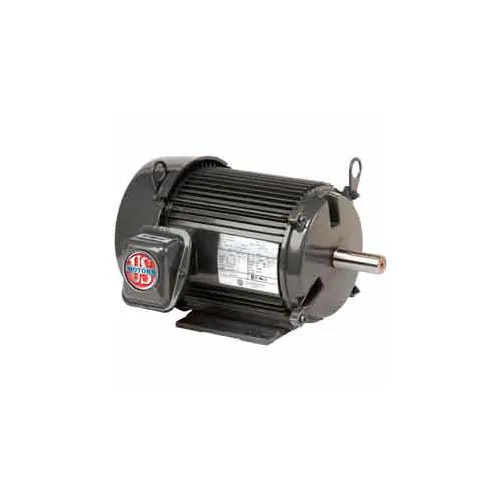

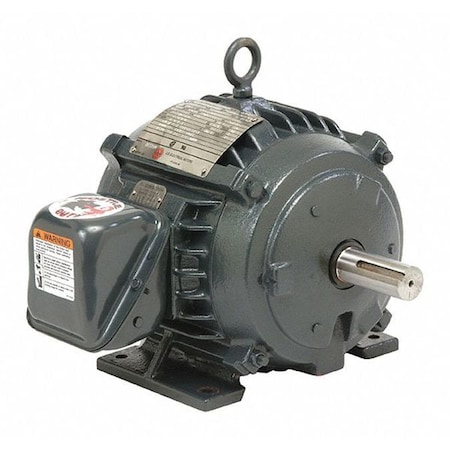

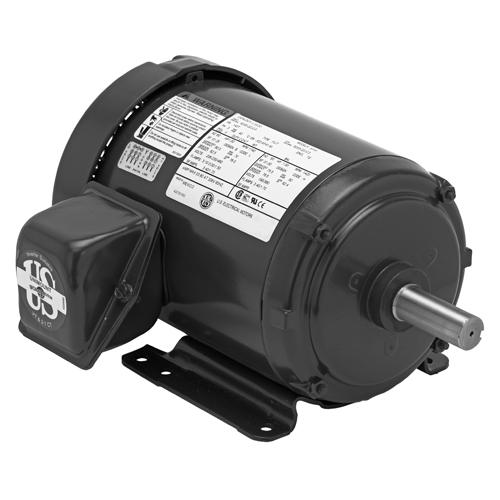

U.S. Motors US Motors Unimount TEFC, 10 HP, 3-Phase, 3515 RPM Motor, S10P1A
- Brand: U.S. Motors
- PartNumber: S10P1A
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 26.5-23.5/11.7 |
| Bearings | Ball |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Drive End Flange Type | Standard |
| Duty | CONT |
| Efficiency | 90.2% |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 140.80 |
| Family Series | US Motors Motors |
| FL Amps | 26.5-23.5/11.7 |
| FL Efficiency | 90.2 |
| Frame | 215T |
| Frequency | 60 Hz |
| Full Load Amps | 26.5-23.5/11.7 |
| Gross Weight | 128 lbs |
| Hertz | 60 |
| Horsepower | 10 HP |
| HP | 10, 10 HP |
| Hz | 60, 60 Hz |
| Ins. Class | F |
| Insulation Class | F |
| Item | Motor,3PH,10HP,3600,230. |
| Item Number | S10P1A |
| Kilowatts | 7.5 kW |
| kW | 7.46 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | DA54 |
| Manufacturer Part Number | S10P1A |
| Maximum Ambient Tempera. | 40? C |
| Model Number | DA54 |
| Motor Bearings | 6205-2Z-J/C3,6208-2Z-J/. |
| Motor Enclosure Design | TEFC |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Type | HORZ-FOOTED |
| Motor Service Factor | 1.15 |
| Mounting | Foot Mount, Base |
| Mounting Type | Foot Mount |
| NEMA Design | B |
| NEMA Frame | 215T |
| Net Weight | 0 lbs |
| Nominal Efficiency | 0.902 |
| Nominal Voltage | 208 VAC, 240 VAC, 480 V. |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Overall Length | 18.8 |
| Part Number | S10P1A |
| Phase | 3, 3 ph |
| Product Type | 3 Phase, General Purpose |
| Rotation | Reversible |
| RPM | 3,515 RPM, 3515 |
| RPM Range | 3515 RPM |
| Service Factor | 1.15 |
| Ship Weight | 128 lbs. |
| Speed (RPM) | 3515 |
| Standards | EE,NEMA PREMIUM |
| Voltage | 208-230/460 V, 208V, 23. |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Volts | 208-230/460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G0401561 | 716.99 | 1 | In Stock | | U.S. Motors | 128.0 | 716.99 @ 1 |
 | Global Industrial | WBB467095 | 784.0 | 1 | In Stock | | US Motors | | 784.0 @ 1 |
 | emotorpro.com | S10P1A | 849.6 | 1 | In Stock | | U.S. Motors | 128.0 | 849.6 @ 1 |
 | National Supply Network | B467095 | 872.39 | 1 | In Stock | | US MOTORS | | 872.39 @ 1 |
 | motorsandcontrol.com | S10P1A | 895.56 | 1 | In Stock | | US Motors (Nidec) | 140.8 | 895.56 @ 1 |
 | Galco | S10P1A-USM | 895.57 | 1 | In Stock | | US Motors | 128.0 | 895.57 @ 1 |
| motionindustries.com | 04426989 | 1271.15 | 1 | In Stock | | US Motors (Nidec) | | 1271.15 @ 1 |
