- mpnAOM3702T
- brandname: Baldor
- manufacturername: Baldor

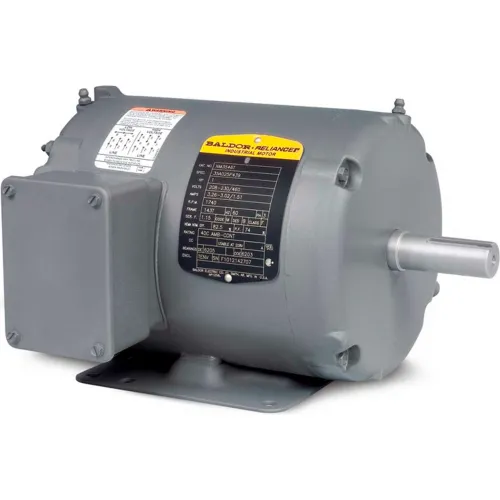

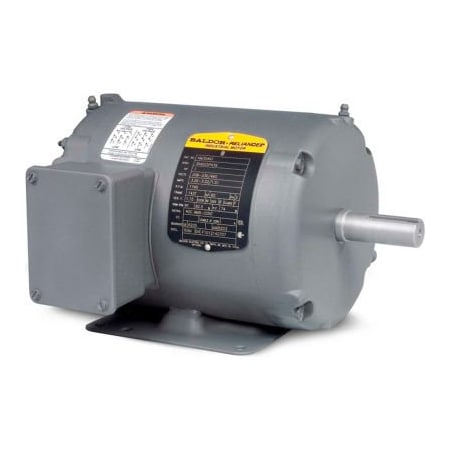

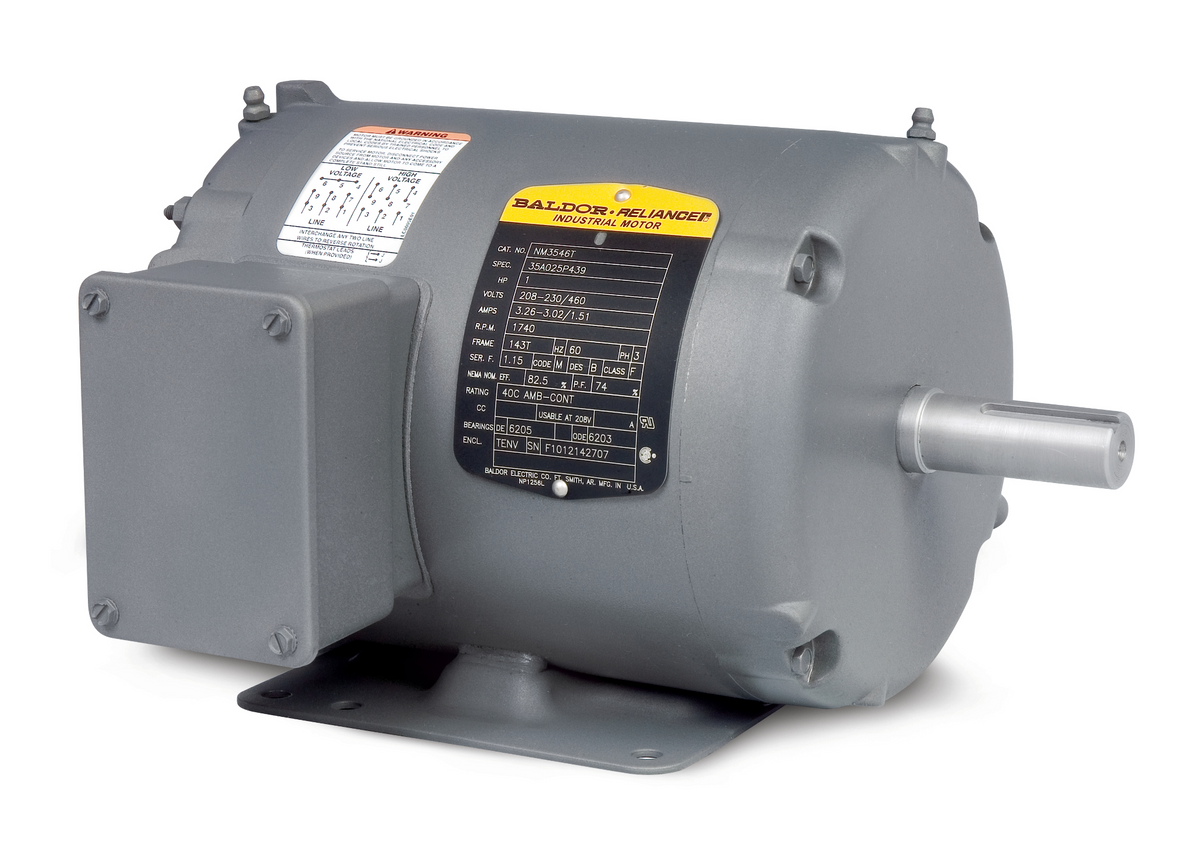

Baldor AOM3702T HVAC Motor
- Brand: Baldor
- PartNumber: AOM3702T
- Manufacturer: Baldor
- Label: Baldor
Attributes
| Key | Value |
|---|
| Amps | 7.6/7/3.5 |
| Application | HVAC |
| Approvals | CSA, UL |
| Bearings | Ball |
| Construction | Aluminum |
| Country of Origin (subj. | United States |
| Drive End Flange Type | Standard |
| Duty Cycle | Continuous |
| Efficiency | 82.5% |
| Efficiency % | 82.5 % |
| Enclosure | TEAO, Totally Enclosed . |
| Enclosure Material | Steel |
| Enclosure Type | TEAO (Totally Enclosed . |
| Estimated Weight | 97.00 |
| Family Series | Baldor Motors, AOM Seri. |
| FL Amps | 7.6-7/3.5 |
| FL Efficiency | 82.5 |
| Frame | 213T |
| Frame Type | 213T |
| Gross Weight | 89 lbs |
| Hertz | 60 |
| Horsepower | 2 hp |
| Horsepower Rating | 2 hp |
| HP | 2 |
| Hz | 60 |
| Insulation Class | F |
| Inverter Duty | No |
| Item Number | AOM3702T |
| Manufacturer | Baldor-Reliance, Baldor. |
| Manufacturer Model # | 37F359T938G1 |
| Manufacturer Part Number | AOM3702T |
| Maximum Ambient Tempera. | 40? C |
| Motor Construction | Steel |
| Motor Amperage (Full Lo. | 7 Amp, 3.500 Amp, 7.600. |
| Motor Enclosure Type | Totally Enclosed Air Ov. |
| Motor Frame Model | 213T |
| Motor Frequency | 60 Hz |
| Motor Horsepower | 2 hp |
| Motor Insulation Class | Class F Insulation |
| Motor Nema Design | Nema Design H |
| Motor RPM's | 900 RPM |
| Motor Voltage | 208 Volt, 230 Volt, 460. |
| Motor Voltage Phases | 3 Phase |
| Mounting | Foot Mount, Rigid |
| Mounting Type | Footed, Foot Mount, Rig. |
| NEMA Frame | 213T |
| Net Weight | 89 lbs |
| Nominal Voltage | 208 VAC, 240 VAC, 415 V. |
| Number of Poles | 8 |
| Number of Speeds | 1 |
| Overall Length | 16.32", 16.32 " |
| Part Number | AOM3702T |
| Phase | 3, 3 Phase |
| Product Series | AOM |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 855, 855 RPM, 900 RPM |
| Series | HV3 Series |
| Service Factor | 1, 1.00 |
| Shaft Diameter | 1.375" |
| Ship Weight | 97 lbs. |
| Speed (RPM) | 855 |
| Supply Voltage | 208-230/460 VAC |
| UPC Code | 781568121757 |
| Voltage | 208-230/460, 208V, 230V. |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Volts | 208-230/460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| AmazonTP | B0042G5CVA | 1551.33 | 1 | In Stock | 10 | Baldor | | 1551.33 @ 1 |
 | MRO Supply | 24220 | 1633.39 | 1 | In Stock | | Baldor | | 1633.39 @ 1 |
 | emotorpro.com | AOM3702T | 1722.21 | 1 | In Stock | | Baldor | 97.0 | 1722.21 @ 1 |
| factorysupplyoutlet.com | JG74YY | 1900.86 | 1 | In Stock | | Baldor-Reliance | | 1900.86 @ 1 |
 | galesburgelectric.com | AOM3702T | 1905.62 | 1 | In Stock | | Baldor | | 1905.62 @ 1 |
 | Galco | AOM3702T-BLDR | 1905.63 | 1 | In Stock | | Baldor | 89.0 | 1905.63 @ 1 |
 | Walker Industrial | AOM3702T | 1905.63 | 1 | In Stock | | Baldor | | 1905.63 @ 1 |
| motorsandcontrol.com | AOM3702T | 1985.02 | 1 | In Stock | | Baldor Reliance | 97.0 | 1985.02 @ 1 |
 | Global Industrial | WBB388557 | 2045.0 | 1 | In Stock | | Baldor-Reliance | | 2045.0 @ 1 |
 | pumpproducts.com | AOM3702T | 2255.0 | 1 | In Stock | | Baldor | | 2255.0 @ 1 |
| rspsupply.com | BALDOR AOM3702T | 2338.71 | 1 | In Stock | | Baldor | | 2338.71 @ 1 |
| us.rs-online.com | 71933920 | 2382.03 | 1 | In Stock | | Baldor-Reliance | | 2382.03 @ 1 |
| kirbyrisk.com | 1777272 | 2498.64 | 1 | In Stock | | Baldor | | 2498.64 @ 1 |
| motionindustries.com | 00545813 | 3018.26 | 1 | In Stock | | Baldor-Reliance | | 3018.26 @ 1 |
 | Zoro | G405129921 | 3539.03 | 1 | In Stock | | Baldor-Reliance | | 3539.03 @ 1 |
 | Raptor Supplies | AJ6NVJ | 5675.7916215 | 1 | In Stock | | BALDOR MOTOR | | 5675.7916215 @ 1 |
