- mpnC6PC28-GY-03
- brandname: BLACK BOX
- manufacturername: BLACK BOX

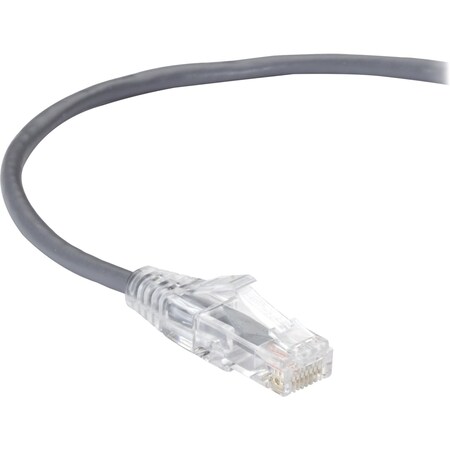

3FT Gray CAT6 Slim 28AWG Patch Cable 250MHz UTP CM Snagless
- PartNumber: C6PC28-GY-03
- Model: C6PC28-GY-03
- Color: Gray
- Size: 3 feet
- PackageQuantity: 1
- Binding: Electronics
- Manufacturer: BLACKBOX NETWORK SERVICE
- Label: BLACKBOX NETWORK SERVICE
Attributes
| Key | Value |
|---|
| ACR | 100 MHz: 24.4 dB/100 m;. |
| ACRF | 100 MHz: 27.8 dB/100 m;. |
| American Wire Gauge | 28 AWG |
| Approvals | UL?E196163 |
| Brand | Black Box |
| Brand Name | Black Box |
| Cable Characteristic | Patch Cable |
| Cable Length | 3 ft |
| Cable Type | Ethernet, Category 6 |
| Color | Gray, Grey |
| Conductor Gauge | 28 AWG, stranded bare c. |
| Connector on First End | 1 x RJ-45 Male Network |
| Connector on Second End | 1 x RJ-45 Male Network |
| Contact Plating | Gold |
| Country of Origin | China |
| Country of Origin (subj. | Unknown |
| Data Transfer Rate | 10 Gbit/s |
| Date First Available | August 24, 2018 |
| Delay Skew | 1-10 MHz: 40 +/- 10 nS/. |
| Device Supported | Patch Panel, Wallplate,. |
| Environmental Certifica. | RoHS |
| Environmentally Friendly | Yes |
| Features | Stranded, Snagless, Boo. |
| Frequency | 250 MHz |
| Height | 0.50 |
| Impedance | 100 ? 15 ohms |
| Insertion Loss (Maximum) | 100 MHz: 19.8 dB/100 m;. |
| Insulation | HDPE |
| Item model number | C6PC28-GY-03 |
| Item Weight | 1 pounds |
| Jacket | PVC, CM |
| Jacket Type | CM |
| Length | 4.00 |
| Limited Warranty | Lifetime |
| Manufacturer | Black Box, Black Box Co. |
| Manufacturer Part Number | C6PC28-GY-03 |
| Manufacturer Website Ad. | http://www.blackbox.com |
| Material | Polyvinyl Chloride (PVC. |
| NEXT | 100 MHz: 44.3 dB/100 m;. |
| Outer Diameter | 0.161"" (4.1 mm) |
| Package Dimensions | 4 x 4 x 0.5 inches |
| Pair-to-Ground Capacita. | 330 pF/100 m max. |
| Product Condition | New |
| Product Line | Slim-Net |
| Product Name | Slim-Net Cat.6 UTP Patc. |
| Product Type | Network Cable |
| Product with faster shi. | true |
| Propagation Delay | 250 MHz: 535.5 ns/100 m. |
| PS-ACR | 100 MHz: 22.4 dB/100 m;. |
| PS-ACRF | 100 MHz: 24.8 dB/100 m;. |
| PS-NEXT | 100 MHz: 42.3 dB/100 m;. |
| Resistance | 22.3 ohms/100 m |
| Return Loss | 100 MHz: 19.0 dB/100 m;. |
| Shielding | No |
| Shipping | undefined (Fixed Shippi. |
| Specification met | Ansi, Tia |
| Width | 4.00 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | usmegastore.com | C6PC28-GY-03 | 4.89 | 1 | 3 | | BlackBox | | 4.89 @ 3 |
 | Zoro | G9515259 | 5.99 | 2 | 3 | 8 | Black Box | | 5.99 @ 3 |
| Newark | 83Y9072 | 6.49 | 1 | 3 | | BLACK BOX | | 6.49 @ 3 |
 | ipcstore.com | 14_C6PC28-GY-03_1 | 7.0 | 1 | 3 | | Black Box | | 7.0 @ 3 |
 | PCNation | 6QA219 | 10.56 | 1 | 3 | | BLACK BOX CORPORATION | 1.0 | 10.56 @ 3 |
| barcodegiant.com | BLA629050 | 13.5 | 1 | 3 | | Black Box | | 13.5 @ 3 |
 | homeessentialsdirect.com | C6PC28-GY-03 | 20.15 | 1 | 3 | | BLACKBOX NETWORK SERVICE | 1.0 | 20.15 @ 3 |
