- mpnC20480
- brandname: Cle-Line
- manufacturername: Cle-Line

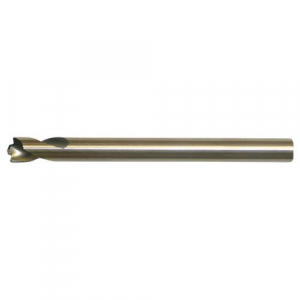

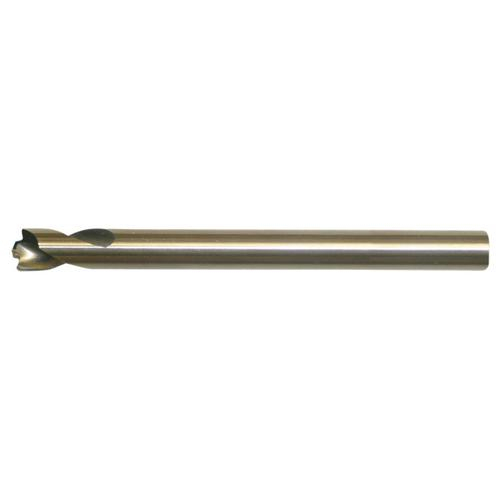

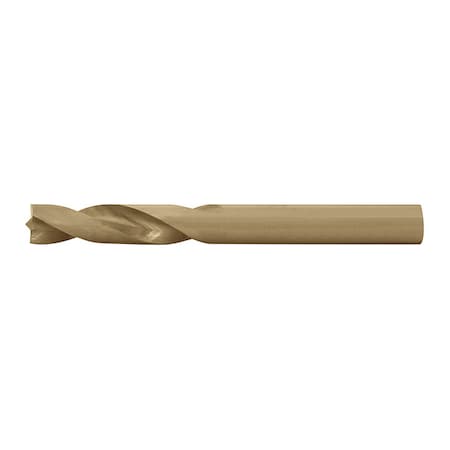

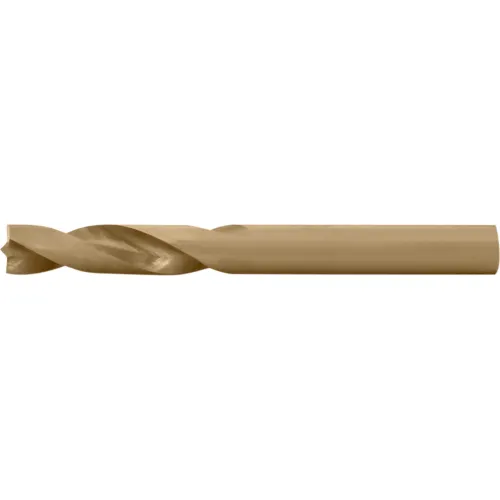

Cle-Line C20480 Welding Point Drill, Cobalt, Gold Oxide Finish, Straight Shank, 135-Degree Split Point, 10.00 mm Drill Diameter (Pack of 6)
- Brand: Cle-line
- PartNumber: C20480
- Model: C20480
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Sheet Metal |
| Coolant Fed | Non-Coolant Through |
| Cutting Depth | 43 mm |
| Cutting Direction | Right Hand |
| Cutting Edge Material | M42 HSS-Co 8 |
| Decimal Equivalent | 0.3937 |
| Depth:Dia. Ratio | 4xD |
| Diameter | 10 mm, 0.3937" |
| Diameter (Metric) | 10.00mm |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | Straw/Bronze |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 10.00 mm |
| Drill Construction | Welding Point Drills |
| Drill Size System | Metric |
| Drill Style | Other |
| Finish | Straw Oxide |
| Finish - Machining | Straw/Bronze |
| Flute Length | 1.6929", 43 mm, 43.00 mm |
| Flute Length (Metric) | 43.00mm |
| Flute Type | Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Impact Rated | No |
| Item | Spot Weld Drill Bit |
| Material | M42 HSS-Co 8, HSS-CO |
| Material - Machining | Cobalt |
| Material Grade - Machin. | Heavy Duty |
| Measurement System | Metric |
| Number of Flutes | 2 |
| Overall Length | 89 mm, 89.00 mm, 3.5039" |
| Overall Length (Metric) | 89.00mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split |
| Primary Material Applic. | P |
| Series | 2185 |
| Shank Configuration | Straight |
| Shank Dia. | 10.00 mm |
| Shank Length | 1.8110", 46.00 mm |
| Shank Length (Metric) | 46.00mm |
| Shank Size | 10 mm, 0.3937" |
| Shank Size (Metric) | 10.00mm |
| Shank Type | Straight |
| Spiral Direction | Right Hand |
| Style | 2185 |
| Surface Condition | Straw |
| Tool Size | 10.00mm, 10mm |
