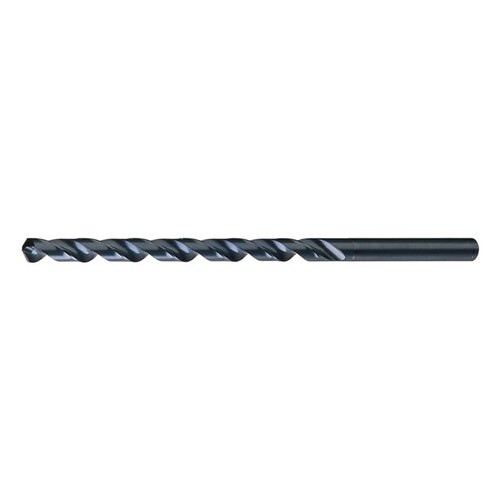

Cle-Line C20483 Extra Length Extended Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Notched Point, 9/32" Drill Diameter

Cle-Line C20483 Extra Length Extended Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Notched Point, 9/32" Drill Diameterzoom

Attributes

Key Value
Coolant FedNon-Coolant Through
Cutting DirectionRight Hand
Decimal Equivalent0.2812
Depth x Dia. Ratio4xD
Depth:Dia. Ratio4xD
Diameter0.2812"
Diameter (Fraction)9/32"
Drill Bit Point Angle118 Degrees
Drill Bit Size9/32 in
Drill ConstructionGeneral Purpose
Drill Diameter Tolerance+0.0000 in /-0.0010 in
Drill Length ClassExtra Long
Drill Point Length0.0845 in
Drill Size SystemFractional
Drill StyleExtra Length Drill
Finish - MachiningBlack Oxide
Flute Length14 in, 14.0000"
Flute Length (Metric)355.60mm
Flute TypeSpiral
Hand of CutRight
Hand of SpiralRight
ItemExtra Long Drill Bit
MaterialHSS
Material - MachiningHigh Speed Steel
Maximum Drilling Depth1 1/8 in
Number of Flutes2
Overall Length18 in, 18.0000"
Overall Length (Metric)457.20mm
Point Angle118?
Point StyleNotched
Primary Material Applic.Cast Iron, Steel
Primary Material Applic.K, P
Shank ConfigurationStraight
Shank Dia.9/32 in
Shank Length4.0000", 4 in
Shank Length (Metric)101.60mm
Shank Size0.2813"
Shank Size (Metric)7.15mm
Shank Type - MachiningStraight
SKUC20483
StandardsASME B94.11M
Style1807
Surface ConditionSteam Oxide
Tool Size9/32"
UPC6.97E+11
