Cle-line C20485

mpnC20485
brandname: Cle-Line
manufacturername: Cle-Line

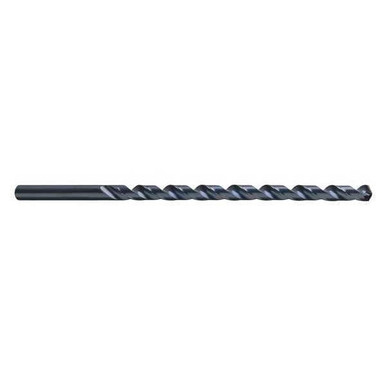

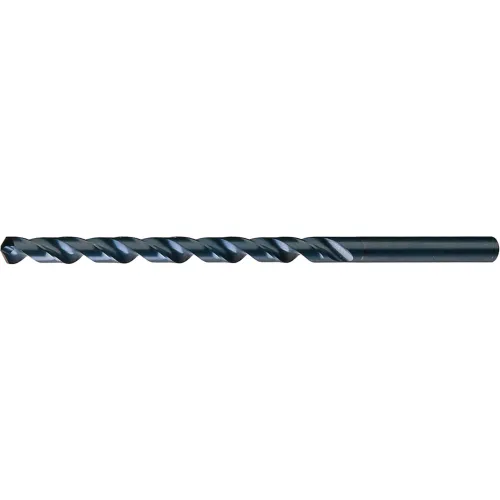

Cle-Line C20485 Extra Length Extended Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Notched Point, 5/16" Drill Diameter

Brand: Cle-line
PartNumber: C20485
Model: C20485
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries (TEG)
Label: Greenfield Industries (TEG)

Attributes

Key	Value
Applicable Materials	Low Carbon, Stainless S.
Brand	Cle-Line
Coolant Fed	Non-Coolant Through
Current Stock	9
Cutting Depth	14 in
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	0.3125
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter	0.3125"
Diameter (Fraction)	5/16"
Drill Bit Point Angle	118 Degrees
Drill Bit Size	5/16 in
Drill Construction	General Purpose
Drill Diameter Tolerance	+0.0000 in /-0.0010 in
Drill Length Class	Extra Long
Drill Point Length	0.0939 in
Drill Size - Decimal In.	0.3125 in
Drill Size - Fraction	5/16 in
Drill Size System	Fractional
Drill Style	Extra Length Drill
Finish	Black Oxide/Steam Oxide
Finish - Machining	Black Oxide
Flute Length	14 in, 14.0000"
Flute Length (Metric)	355.60mm
Flute Type	Spiral
Hand of Cut	Right
Hand of Spiral	Right
International Shipping	No
Item	Extra Long Drill Bit
Lead Time	Expected to ship in 1-2.
Material	HSS
Material - Machining	High Speed Steel
Maximum Drilling Depth	1 1/4 in
Measurement System	Fractional Inch
Mpn	C20485
Number of Flutes	2
Overall Length	18 in, 18.0000"
Overall Length (Metric)	457.20mm
Point Angle	118 deg, 118?
Point Style	Notched
Point Type	Notched
Primary Material Applic.	K, P
Series	1807
Shank Configuration	Straight
Shank Dia.	5/16 in
Shank Length	4.0000", 4 in
Shank Length (Metric)	101.60mm
Shank Size	5/16 in, 0.3125"
Shank Size (Metric)	7.94mm
Shank Type	Straight
Shank Type - Machining	Straight
SKU	ZO-G4958646, C20485
Standards	ASME B94.11M
Style	1807
SubCategory	Machining
Surface Condition	Steam Oxide
Through Coolant (Yes/No)	No
Tool Size	5/16"
Type	General Purpose Heavy D.
UPC	697334204855, 6.97E+11

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
Zoro	G4958646	35.89	1	10	Cle-Line	0.35	35.89 @ 1
usmegastore.com	C20485	37.47	1	In Stock	Cle-Line		37.47 @ 1
Megadepot	C20485	37.71	1	In Stock	Cle-Line		37.71 @ 1
heavydutydepot.com	C20485	37.71	3	In Stock	Cle-Line		37.71 @ 3
Global Industrial	WBB2543646	41.95	1	In Stock	Cle-Line		41.95 @ 1
MRO Supply	6123835	42.17	2	In Stock	Cle-Line		42.17 @ 2
simsupply.com	ZO-G4958646	48.45	1	9	Cle-Line		48.45 @ 1
imsbolt.com	C20485	69.5	1	In Stock	CLE-LINE		69.5 @ 1
National Supply Network	88558150	73.28	1	In Stock	Cle-Line		73.28 @ 1
