Cle-line C20487

mpnC20487
brandname: Cle-Line
manufacturername: Cle-Line

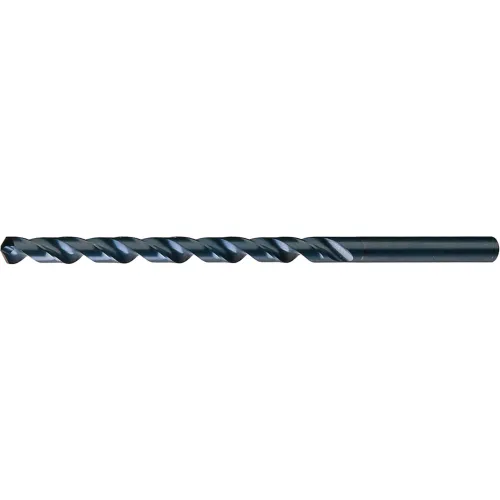

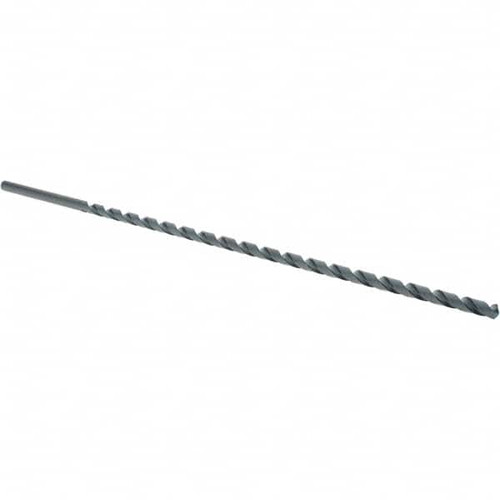

Cle-Line C20487 Extra Length Extended Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Notched Point, 11/32" Drill Diameter

Cle-Line C20487 Extra Length Extended Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Notched Point, 11/32" Drill Diameter

zoom

Brand: Cle-line
PartNumber: C20487
Model: C20487
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries (TEG)
Label: Greenfield Industries (TEG)

Attributes

Key	Value
Applicable Materials	Low Carbon, Stainless S.
Coolant Fed	Non-Coolant Through
Cutting Depth	14 in
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	0.3438
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter	0.3438"
Diameter (Fraction)	11/32"
Drill Bit Point Angle	118 Degrees
Drill Bit Size	11/32 in
Drill Construction	General Purpose
Drill Diameter Tolerance	+0.0000 in /-0.0010 in
Drill Length Class	Extra Long
Drill Point Length	0.1033 in
Drill Size - Decimal In.	0.3438 in
Drill Size - Fraction	11/32 in
Drill Size System	Fractional
Drill Style	Extra Length Drill
Finish	Black Oxide/Steam Oxide
Finish - Machining	Black Oxide
Flute Length	14 in, 14.0000"
Flute Length (Metric)	355.60mm
Flute Type	Spiral
Hand of Cut	Right
Hand of Spiral	Right
Item	Extra Long Drill Bit
Material	HSS
Material - Machining	High Speed Steel
Maximum Drilling Depth	63/64 in
Measurement System	Fractional Inch
Number of Flutes	2
Overall Length	18 in, 18.0000"
Overall Length (Metric)	457.20mm
Point Angle	118 deg, 118?
Point Style	Notched
Point Type	Notched
Series	1807
Shank Configuration	Straight
Shank Dia.	11/32 in
Shank Length	4.0000", 4 in
Shank Length (Metric)	101.60mm
Shank Size	0.3438", 11/32 in
Shank Size (Metric)	8.73mm
Shank Type	Straight
Shank Type - Machining	Straight
SKU	C20487
Spiral Direction	Right Hand
Standards	ASME B94.11M
Style	1807
Surface Condition	Steam Oxide
Through Coolant (Yes/No)	No
Tool Size	11/32"
Type	General Purpose Heavy D.
UPC	6.97E+11

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G4958689	38.85	1	In Stock		Cle-Line	0.4	38.85 @ 1
	usmegastore.com	C20487	39.63	1	In Stock		Cle-Line		39.63 @ 1
	Megadepot	C20487	39.88	1	In Stock		Cle-Line		39.88 @ 1
	heavydutydepot.com	C20487	39.88	3	In Stock		Cle-Line		39.88 @ 3
	Global Industrial	WBB2543647	41.95	1	In Stock		Cle-Line		41.95 @ 1
	MRO Supply	6123836	45.05	2	In Stock		Cle-Line		45.05 @ 2
	imsbolt.com	C20487	74.27	1	In Stock		CLE-LINE		74.27 @ 1
	National Supply Network	88558192	81.61	1	In Stock		Cle-Line		81.61 @ 1
