- mpnC23186
- brandname: CLE-LINE
- manufacturername: CLE-LINE

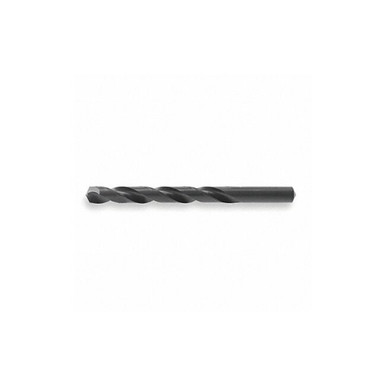

Jobber Bit, 28, High Speed Steel
- Brand: Cle-line
- PartNumber: C23186
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: CLE-LINE
- Label: CLE-LINE
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Brand | Cle-Line |
| Color | Black Oxide |
| Coolant Fed | Non-Coolant Through |
| Current Stock | 197 |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.1405 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.1405" |
| Diameter (Wire/Let) | 28 |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Size | #28 |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in/-0.0007 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0291 in |
| Drill Size - Decimal In. | 0.1405 in |
| Drill Size - Wire | #28 |
| Drill Size System | Wire |
| Drill Style | Jobber Drill |
| Finish | Tin, Black Oxide |
| Flute Length | 1.7500", 1 3/4 in, 1-3/. |
| Flute Length (Metric) | 44.45mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| International Shipping | No |
| Item | Jobber Length Drill Bit |
| Lead Time | Expected to ship in 1-2. |
| Material | HSS, High Speed Steel |
| Maximum Drilling Depth | 1 5/16 in |
| Mpn | C23186 |
| Number of Flutes | 2 |
| Overall Length | 2-7/8 in, 2.8750", 2 7/. |
| Overall Length (Metric) | 73.02mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split |
| Series | 1801 |
| Shank Configuration | Straight |
| Shank Dia. | 1/8 in |
| Shank Length | 1.1250", 1 1/8 in |
| Shank Length (Metric) | 28.57mm |
| Shank Size | 0.1405 in Dia x 1.125 i. |
| Shank Size (Metric) | 3.57mm |
| Shank Type | Straight |
| SKU | ZO-G0758615 |
| Style | 1801 |
| SubCategory | Machining |
| Surface Condition | Steam Oxide |
| Through Coolant (Yes/No) | No |
| Tool Size | #28 |
| Type | Heavy Duty |
| UPC | 697334231868 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2543098 | 1.2257 | 12 | 12 | | Cle-Line | | 1.2257 @ 12 |
 | usmegastore.com | C23186 | 1.42 | 1 | 12 | | Cle-Line | | 1.42 @ 12 |
 | Megadepot | C23186 | 1.44 | 1 | 12 | | Cle-Line | | 1.44 @ 12 |
 | heavydutydepot.com | C23186 | 1.44 | 70 | 12 | | Cle-Line | | 1.44 @ 70 |
 | MRO Supply | 6124709 | 1.47 | 35 | 12 | | Cle-Line | | 1.47 @ 35 |
 | Zoro | G0758615 | 1.55 | 1 | 300 | | Cle-Line | 0.1 | 1.55 @ 12 |
 | sustainablesupply.com | C1465235 | 1.96 | 1 | 12 | | Cle-Line | 0.1 | 1.96 @ 12 |
 | Raptor Supplies | AD6WAY | 2.033577 | 1 | 12 | | CLE-LINE | | 2.033577 @ 12 |
 | simsupply.com | ZO-G0758615 | 7.81 | 1 | 197 | | Cle-Line | | 7.81 @ 12 |
| AmazonSC | B00J9IEFPA | 20.4 | 1 | 12 | | Cle-line | | 20.4 @ 12 |
