- mpn40A40L14
- brandname: Dodge
- manufacturername: Dodge

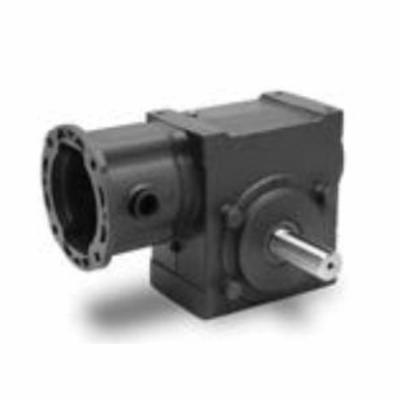

DODGE 40A40L14 40A40L14 TIGEAR-2 REDUCER
- Brand: Dodge
- PartNumber: 40A40L14
Attributes
| Key | Value |
|---|
| Base to output center h. | 4.4400 in, 112.776 mm |
| Case size | 40 |
| Center distance (in) | 4 in, Center distance (. |
| Center to end of shaft . | 8.1200 in, 206.248 mm |
| Finish | Green |
| Gearbox component type | Gearbox |
| Horsepower rating input | 4.4300 hp, 3.303 kW |
| Horsepower rating output | 3.3300 hp, 2.483 kW |
| Housing material | Cast iron |
| Input | 140TC flange |
| Input flange | 140TC |
| Input HP | 4.43 |
| Input style | 3-Piece coupled |
| Lubrication type | PAG, standard temperatu. |
| Material | Class 30 grey iron |
| Max RPM | 44 rpm |
| Motor compatibility | NEMA motor, 140TC frame |
| Mounting bolt pattern l. | 8.5000 in, 215.9 mm |
| Mounting bolt pattern w. | 5.0000 in, 127.0 mm |
| Nominal ratio | 40 |
| Output | Left side solid output . |
| Output bore/shaft diame. | 1.875 in |
| Output horse power | 3.33 |
| Output shaft | Left (solid A) |
| Output shaft center to . | 11.6800 in, 296.672 mm |
| Output style | Left |
| Overhung load | 4300 lbf, 19127.353 N |
| Paint type | Standard |
| Paint/coating | Green |
| Rated torque output | 4800 in/lb, 4800.0 in/lb |
| Ratio | 40 to 1 |
| Seal type | Single-lip contact |
| Shaft diameter output | 1.8750 in, 47.625 mm |
| Shaft length output | 3.7600 in, 95.504 mm |
| Suitable for washdown | No |
| Thermal horsepower rati. | 4.5000 hp, 3.356 kW |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 151862 | 3502.76 | 1 | In Stock | | Dodge | | 3502.76 @ 1 |
 | Walker Industrial | 40A40L14 | 3502.76 | 1 | In Stock | 17 | Dodge | | 3502.76 @ 1 |
 | Purvis | 40A40L14 | 3792.16 | 1 | In Stock | | Dodge | | 3792.16 @ 1 |
| factorysupplyoutlet.com | OH81HJ | 4382.81 | 1 | In Stock | 25 | DODGE | | 4382.81 @ 1 |
