Leeson Electric 141146.00

B0773RBDP3

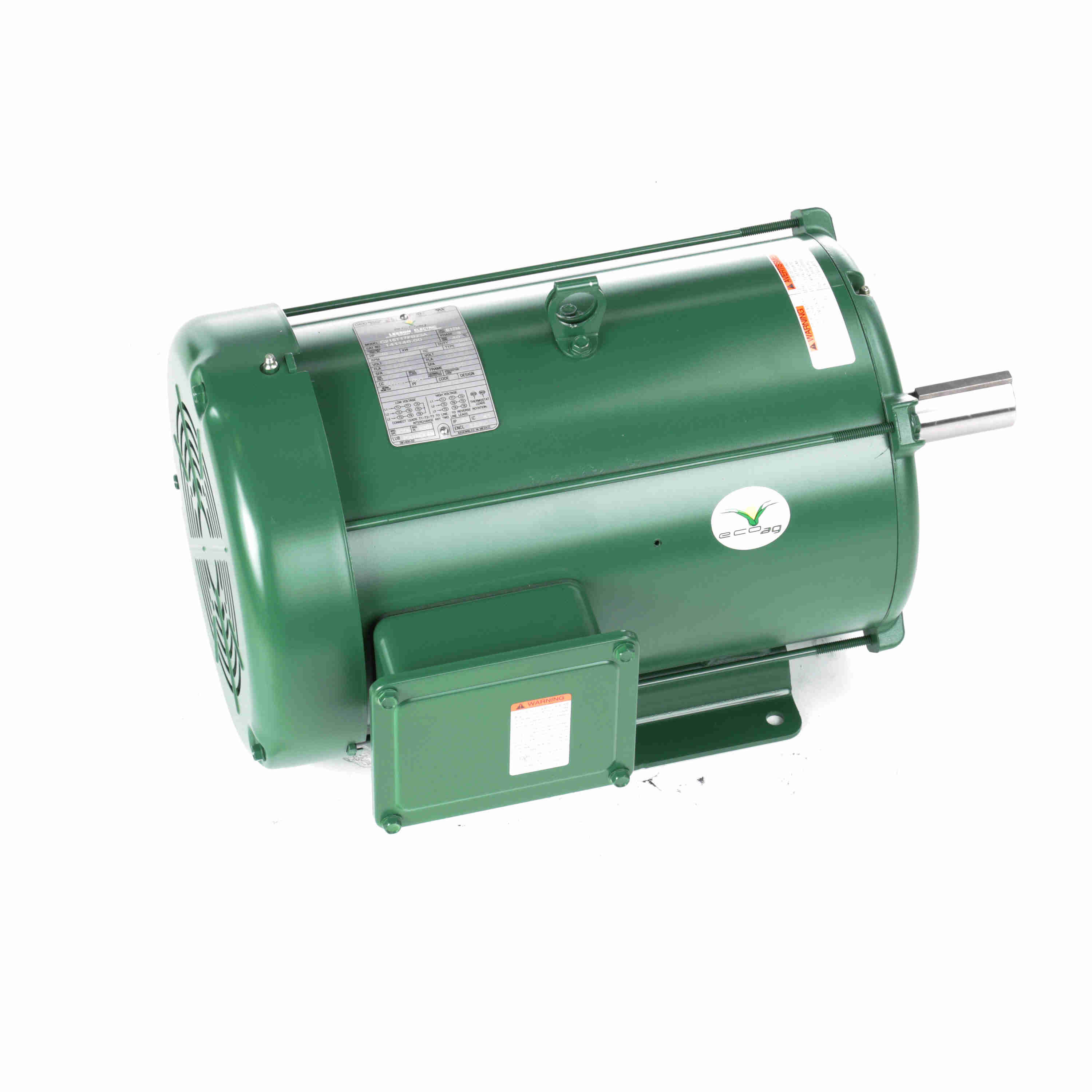

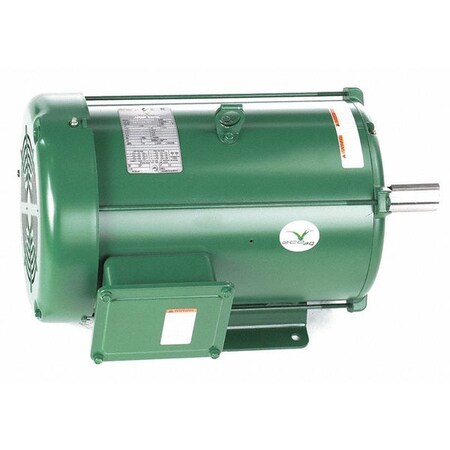

Leeson Electric, 141146.00, 10HP, 1765RPM, 3PH, 208V;230V;460V, 215T Frame, Standard Flange, Foot Mount, TEFC, Farm Duty Motor

Leeson Electric, 141146.00, 10HP, 1765RPM, 3PH, 208V;230V;460V, 215T Frame, Standard Flange, Foot Mount, TEFC, Farm Duty Motorzoom

Attributes

Key Value
Alternate Mfr Part Numb.141146.00
Amperage Rating26.8/13.4 A
Application TypeFarm Duty Motors
Bearing TypeBall
CategoryElectric Motor
Country of Origin (subj.Mexico
Current Rating26.8 ; 13.4 A
Description:..10HP..1800RPM.215T.TE.
Dimensions19.7 in L x 11.77 in H
DutyContinuous
Duty CycleContinuous
Efficiency91.7 %
EnclosureTEFC, Totally Enclosed .
Enclosure TypeTotally Enclosed Fan Co.
Family SeriesLeeson Motors
FinishEnamel
Frame215T
Frame MaterialRolled Steel
Frame RemarksFarm Duty
Frequency60 Hz
Frequency Rating60 Hz
Full Load Amps26.8/13.4
Full Load Amps @ 50Hz26.8/13.4
Green Certification or .NEMA Premium(R) Rated
Gross Weight0 lbs
Horsepower10 hp
Horsepower Rating10 hp
HP10
Hz60
IncludesGasketed Conduit Box, S.
Ins. ClassF
Insulation ClassClass F
Insulation TypeClass F
ItemGeneral Purpose Farm Du.
Item - Farm Duty MotorsGeneral Purpose Farm Du.
Item ConditionFACTORY NEW
Item Number141146.00
Length Less Shaft16 5/16 in
ManufacturerLEESON ELECTRIC CORPORA.
Manufacturer Part Number141146.00
Manufacturers Warranty .1 yr
MaterialRolled Steel
Max. Ambient Temp.40 Degrees C
Max. Ambient Temperature40 Degrees C
MFG Part #:141146.00
Motor ApplicationFarm Duty
Motor BearingsBall
Motor Design3-Phase
Motor Efficiency GroupNEMA Premium Efficient
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialSteel
Motor Mounting PositionHorizontal
Motor Mounting TypeRigid Base
Motor Service Factor1.25
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Sub ApplicationGeneral Purpose Farm
Motor Thermal ProtectionT-Stat
mountingRigid Base
Mounting TypeRigid Base
Nameplate RPM1,765
Net Weight161 lbs
No. of Speeds1
Nominal Efficiency91.7 %
Nominal Voltage240 VAC, 480 VAC
Number of Speeds1
Overall Length19 11/16 in
Phase3, Three, 3 ph, 3 Phase
RotationReversible
RPM1,800 RPM, 1765 rpm, 18.
RPM Range1,701-1,800
Service Factor1.25
Shaft Dia.1 3/8 in
Shaft Length3 3/8 in
Shaft Size1.38 in Dia x 3.38 in L
Special FeaturesService Factor - 1.25
Speed1765 rpm
StandardsUL Recognized, CSA (LR2.
Supplier:LEESON ELECTRIC CORPORA.
Supply Voltage230 VAC ; 460 VAC
TypeSquirrel Cage Induction.
UPC Code691720003435
UPC:691720003435
Usable @ 200VNo
Usable @ 208VNo
Voltage230/460V AC
Voltage (AC)230 VAC, 460 VAC
Voltage Compatibility200-230/440V AC, 200-23.
Volts230/460
Weight176 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com141146885.01In StockLEESON885.0 @ 1
AmazonTPB0773RBDP31053.741In Stock3Leeson Electric1053.74 @ 1
kscdirect.comLEE 141146.001137.841In StockLEESON ELECTRIC CORPORATION1137.84 @ 1
thumbzoomGalco141146.00-LEES1216.491In StockLeeson161.01216.49 @ 1
us.rs-online.com722373831342.9611Leeson1342.96 @ 1
thumbzoomZoroG46085061356.441In Stock25Leeson182.01356.44 @ 1
thumbzoomDealers Electric141146.001375.961In StockLeeson176.01375.96 @ 1
thumbzoomWalker Industrial141146-001457.91In Stock17Leeson1457.9 @ 1
thumbzoomRaptor SuppliesAJ2TBN2080.38279151In StockLEESON2080.3827915 @ 1
