- mpnPV10-14F-D
- brandname: Panduit
- manufacturername: Panduit

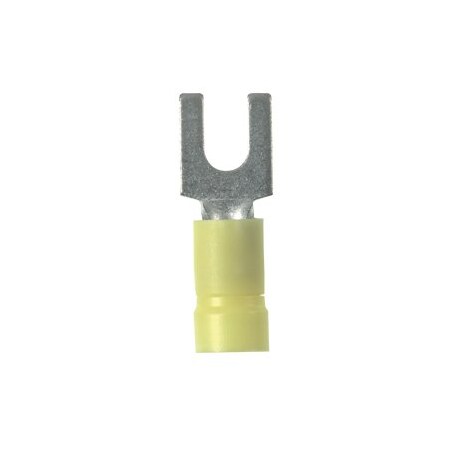

Panduit PV10-14F-D Fork Terminal, Funnel Entry, 14 - 10 AWG, 1/4" Stud Size, Vinyl Insulated, 500 Count
- Brand: Panduit
- PartNumber: PV10-14F-D
- Model: PV10-14F-D
- Size: 500-Pack
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Alternate Part No. | 644-PV10-14F-D |
| Approvals | CSA, UL |
| AWG Range | #10 |
| Base Product Number | PV10 |
| Brand | Pan-Term?, Panduit |
| Category | Connectors, Interconnec. |
| Color | Yellow |
| Color Family | Yellow |
| connector gender | - |
| Contact Finish | Tin |
| Contact Material | Copper |
| Country of Origin | MX - Mexico |
| Country of Origin (subj. | Mexico |
| ECCN | EAR99 |
| Family Series | Panduit Terminals, Pan-. |
| Features | Brazed Seam |
| Finish | Tin-Plated |
| Gross Weight | 2.75 lbs |
| Insulated | Insulated |
| Insulation | Insulated |
| Insulation Diameter | 0.225" (5.72mm) |
| Insulation Material | Vinyl |
| Item Number | PV10-14F-D |
| item per pack | 1 |
| Length | 0.92 in |
| Length - Overall | 1.140" (28.96mm) |
| Length - Ring Center to. | - |
| Length - Termination | - |
| Manufacturer | Panduit |
| Manufacturer Part No. | PV10-14F-D |
| Manufacturer Part Number | PV10-14F-D |
| Material | Copper |
| Material - Insulation | Vinyl |
| Max Temp | 221 ?F |
| Mfr | Panduit Corp |
| mounting type | inline |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0 lbs |
| number of contacts | 1 |
| Outer Diameter | 0.23 in. |
| Package | Bulk |
| package | Bulk |
| Package Quantity | 500 |
| Plating Material | Tin |
| Product | Fork Terminals |
| Product Category | Terminals |
| Product Series | Pan-Term Terminals |
| Product Status | Active |
| Rated Voltage | 600V |
| RoHS Compliant | Yes |
| Series | Pan-Term?, PV |
| Stud Size | 1/4 in. |
| Stud/Tab Size | 1/4 Stud, 1/4 in |
| Terminal Material | Copper |
| Terminal Type | Spade/Fork, Standard |
| Termination | Crimp |
| Termination Style | Crimp |
| Tongue Inside Opening | 0.260" (6.60mm) |
| Unit Weight | 1.197 kg |
| UNSPSC | 39121409 |
| Use With | CT-100, CT-1550, CT-155. |
| Volts | 600 V |
| Width | 0.49 in. |
| Width - Outer Edges | 0.490" (12.45mm) |
| Wire Gauge | 12-10, 10-12 AWG |
| Wire Size | 12-10 AWG |
| Wire Size (AWG) | 10 AWG, 11 AWG, 12 AWG |
| Wire Strip Length | 0.313 " |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Onlinecomponents.com | PV10-14F-D | 0.252 | 1 | 546 | | PANDUIT | | 0.252 @ 500 |
| Hotenda | H1694784 | 0.32304 | 1 | 500 | | Panduit | | 0.32304 @ 500 |
| Verical | PV10-14F-D | 0.325 | 242 | 500 | | Panduit | | 0.325 @ 500 |
| Heilind Electronics | PV10-14F-D | 0.35552 | 7 | 500 | | PANDUIT | | 0.35552 @ 500 |
 | Galco | PV10-14F-D-PNDT | 0.4 | 500 | 500 | | Panduit | 2.75 | 0.4 @ 500 |
| us.rs-online.com | 72260276 | 0.44978 | 500 | 500 | | Panduit | | 0.44978 @ 500 |
| Mouser | 644-PV10-14F-D | 0.477 | 1 | 500 | | Panduit | | 0.477 @ 500 |
 | Platt.com | 0615955 | 0.48 | 1 | 500 | | Panduit | | 0.48 @ 500 |
| Airline Hydraulics | PANDUIT PV10-14F-D | 0.49 | 1 | 500 | | Panduit Corp | | 0.49 @ 500 |
| Digi-Key | 452041 | 0.52788 | 1 | 1792 | | Panduit Corp | | 0.52788 @ 500 |
 | Newark | 48AC9884 | 0.565 | 500 | 500 | | PANDUIT | | 0.565 @ 500 |
 | swatee.com | PV10-14F-D | 0.65 | 1 | 500 | | Panduit | | 0.65 @ 500 |
 | Tedss | 2025007434 | 1.46 | 7 | 500 | | PANDUIT | | 1.46 @ 500 |
 | alldataresource.com | PAN-PV10-14FD | 195.4 | 1 | 500 | | Panduit | | 195.4 @ 500 |
 | Carlton Bates Company | 07498380417 | 200.0 | 1 | 500 | | PANDUIT | | 200.0 @ 500 |
 | gordonelectricsupply.com | PV10-14F-D | 213.0 | 1 | 500 | 12 | PANDUIT | | 213.0 @ 500 |
 | Zoro | G2774846 | 226.67 | 1 | 500 | 106 | Panduit | | 226.67 @ 500 |
 | turtle.com | PAN PV10-14F-D | 475.58 | 1 | 500 | | Panduit | | 475.58 @ 500 |
| Graybar | 88200597 | 531.888 | 500 | 500 | | Panduit | | 531.888 @ 500 |
