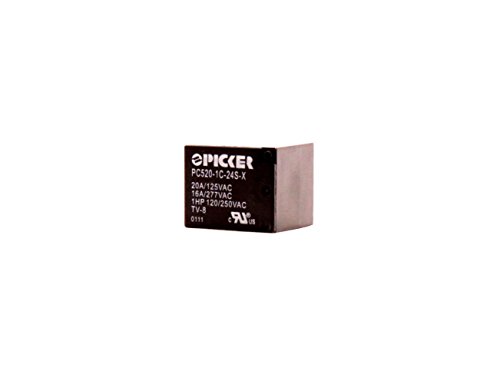

PICKER PC520-1C-24S-X

B074XDR1XQ

PC520-1C-24S-X | SPDT 24V Coil 20 Amp 125 VAC UL Rated, Subminiature Sealed PCB Sugar Cube Power Relay | Cross: Song Chuan 207-1CH-F-S-24VDC; Omron G5LE-14-CF-G-36-DC24 & G5LA-1-4-CF-DC24

PC520-1C-24S-X | SPDT 24V Coil 20 Amp 125 VAC UL Rated, Subminiature Sealed PCB Sugar Cube Power Relay | Cross: Song Chuan 207-1CH-F-S-24VDC; Omron G5LE-14-CF-G-36-DC24 & G5LA-1-4-CF-DC24zoom

Attributes

Key Value
CategoryRelays
Coil Current15 mA
Coil InsulationClass F
Coil Resistance1.6 kOhms
Coil TypeNon Latching
Coil Voltage24VDC
Contact FormSPDT (1 Form C)
Contact MaterialSilver Cadmium Oxide (A.
Contact Rating (Current)20 A
Features-
MfrPicker Components
Mounting TypeThrough Hole
Must Operate Voltage18 VDC
Must Release Voltage2.4 VDC
Operate Time15 ms
Operating Temperature-40?C ~ 105?C
PackageTube
Product StatusActive
Relay TypeGeneral Purpose
Release Time10 ms
Seal RatingSealed - Fully
Series-
Switching Voltage250VAC - Max
Termination StylePC Pin

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Digi-Key123528351.62161Picker Components1.62 @ 1
