Sealmaster SFT-31

B006MICI8G

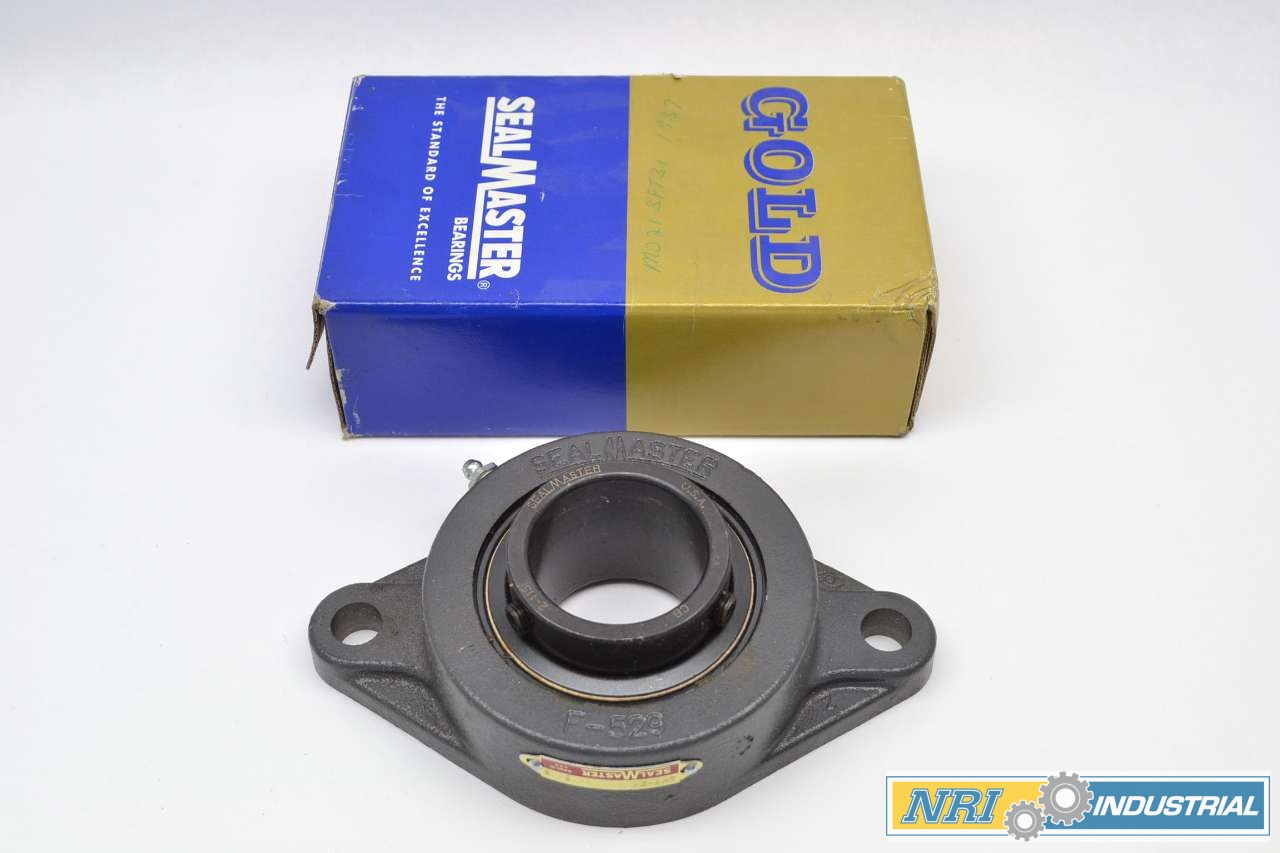

Sealmaster SFT-31 Standard Duty Flange Cartridge Unit, 2 Bolt, Regreasable, Felt Seals, Setscrew Locking Collar, Cast Iron Housing, 1-15/16" Bore, 7-7/16" Overall Length, 6-3/16" Bolt Hole Spacing Width, 9/16" Flange Height, ?2 Degrees Misalignment Angle

Sealmaster SFT-31 Standard Duty Flange Cartridge Unit, 2 Bolt, Regreasable, Felt Seals, Setscrew Locking Collar, Cast Iron Housing, 1-15/16" Bore, 7-7/16" Overall Length, 6-3/16" Bolt Hole Spacing Width, 9/16" Flange Height, ?2 Degrees Misalignment Anglezoom

Attributes

Key Value
Back Side to Center Wid.0.859 in
Bearing Insert TypeBall
Bearing TypeTwo Bolt Flange
Bolt Size9/16 in
Bore Dia.1 15/16 in
Bore Diameter1 15/16 in
Dimension A7 7/16 in
Dimension B6 3/16 in
Dimension C9/16 in
Dimension D1 9/16 in
Dimension E2 5/32 in
Dimension F19/32 in
Dimension G9/16 in
Dimension H4 in
Dimension J4 9/16 in
Dimension L2 15/32 in
Dimension M1 9/32 in
Dimension N3/4 in
Duty SeriesStandard
Estimated Weight5.15
Family SeriesSealmaster Bearings, SF.
Gross Weight0 lbs
Housing MaterialCast Iron
Insert Material52100 Steel/Black Oxide.
Item NumberSFT-31
Locking DeviceSetscrew, Set Screw
ManufacturerSealmaster
Manufacturer Part Number700559
Mount Hole Center-to-Ce.6 3/16 in
Mount Hole Center-to-Ce.6 3/16 in
Mount Hole Size5/8 in
Mounting Bolt Size1/2 in
Net Weight0.3219 lbs
Overall Height4 9/16 in
Overall Length7 7/16 in
Overall Width2 5/32 in
Part NumberSFT-31
Product SeriesSFT
Seal TypeStandard Felt Seal
Shaft Diameter (in)1.9375 ", 1.9375
Shaft Range1.5-1.99
TypeTwo Bolt Flange
UPC Code662461004449

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNRI IndustrialB44677681.461In StockSEALMASTER81.46 @ 1
thumbzoomRadwellSFT-31188.512SEALMASTER4.95188.5 @ 1
thumbzoomapexindustrialautomation.comSFT-31191.571In StockSealmaster191.57 @ 1
thumbzoomGalcoSFT-31-SMST191.571In StockSealmaster0.3219191.57 @ 1
thumbzoommotorsandcontrol.comSFT-31191.571In StockSealmaster5.15191.57 @ 1
us.rs-online.com72115636205.661In StockSealmaster205.66 @ 1
thumbzoomPurvisSFT-31223.721In StockSealmaster223.72 @ 1
thumbzoomZoroG8988043246.991In StockSealmaster5.4246.99 @ 1
motionindustries.com00564548297.91In StockSealmaster297.9 @ 1
