SIEMENS 5SY61106

mpn5SY61106
brandname: Siemens
manufacturername: Siemens

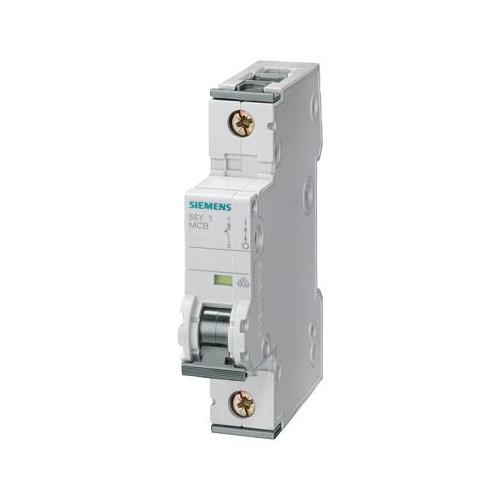

Siemens 5SY61106 Supplementary Protector, UL 1077 Rated, 1 Pole Breaker, 10 Ampere Maximum, Tripping Characteristic B, DIN Rail Mounted

Siemens 5SY61106 Supplementary Protector, UL 1077 Rated, 1 Pole Breaker, 10 Ampere Maximum, Tripping Characteristic B, DIN Rail Mounted

zoom

Brand: SIEMENS
PartNumber: 5SY61106
Model: 5SY61106
PackageQuantity: 1
Binding: Misc.
Manufacturer: Siemens
Label: Siemens

Attributes

Key	Value
AC Voltage Rating	230/400V AC
Actuator Type	Toggle
Alternate Mfr Part Numb.	5SY6110-6
Amperage Rating	10
Amps	10, 10 A
Application	Industrial
Circuit Breaker Actuator	Toggle
Circuit Breaker Mountin.	DIN Rail
Connection type	Line/Load Side/Screw
Country of Origin	Germany
Country of Origin (subj.	Germany
Current Rating	10 A
Curve Type	B
DC Voltage Rating	Not Rated
Depth	3.01 in
Dimensions	90 mm H x 18 mm W x 70 .
Enclosure Type	IP20
Estimated Weight	1.00
Frame	5SY6
Frequency Rating	50
Interrupt Rating	6
Item	IEC Supplementary Prote.
Item?	30XX94
kA Rating	6
Length	3.53 in
Length (Straight Wirewa.	3.53 in
Manufacturer	Siemens
Max. AIR Rating	5kA at 230/400V AC
Max. Wire Size	4 AWG
Meets UL Type	UL 1077
Mfr. Model?	5SY61106
Min. Wire Size	14 AWG
Mounting	DIN Rail
Mounting type	DIN Rail
Mounting Type	DIN Rail Mount
Number of Poles	1
Part Number	5SY61106
Phase	1
Poles	1
Series	5SY Series, 5SY6
Standards	CSA 22.2, EN 60898-1/-2.
Temperature Rating (Deg.	-25 to 45
Terminal Connection	Screw Clamp
Trip Curve	B
Trip Range	11.3 to 14.5
Trip Type	Thermal Magnetic, Therm.
Type	Miniature, Thermal/Magn.
UL Rating	UL 1077
UNSPSC	39121601
UPC Code	754554957760
Voltage	277VAC
Voltage Rating	480
Width	0.69 in
Wire Size	14 to 4

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	standardelectricsupply.com	2227815	25.33	1	40		Siemens		25.33 @ 1
	motorsandcontrol.com	5SY6110-6	32.21	1	In Stock		Siemens	1.0	32.21 @ 1
	sustainablesupply.com	C1186504	37.29	1	In Stock		Siemens	0.35	37.29 @ 1
	Zoro	G7485807	38.18	1	In Stock		Siemens		38.18 @ 1
	us.rs-online.com	70384804	44.0	1	145		Siemens		44.0 @ 1
	Grainger	30XX94	55.6	1	In Stock		SIEMENS		55.6 @ 1
