TE Connectivity 5536514-4

B00KSS3ZRE

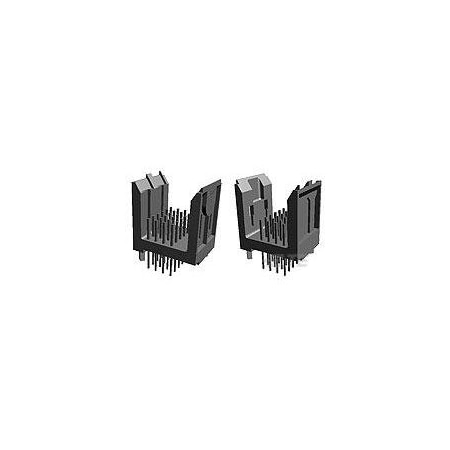

TE Connectivity Part Number 5536514-4

TE Connectivity Part Number 5536514-4zoom

Attributes

Key Value
ApplicationSignal
Base Product Number5536514
CategoryConnectors, Interconnec.
Color-
Connection MaterialPhosphor Bronze
Connector StyleFuturebus
Connector Terminates ToPrinted Circuit Board
Connector TypeHeader, Male Pins
Connector Usage-
Contact FinishGold Plated, Gold
Contact Finish Thickness-
Contact Layout, Typical-
Contact Plating Thickne.0.76 ?m
Contact TypePin
Current Rating3 A
Current Rating (Amps)-
DescriptionCONN HEADER FUTUREBUS 1.
Detailed Description192 Connector Header, M.
Digi-Key Part NumberA115448-ND
Features-
For Use WithReceptacle Assembly
Height17 mm
Hole Center to Center2 mm
ItemPCB Mount Header
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.5536514-4
Manufacturer Standard L.22 Weeks
MaterialLiquid Crystal Polymer
Material Flammability R.UL94 V-0
Max. Temp.125?C
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole
Number of Columns-
Number of Contacts192
Number of Positions192
Number of Positions Loa.All
Number of Rows4
Operating Temperature-55?C ~ 125?C
PackageTube
Package Quantity1
Pitch0.079" (2.00mm)
Product StatusActive
SeriesZ-PACK, Signal
Terminal FinishTin Plated
Terminal TypeThrough Hole - Press-Fit
TerminationPress-Fit
Voltage Rating30V
Width0.622 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Future Electronics909149320.988360In StockTE Connectivity20.988 @ 360
WaldomTE CONNECTIVITY 5536514-421.24360In StockTE Connectivity21.24 @ 360
Newark96Y278123.626In StockAMP - TE CONNECTIVITY23.62 @ 6
thumbzoomDigi-Key227031329.6569433333360In StockTE Connectivity AMP Connectors29.6569433333 @ 360
us.rs-online.com7213571334.79360In StockTE Connectivity34.79 @ 360
thumbzoomComponent Electronics299-748638.46146Tyco Electronics38.46 @ 1
Onlinecomponents.com5536514-451.61344TE Connectivity / AMP Brand51.6 @ 1
thumbzoomZoroG10093944311682.01In StockTe Connectivity11682.0 @ 1
